WF70-800480D3P#001-FC

Immagine di WF70-800480D3P#001-FC Immagine di WF70-800480D3P#001-FC
TFT 7" 800x480, LCD + IC Controller, Interface MCU (Parallel), IC SSD1963 (8/16bit), 250cd/m², Resistive Touch Panel

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD  module, It is usually designed for industrial application and this module follows RoHs.



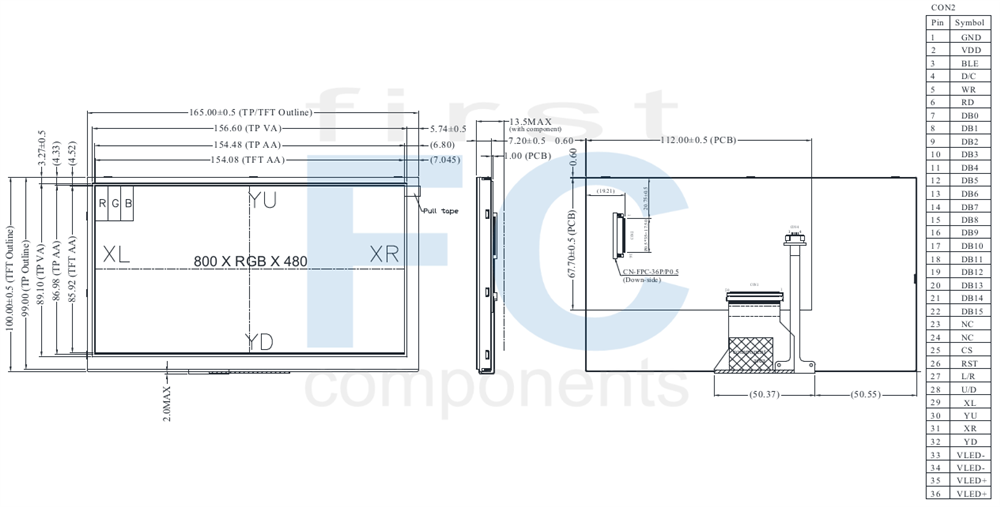

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480 (TFT) dots
Module dimension 165.0 x 100.0 x 13.5 mm
Active area 154.08 x 85.92 mm
Pixel Pitch 0.1926 x 0.179 mm
LCD type TFT, Normally White, Transmissive
Controller IC SSD1963
TFT Interface Digital 8080 family MPU 8bit/16bit
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Color arrangement RGB-Stripe
With/Without TP With RTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD - 140 210 mA



Interface

PinSymbolFunction
1 GND System ground pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal, H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits Mode, this pin is NC)
16 DB9 Data bus (When select 8bits Mode, this pin is NC)
17 DB10 Data bus (When select 8bits Mode, this pin is NC)
18 DB11 Data bus (When select 8bits Mode, this pin is NC)
19 DB12 Data bus (When select 8bits Mode, this pin is NC)
20 DB13 Data bus (When select 8bits Mode, this pin is NC)
21 DB14 Data bus (When select 8bits Mode, this pin is NC)
22 DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RST Hardware reset (RESET)
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33 VLED- Power for LED Driver IC(GND)
34 VLED- Power for LED Driver IC(GND)
35 VLED+ Power for LED Driver IC(+5V)
36 VLED+ Power for LED Driver IC(+5V)







SKU: WF70-800480D3P#001-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€56,00
€50,40
€42,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€56,00 IVA esclusa
