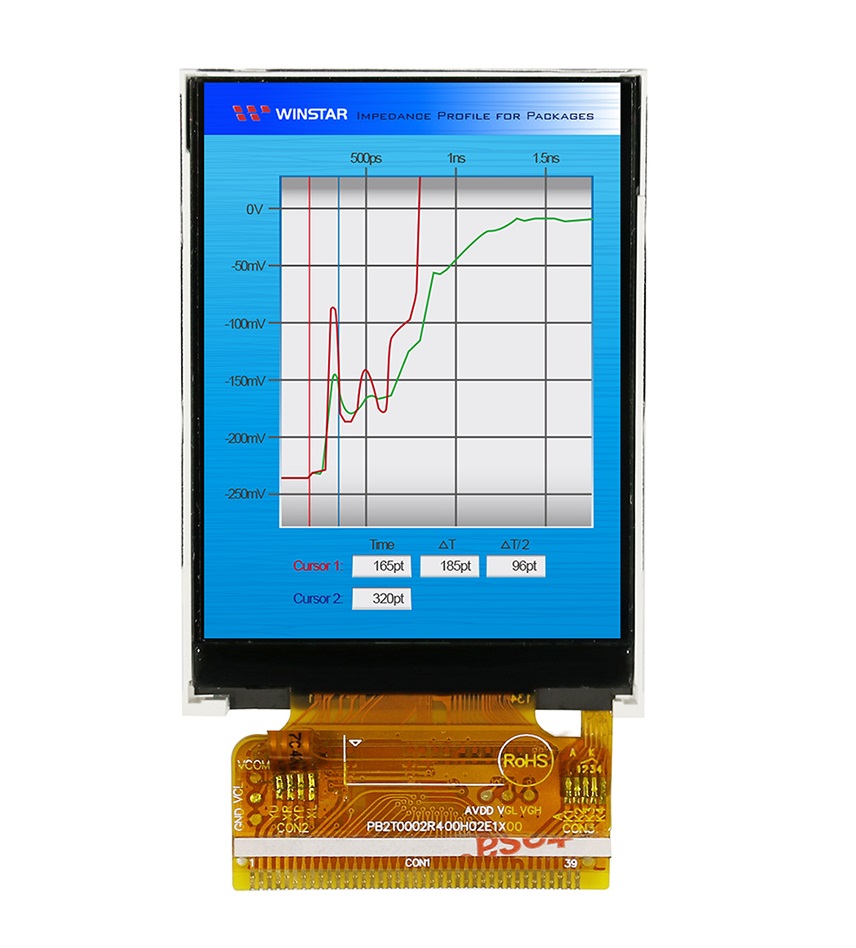

WF24-240320HD#000-FC

TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (Parallel) IC ILI9341, 500cd/m², No touch

DESCRIPTION



2.4 inch diagonal full color 240x320 TFT LCD display module. This 2.4 inch TFT LCD module is built in with ILI9341V IC; it supports 8/16-bit 8080-series Parallel MCU Interface. Module dimension of 42.72 x 60.26 mm and Active area size of 36.72 x 48.96 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.4V to 3.3V.

This 2.4” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2.4" LCD module is featured with brightness up to 500 cd/m2(typical value). Operating at temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 GND Ground P
2-5 NC No connect -
6 LCD_ID No connect -
7 VCC power supply(TYP:2.8V). P
8 IOVCC power supply(TYP:1.8V/2.8V). P
9 FMARK Synchronies MCU to frame rate I
10 CS Chip select signal. I
11 RS register select I
12 WR Write data when WRX is Low. I
13 RD Read strobe signal. Read out data when RDX is Low. I
14-29 DB0- DB15 Data bus I/O
30 RESET System reset pin. I
31 IM0 Data interface select
IM0= IOVCC    16Bit  DB0-DB15
IM0= GND      8Bit   DB8-DB15		 I
32 NC No connect -
33 GND Ground P
34-37 LEDK1-K4 Cathode of LED backlight. P
38 LEDA Anode of LED backlight. P
39 GND Ground P



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.051 × 0.153 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCC － 2.4   3.3 V
Supply Voltage For Logic VCCIO   1.65   3.3 V
Supply Current For LCM ICC － － 5 7.5 mA


SKU: WF24-240320HD#000-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.70
€9.30
€7.90
€7.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€12.70 excl tax

DESCRIPTION



2.4 inch diagonal full color 240x320 TFT LCD display module. This 2.4 inch TFT LCD module is built in with ILI9341V IC; it supports 8/16-bit 8080-series Parallel MCU Interface. Module dimension of 42.72 x 60.26 mm and Active area size of 36.72 x 48.96 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.4V to 3.3V.

This 2.4” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2.4" LCD module is featured with brightness up to 500 cd/m2(typical value). Operating at temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1 GND Ground P
2-5 NC No connect -
6 LCD_ID No connect -
7 VCC power supply(TYP:2.8V). P
8 IOVCC power supply(TYP:1.8V/2.8V). P
9 FMARK Synchronies MCU to frame rate I
10 CS Chip select signal. I
11 RS register select I
12 WR Write data when WRX is Low. I
13 RD Read strobe signal. Read out data when RDX is Low. I
14-29 DB0- DB15 Data bus I/O
30 RESET System reset pin. I
31 IM0 Data interface select
IM0= IOVCC    16Bit  DB0-DB15
IM0= GND      8Bit   DB8-DB15		 I
32 NC No connect -
33 GND Ground P
34-37 LEDK1-K4 Cathode of LED backlight. P
38 LEDA Anode of LED backlight. P
39 GND Ground P



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.051 × 0.153 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCC － 2.4   3.3 V
Supply Voltage For Logic VCCIO   1.65   3.3 V
Supply Current For LCM ICC － － 5 7.5 mA


Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel)
Display IC ILI9341
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 39
Pin Pitch -
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel)
Display IC ILI9341
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 39
Pin Pitch -
Preferred - Not Preferred Preferred
