WF24-240320MS#000-FC

Picture of WF24-240320MS#000-FC Picture of WF24-240320MS#000-FC
TFT 2.4'' 240x320, Portrait, LCD + IC Controller, Interface MCU (SPI) IC ST7789V, 500cd/m², No touch

DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with ST7789V IC; it supports 4-wire SPI interface, supply voltage for analog (VCC) range from 2.5V to 3.0V. This module is having Glare surface panel, View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

TFT-LCD module Portrait mode with brightness 500 nits (typical value). The module also is available for Resistive Touch Screen (RTP) optional. Operating temperatures from -20℃ to +70℃; storage temperature  from -30℃ to +80℃.

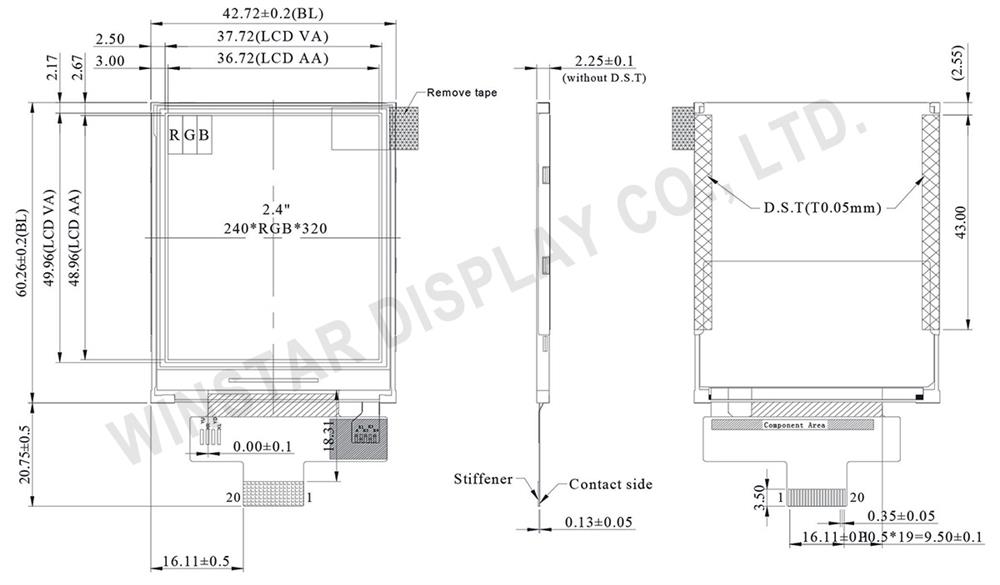

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunction
1 GND Ground
2 VLED+ Anode of LED backlight.
3 VLED- Cathode of LED backlight.
4 GND Ground
5 VCC Power supply
6 RESET System reset pin. (RESX) signal is active low
7 SDA When IM3: Low, SPI interface input/output pin. When IM3: High, SPI interface input pin. The data is latched on the rising edge of the SCL signal. If not used, please fix this pin at VDDI or DGND level.
8 DCX(SCL) This pin is used to be serial interface clock. DCX=’1’: display data or parameter. DCX=’0’: command data. If not used, please fix this pin at VDDI or DGND.
9 CSX Chip selection pin Low enable. High disable.
10 WRX(D/CX) Display data/command selection pin in 4-line serial interface. Second Data lane in 2 data lane serial interface. If not used, please fix this pin at VDDI or DGND.
11 GND Ground
12 SDO(DOUT) SPI interface output pin. The data is output on the falling edge of the SCL signal. If not used, let this pin open.
13 TE Tearing effect signal is used to synchronize MCU to frame memory writing. If not used, please let this pin open
14 IM3 The MCU interface mode select.
IM3IM2IM1IM0MPU Interface ModeData pin
0 1 1 0 4-line 8bit serial I/F SDA: in/out
1 1 1 0 4-line 8bit serial I/F II SDA: in/SDO: out
15 GND Ground
16-19 NC No connection
20 GND Ground



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transmissive
Interface SPI
TFT Driver IC ST7789V or Equivalent
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog Vcc － 2.4 3.3 3.6 V
Supply Current For LCM Icc － － 6.4 9.6 mA


SKU: WF24-240320MS#000-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.10
€10.40
€8.90
€8.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.10 excl tax

DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with ST7789V IC; it supports 4-wire SPI interface, supply voltage for analog (VCC) range from 2.5V to 3.0V. This module is having Glare surface panel, View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

TFT-LCD module Portrait mode with brightness 500 nits (typical value). The module also is available for Resistive Touch Screen (RTP) optional. Operating temperatures from -20℃ to +70℃; storage temperature  from -30℃ to +80℃.

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunction
1 GND Ground
2 VLED+ Anode of LED backlight.
3 VLED- Cathode of LED backlight.
4 GND Ground
5 VCC Power supply
6 RESET System reset pin. (RESX) signal is active low
7 SDA When IM3: Low, SPI interface input/output pin. When IM3: High, SPI interface input pin. The data is latched on the rising edge of the SCL signal. If not used, please fix this pin at VDDI or DGND level.
8 DCX(SCL) This pin is used to be serial interface clock. DCX=’1’: display data or parameter. DCX=’0’: command data. If not used, please fix this pin at VDDI or DGND.
9 CSX Chip selection pin Low enable. High disable.
10 WRX(D/CX) Display data/command selection pin in 4-line serial interface. Second Data lane in 2 data lane serial interface. If not used, please fix this pin at VDDI or DGND.
11 GND Ground
12 SDO(DOUT) SPI interface output pin. The data is output on the falling edge of the SCL signal. If not used, let this pin open.
13 TE Tearing effect signal is used to synchronize MCU to frame memory writing. If not used, please let this pin open
14 IM3 The MCU interface mode select.
IM3IM2IM1IM0MPU Interface ModeData pin
0 1 1 0 4-line 8bit serial I/F SDA: in/out
1 1 1 0 4-line 8bit serial I/F II SDA: in/SDO: out
15 GND Ground
16-19 NC No connection
20 GND Ground



General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.25(D) mm
Active area 36.72 × 48.96 mm
Dot pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transmissive
Interface SPI
TFT Driver IC ST7789V or Equivalent
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog Vcc － 2.4 3.3 3.6 V
Supply Current For LCM Icc － － 6.4 9.6 mA


Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (SPI)
Display IC ST7789V
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 20
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (SPI)
Display IC ST7789V
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 20
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
