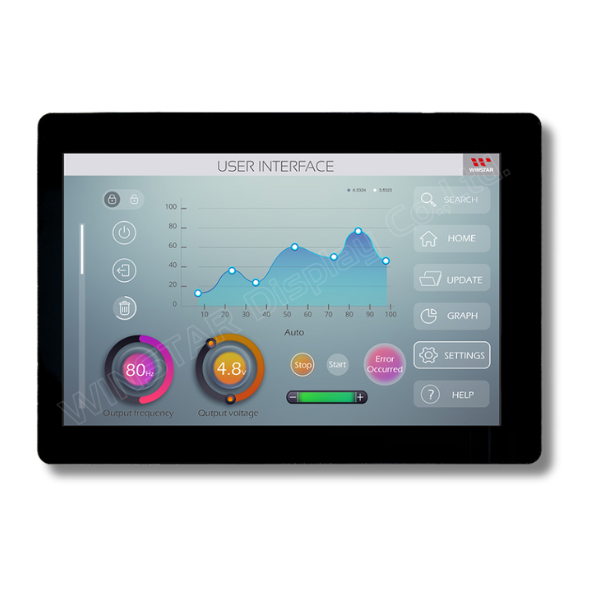

The WF70-12001920C6H#VSP3-FC is a 7-inch full-color TFT LCD display featuring IPS technology for exceptional color accuracy and wide viewing angles. With a 1200x1920 resolution and the ability to display 16.7 million colors, this display offers vibrant, high-quality visuals ideal for industrial control, smart home systems, and medical devices. It supports HDMI connectors (via DVI signal) and integrates a projected capacitive touch panel (PCAP), providing responsive touch functionality for enhanced user interaction.
The display is designed with an active matrix a-Si TFT and uses a transmissive, wide temperature (W.T.) IPS TFT panel for consistent brightness and color performance across a range of viewing angles. With an operating temperature range of -20°C to +70°C, this module is built to perform in demanding environments.
For applications requiring enhanced visibility, the WF70-12001920C6H#VSP3-FC offers an extra-high brightness of 800 cd/m², making it ideal for environments with high ambient light, such as industrial or outdoor settings. For standard brightness requirements, the WF70-12001920C6H#VP3-FC model provides a more moderate brightness of 400 cd/m², making it well-suited for indoor applications where ambient light is controlled.
Key Features:
- Full-Color Display: 16.7 million colors for vibrant and accurate visuals
- IPS Technology: Wide viewing angles (80°/80°/80°/80°) and superior color consistency
- Resolution: 1200x1920 pixels (Full HD) for crisp detail
- Touch Screen: Projected capacitive (PCAP), supports 1 or 2 touch points
- Interface: DVI (HDMI signal supported)
- Brightness:
- 800 cd/m² (WF70-12001920C6H#VSP3-FC) for high ambient light environments
- 400 cd/m² (WF70-12001920C6H#VP3-FC) for controlled light environments
- Operating Temperature: -20°C to +70°C, suitable for industrial and outdoor environments
- Controller IC: LT6911C for efficient, reliable performance
- Backlight: LED, Normally White for enhanced contrast and clarity
Applications:
- Industrial Control Systems: Ideal for HMI applications requiring high-contrast, high-resolution displays.
- Smart Home Devices: Perfect for interactive displays with high color accuracy and responsiveness.
- Medical Equipment: Suitable for high-quality diagnostic displays in medical systems.
- Automotive Displays: Designed for automotive systems needing bright, durable displays.
- Multimedia Systems: Provides vibrant visuals for high-definition media applications.
The WF70-12001920C6H#VSP3-FC is perfect for applications requiring high-resolution, high-brightness displays with responsive touch capabilities, making it an excellent choice for industrial, smart home, and medical systems. For more controlled environments, the WF70-12001920C6H#VP3-FC offers a more standard brightness without compromising visual quality.
