CSFA101-2002A001R1AB-30

Female Header - Straight Contact, Single Row, 20 Pins, Pitch 2mm, Gold Plated (Mating Contact Length: 3-4mm)

Specifications

Current Rating：2.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 500VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

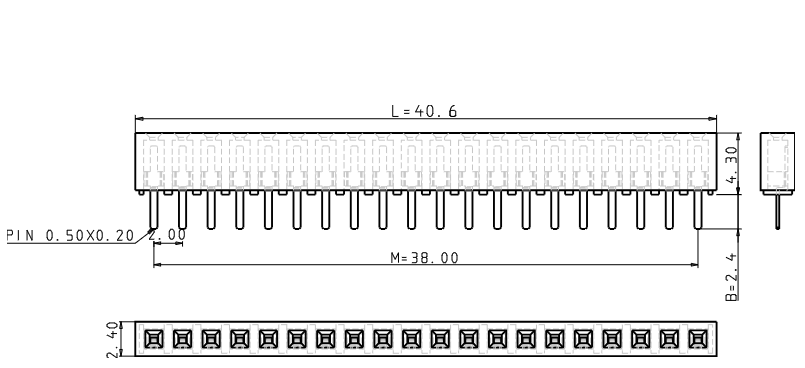

Dimensions

SKU: CSFA101-2002A001R1AB-30

Brand: Greenconn

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

50+

100+

Prezzo

€0,86

€0,74

€0,70

€0,64

€0,59

€0,49

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€0,86 IVA esclusa

Overview
Specifiche
Download
Contattaci

Specifications

Current Rating：2.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 500VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

Dimensions

Specifiche di prodotto
