GPEB101-1802A033C1BA-Q5

Pin Header - R/A Contact, Single Row, 18 Pins, Pitch 1.27mm, Gold Plated (Mating Contact Length: 3,75mm)

Specifications

Current Rating： 1.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Materials

Contact Material：Brass
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP

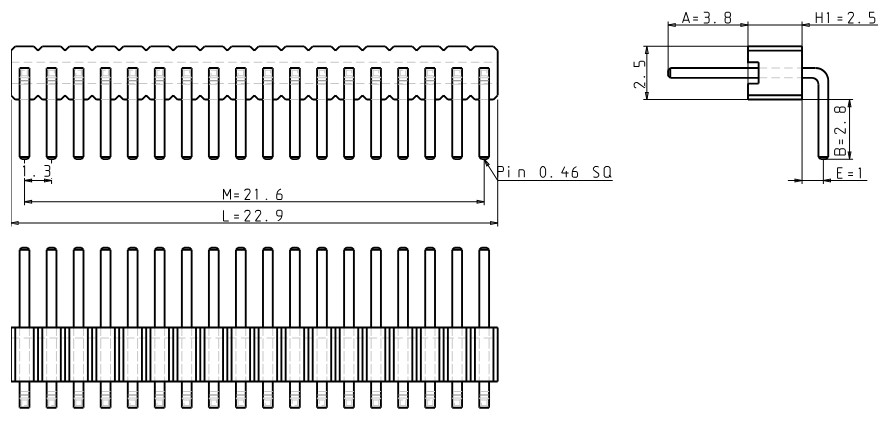

Dimensions

SKU: GPEB101-1802A033C1BA-Q5

Brand: Greenconn

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

50+

100+

Prezzo

€0,65

€0,55

€0,53

€0,48

€0,44

€0,37

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€0,65 IVA esclusa

Overview
Specifiche
Download
Contattaci

Specifications

Current Rating： 1.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC

Materials

Contact Material：Brass
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP

Dimensions

Specifiche di prodotto
