HRA800480T033IHC07

TFT 5" 800x480 with CTP Embedded Display Kit - PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35, Memory DDR3L 2GB, Android/Buildroot OS, Multiple interfaces, WiFI & BT Module

DESCRIPTION

POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.

This Embedded Kit consits of:

1) System on Module (SoM)

2) Multi-interface CARRIER BOARD

3) 5" Industrial grade TFT-LCD High Brightness panel

4) Connection accessories

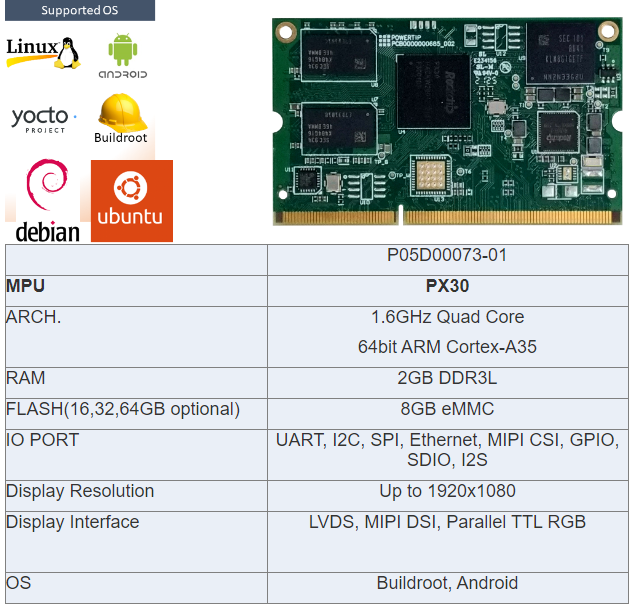

1. SYSTEM ON MODULE - SoM TYPE-1







2. CARRIER BOARD

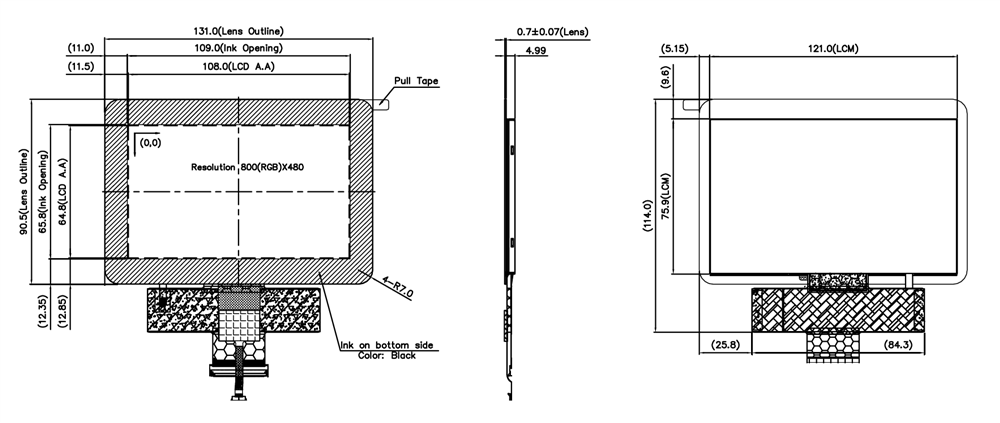

3. TFT-LCD







Contact us at technical@first-components.com to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!

SKU: HRA800480T033IHC07
Brand: Powertip
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€209,40
€202,30
€180,80

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€209,40 IVA esclusa

DESCRIPTION

POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.

This Embedded Kit consits of:

1) System on Module (SoM)

2) Multi-interface CARRIER BOARD

3) 5" Industrial grade TFT-LCD High Brightness panel

4) Connection accessories



1. SYSTEM ON MODULE - SoM TYPE-1







2. CARRIER BOARD









3. TFT-LCD







Contact us at technical@first-components.com to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!

Specifiche di prodotto
Brand Powertip
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
CPU PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35
Sistema Operativo Android / Buildroot
Alimentazione 12V
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
Temperatura O. (°C) -20~70
In the Box SoM TYPE-1 + CARRIER BOARD + TFT Panel + Extension board + 50pin FFC + 6pin FFC
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Powertip
Size 5"
Risoluzione 800x480
Area Attiva (mm) 108.00x64.80
CPU PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35
Sistema Operativo Android / Buildroot
Alimentazione 12V
Sunlight Readable High 601~1200cd/m²
Touch Panel Capacitive
Temperatura O. (°C) -20~70
In the Box SoM TYPE-1 + CARRIER BOARD + TFT Panel + Extension board + 50pin FFC + 6pin FFC
Preferred - Not Preferred Preferred
