IA204827MC-043ABP

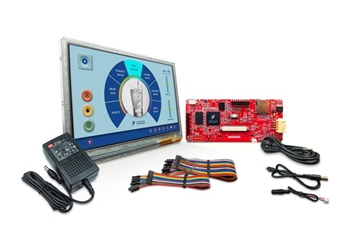

Ubique TFT Panel 4.3'' 480x272 with CTP + ARM Cortex M7-based MCU @480Mhz with 32MB DRAM & ADE Software
  • Working with ADE for delivering illuminating HMI
  • 4.3” 480x272 LCM with Capacitive touch panel (CTP) from Evervision Electronics Co., LTD / Resistive touch panel (RTP) already available on request
  • ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
  • Built-in 2Gb (256MB) Flash memory for storage
  • Support ARGB (16,777,216 colors) with 256 levels of transparency
  • Support LCM backlight control
  • Support GPIO, PWM, Input-Capture and ADC functions
  • Support UART communication interfaces
  • Working with IOT’s extension board (sold separately) to support Ethernet, WiFi, RS-232, RS-485 and audio line-out



HMI Total Solutions that meet functional and aesthetic requirements for every application...

  • Appealing UI Design: creating an amazing HMI is no longer a far-fetched goal
  • Low-Code Development: design an HMI without any traditional computer programming
  • Faster Time-To-Market: fast prototyping & customer feedback can cut the development cycle time and lower the development risks

More information @ the link https://www.first-components.com/en/total-solution-for-your-hmi-with-nv-iot-tfts

No-Code/ Low-Code HMI Development easy-to-learn and easy-to-use / SW ADE for design & deployment:



SKU: IA204827MC-043ABP
Brand: NV-IOT
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€122,10
€115,00
€106,10

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€122,10 IVA esclusa
  • Working with ADE for delivering illuminating HMI
  • 4.3” 480x272 LCM with Capacitive touch panel (CTP) from Evervision Electronics Co., LTD / Resistive touch panel (RTP) already available on request
  • ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
  • Built-in 2Gb (256MB) Flash memory for storage
  • Support ARGB (16,777,216 colors) with 256 levels of transparency
  • Support LCM backlight control
  • Support GPIO, PWM, Input-Capture and ADC functions
  • Support UART communication interfaces
  • Working with IOT’s extension board (sold separately) to support Ethernet, WiFi, RS-232, RS-485 and audio line-out



HMI Total Solutions that meet functional and aesthetic requirements for every application...

  • Appealing UI Design: creating an amazing HMI is no longer a far-fetched goal
  • Low-Code Development: design an HMI without any traditional computer programming
  • Faster Time-To-Market: fast prototyping & customer feedback can cut the development cycle time and lower the development risks

More information @ the link https://www.first-components.com/en/total-solution-for-your-hmi-with-nv-iot-tfts

No-Code/ Low-Code HMI Development easy-to-learn and easy-to-use / SW ADE for design & deployment:



Specifiche di prodotto
Brand NV-IOT
Size 4.3"
Risoluzione 480x272
Colore Full Color
Nr. Colori Support ARGB (16,777,216 colors) with 256 levels of transparency
Sistema Operativo ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
Interfaccia Display UART
Touch Panel Capacitive
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand NV-IOT
Size 4.3"
Risoluzione 480x272
Colore Full Color
Nr. Colori Support ARGB (16,777,216 colors) with 256 levels of transparency
Sistema Operativo ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
Interfaccia Display UART
Touch Panel Capacitive
Preferred - Not Preferred Preferred
