    NG128128GN001ER

    Graphic LCD 2.2" 128x128, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock
    Cod.: NG128128GN001ER

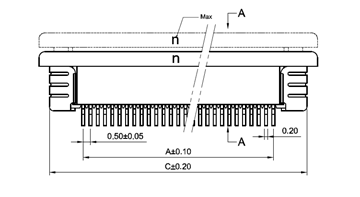

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €15,90
    €14,40
    €13,50
    €13,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €15,90 IVA esclusa
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].





    DRAWING



    5.2 inch 480x128 Bar Type TFT LCD - WF52CTLBSDBN0
    Specifiche di prodotto
    Size 2.2"
    Resolution 128x128
    Active Area (mm) 35.81x42.21
    Dot Size 0.25x0.30
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 3V
    Display Interface 6800/8080/SPI
    Display IC ST7541
    Constructive Structure COG
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 31
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
