NH1602BN002HA

Character LCD 1.37" 16x2, B/L white, FSTN black neg, 6800, COB/SMT, 6H, No touch, Standard Temp., W/ Frame

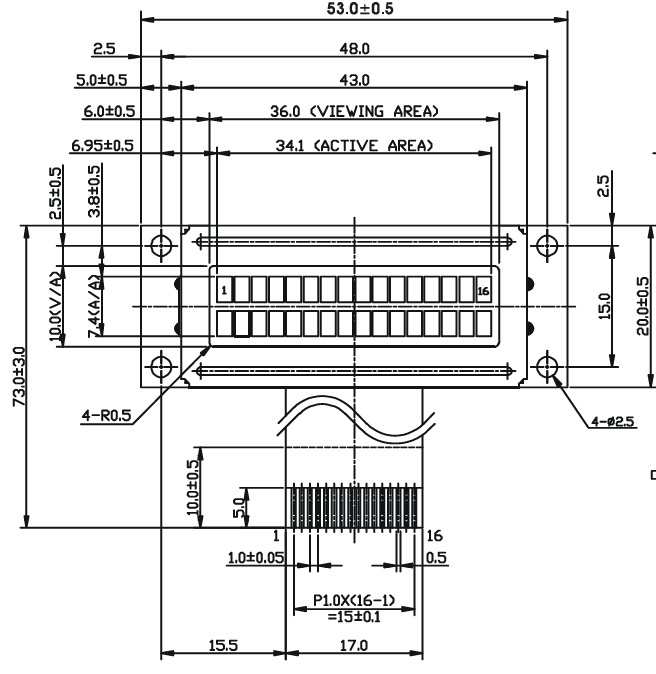

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PIN NO.

SYMBOL

LEVEL

FUNCTION

1

VSS

-

 0V



2

VDD

-

 5V

 Power supply

3

VL

-

 -



4



RS



H/L



H: Data input

L: Instruction data input

5



R/W



H/L



H: Data read

L: Data write

6

E

H,H→L

Enable signal

7

D0

H/L

Data bus

8

D1

H/L

Data bus

9

D2

H/L

Data bus

10

D3

H/L

Data bus

Data bus

11

D4

H/L

12

D5

H/L

Data bus

13

D6

H/L

Data bus

14

D7

H/L

Data bus

15

A



Anode for LED back light

16

K



Cathode for LED back light



SKU: NH1602BN002HA
Disponibile: Si
Kit Accessori
€10,80 IVA esclusa



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PIN NO.

SYMBOL

LEVEL

FUNCTION

1

VSS

-

 0V



2

VDD

-

 5V

 Power supply

3

VL

-

 -



4



RS



H/L



H: Data input

L: Instruction data input

5



R/W



H/L



H: Data read

L: Data write

6

E

H,H→L

Enable signal

7

D0

H/L

Data bus

8

D1

H/L

Data bus

9

D2

H/L

Data bus

10

D3

H/L

Data bus

Data bus

11

D4

H/L

12

D5

H/L

Data bus

13

D6

H/L

Data bus

14

D7

H/L

Data bus

15

A



Anode for LED back light

16

K



Cathode for LED back light



Specifiche di prodotto
Brand Next Vision Display
Size 1.37"
Risoluzione 16x2
Area Attiva (mm) 34.10x7.40
Dot Size 0.33x0.35
Colore B/L, Tipo LCD B/L white, FSTN black neg
Alimentazione 5V
Interfaccia Display 6800
Display IC HD44780
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) 0~50
Connessione Display FFC per ZIF Connector
Nr. Pin 16
Passo Pin 1mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 1.37"
Risoluzione 16x2
Area Attiva (mm) 34.10x7.40
Dot Size 0.33x0.35
Colore B/L, Tipo LCD B/L white, FSTN black neg
Alimentazione 5V
Interfaccia Display 6800
Display IC HD44780
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) 0~50
Connessione Display FFC per ZIF Connector
Nr. Pin 16
Passo Pin 1mm
Preferred - Not Preferred Preferred
