NH1602GN003SG

Character LCD 2.3'' 16x2, Without B/L, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C, 6 O'clock

DESCRIPTION

16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032I controller IC and it supports I2C interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

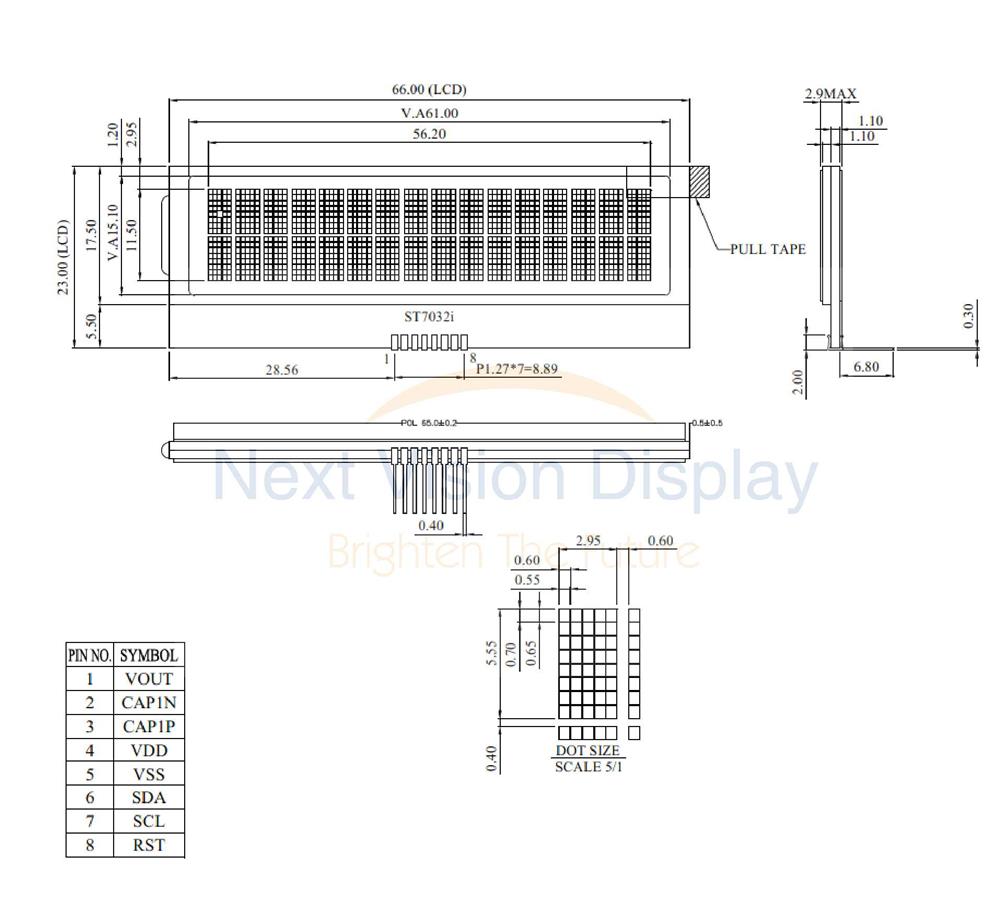

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	Vout	Positive Voltage output
2	CAP1N	DC/DC voltage converter.
3	CAP1P	DC/DC voltage converter.
4	V_DD	Power supply for logic
5	V_SS	Ground
6	SDA	Serial input data
7	SCL	Serial clock input
8	RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	74.2 × 25.2	mm
Viewing Area	61.0 × 15.1	mm
Dot Pitch	0.60 × 0.70	mm
Dot Size	0.55 × 0.65	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

SKU: NH1602GN003SG

Brand: Next Vision Display

Si tratta dela prima recensione per questo prodotto

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	Vout	Positive Voltage output
2	CAP1N	DC/DC voltage converter.
3	CAP1P	DC/DC voltage converter.
4	V_DD	Power supply for logic
5	V_SS	Ground
6	SDA	Serial input data
7	SCL	Serial clock input
8	RST	Controller reset signal, Active Low

Mechanical Data

Item	Standard Value	Unit
Module Dimension	74.2 × 25.2	mm
Viewing Area	61.0 × 15.1	mm
Dot Pitch	0.60 × 0.70	mm
Dot Size	0.55 × 0.65	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

Specifiche di prodotto

Brand	Next Vision Display
Size	2.3"
Risoluzione	16x2
Area Attiva (mm)	56.20x11.50
Dot Size	0.55x0.65
Colore B/L, Tipo LCD	Without B/L, FSTN white pos
Alimentazione	3V
Interfaccia Display	I2C
Display IC	ST7032i
Struttura Costruttiva	COG
Angolo Visione	6H
Frame	No
Temperatura O. (°C)	-20~70
Connessione Display	Pin
Nr. Pin	8
Passo Pin	1.27mm
Preferred - Not Preferred	Not Preferred
