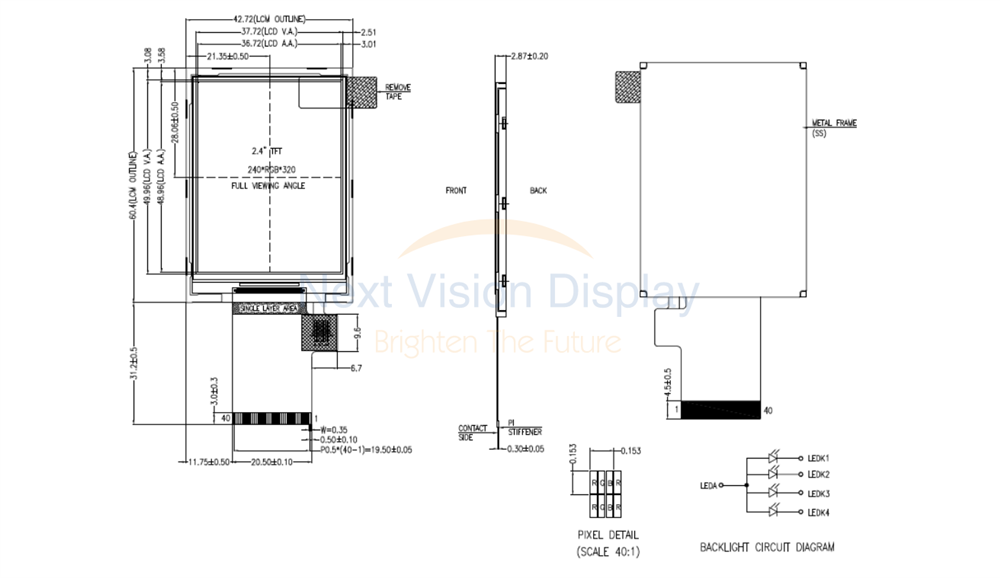

DRAWING

SPECIFICATIONS
General Specifications
| Item | Dimension | Unit |
| Size |
2.4 |
inch |
| Dot Matrix |
240 x RGB x 320(TFT) |
dots |
| Module dimension |
42.72(W) x 60.40(H) x 2.187(D) |
mm |
| Active area |
36.72 x 48.96 |
mm |
| Pixel Pitch |
0.153 x 0.153 |
mm |
| LCD type |
TFT, Normally Black, Transflective |
| TFT Interface |
MCU (Parallel) |
| TFT Driver IC |
ST7789T3 |
| Viewing angle |
IPS |
| Touch Panel |
Without Touch Panel |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For Analog |
VCC |
- |
2.4 |
2.8 |
3.3 |
V |
| Supply Current For VCC |
ICC |
- |
- |
TBD |
- |
mA
|
Specifiche di prodotto
|
Size
|
2.4" |
|
Resolution
|
240x320 |
|
Active Area (mm)
|
36.72x48.96 |
|
Color
|
Full Color |
|
Display Interface
|
MCU (Parallel) |
|
Display IC
|
ST7789T3 |
|
View Angle
|
IPS |
|
Sunlight Readable
|
Transflective |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0.5mm |
|
Preferred - Not Preferred
|
Preferred |
