NT032-N001WS

TFT 3.2", 240x320, Full Color, MCU (Parallel/SPI), O-Film, 500cd/m², No touch, Standard Temp.

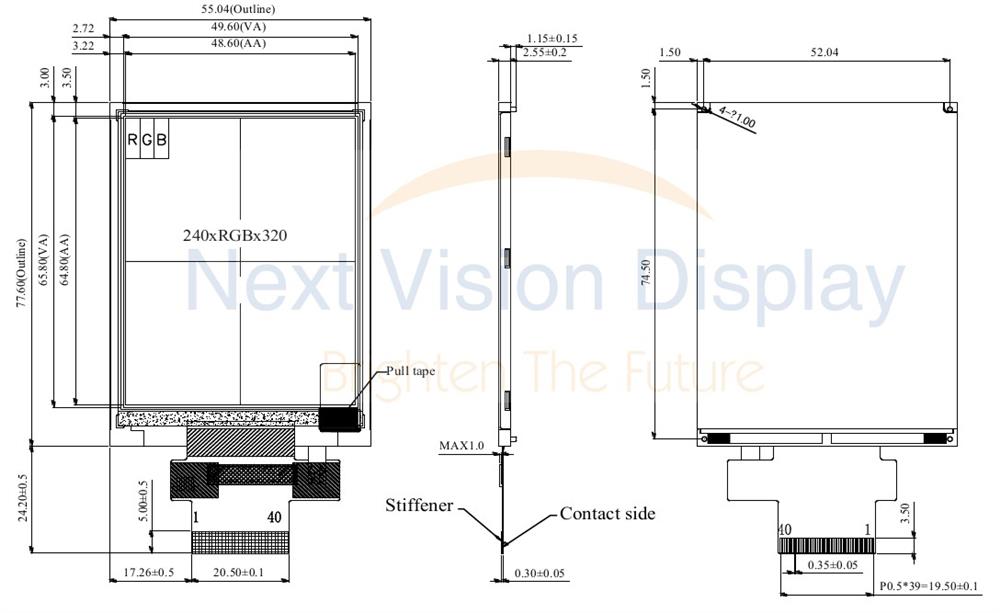

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

NO

Symbol

Function

I/O

1

NC

No connection

-

2

NC

No connection

-

3

NC

No connection

-

4

NC

No connection

-

5

VCI

Power supply(TYP: 2.8V).

P

6

IOVCC

Power supply(TYP:1.8V/2.8V).

P

7

R5

18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use

I/O

8

R4



9

R3



10

R2



11

R1



12

R0



13

G5



14

G4



15

G3



16

G2



17

G1



18

G0



19

B5



20

B4



21

B3



22

B2



23

B1



24

B0



25

SDA

Serial data input/output

I/O

26

DOTCLK

Data enable signal in RGB interface.

I

27

DE

A data ENABLE signal in RGB I/F mode

I

28

HSYNC

Horizontal synchronizing signal in RGB interface

I

29

VSYNC

Vertical synchronizing signal in RGB interface

I

30

NRD

Read enable pin I80 parallel bus system interface

I

31

NWR_DNC

NWR Write enable pin I80 parallel bus system interface

I





DNC Command/parameter or display data selection pin in serial bus system interface



32

DNC_SCL

DNC Command/parameter or display data selection pin in parallel

interface

SCL Serial data clock in serial bus system Interface

I

33

NCS

Chip select signal

I

34

NRESET

System Reset

I

35

IM0

System

interface select:



I



36

IM1

37

IM2





38

GND

Ground

P

39

VLED+

Anode of LED backlight.

P

40

VLED-

Cathode of LED backlight.

P



General Specifications

Item

Dimension

Unit

Size

3.2

inch

Dot Matrix

240x RGBx 320(TFT)

dots

Module dimension

55.04 (W) x 77.6 (H) x 2.55(D)

mm

Active area

48.6 x 64.8

mm

Pixel pitch

0.2025 x 0.2025

mm

LCD type

TFT, Normally White, Transmissive

View Direction

6 o’clock

Gray Scale Inversion Direction

12 o’clock

Aspect Ratio

Portrait

Driver IC

ILI9341 or Equivalent

Interface

80 MCU 8bit /9bit/16bit/18bit/SPI(3 Wire/4 Wire)

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

SKU: NT032-N001WS
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€21,40
€15,70
€13,50

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€21,40 IVA esclusa



DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

NO

Symbol

Function

I/O

1

NC

No connection

-

2

NC

No connection

-

3

NC

No connection

-

4

NC

No connection

-

5

VCI

Power supply(TYP: 2.8V).

P

6

IOVCC

Power supply(TYP:1.8V/2.8V).

P

7

R5

18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use

I/O

8

R4



9

R3



10

R2



11

R1



12

R0



13

G5



14

G4



15

G3



16

G2



17

G1



18

G0



19

B5



20

B4



21

B3



22

B2



23

B1



24

B0



25

SDA

Serial data input/output

I/O

26

DOTCLK

Data enable signal in RGB interface.

I

27

DE

A data ENABLE signal in RGB I/F mode

I

28

HSYNC

Horizontal synchronizing signal in RGB interface

I

29

VSYNC

Vertical synchronizing signal in RGB interface

I

30

NRD

Read enable pin I80 parallel bus system interface

I

31

NWR_DNC

NWR Write enable pin I80 parallel bus system interface

I





DNC Command/parameter or display data selection pin in serial bus system interface



32

DNC_SCL

DNC Command/parameter or display data selection pin in parallel

interface

SCL Serial data clock in serial bus system Interface

I

33

NCS

Chip select signal

I

34

NRESET

System Reset

I

35

IM0

System

interface select:



I



36

IM1

37

IM2





38

GND

Ground

P

39

VLED+

Anode of LED backlight.

P

40

VLED-

Cathode of LED backlight.

P



General Specifications

Item

Dimension

Unit

Size

3.2

inch

Dot Matrix

240x RGBx 320(TFT)

dots

Module dimension

55.04 (W) x 77.6 (H) x 2.55(D)

mm

Active area

48.6 x 64.8

mm

Pixel pitch

0.2025 x 0.2025

mm

LCD type

TFT, Normally White, Transmissive

View Direction

6 o’clock

Gray Scale Inversion Direction

12 o’clock

Aspect Ratio

Portrait

Driver IC

ILI9341 or Equivalent

Interface

80 MCU 8bit /9bit/16bit/18bit/SPI(3 Wire/4 Wire)

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Anti-Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C

Specifiche di prodotto
Brand Next Vision Display
Size 3.2"
Risoluzione 240x320
Area Attiva (mm) 48.60x64.80
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ILI9341
Angolo Visione TN
Frame No
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
