NT057-R001ME

TFT 5.7'' 320x240, LCD Module, Interface RGB, 450 cd/m2, Resistive Touch Panel, Frame, Anti-Glare Polarizer





DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND Ground
2 CK Clock signal for sampling each data signal
3 Hsync Horizontal synchronous signal
4 Vsync Vertical synchronous signal
5 GND Ground
6 R0 Red Data bit(LSB)
7~10 R1~R4 Red Data bit
11 R5 Red Data bit(MSB)
12 GND Ground
13 G0 Green Data bit(LSB)
14~17 G1~G4 Green Data bit
18 G5 Green Data bit(MSB)
19 GND Ground
20 B0 Blue Data bit(LSB)
21~24 B1~B4 Blue Data bit
25 B5 Blue Data bit(MSB)
26 GND Ground
27 NC No connect
28~29 VCC +3.3V power supply
30 R/L Selection signal for horizontal scanning direction (L: Normally  H: Right-and-left reversal)
31 U/D Selection signal for vertical scanning direction (H: Normally   L: Up-and-Down reversal)
32 NC No connect
33 GND Ground



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 143.5 × 104.1 × 13.85 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
Drive IC HX8218+HX8615 or equivalent
Interface 18-bit RGB
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 110 170 mA
Power Consumption 363 612 mW


SKU: NT057-R001ME
Disponibile: No

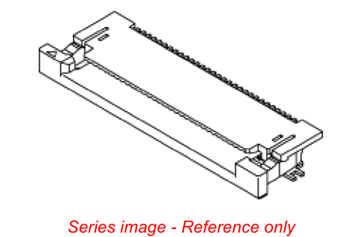

Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€84,10
€77,10
€74,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€84,10 IVA esclusa





DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND Ground
2 CK Clock signal for sampling each data signal
3 Hsync Horizontal synchronous signal
4 Vsync Vertical synchronous signal
5 GND Ground
6 R0 Red Data bit(LSB)
7~10 R1~R4 Red Data bit
11 R5 Red Data bit(MSB)
12 GND Ground
13 G0 Green Data bit(LSB)
14~17 G1~G4 Green Data bit
18 G5 Green Data bit(MSB)
19 GND Ground
20 B0 Blue Data bit(LSB)
21~24 B1~B4 Blue Data bit
25 B5 Blue Data bit(MSB)
26 GND Ground
27 NC No connect
28~29 VCC +3.3V power supply
30 R/L Selection signal for horizontal scanning direction (L: Normally  H: Right-and-left reversal)
31 U/D Selection signal for vertical scanning direction (H: Normally   L: Up-and-Down reversal)
32 NC No connect
33 GND Ground



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 143.5 × 104.1 × 13.85 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
Drive IC HX8218+HX8615 or equivalent
Interface 18-bit RGB
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Screen Resistive Touch Screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 110 170 mA
Power Consumption 363 612 mW


Specifiche di prodotto
Brand Next Vision Display
Size 5.7"
Risoluzione 320x240
Area Attiva (mm) 115.20x86.40
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 33
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 5.7"
Risoluzione 320x240
Area Attiva (mm) 115.20x86.40
Colore Full Color
Interfaccia Display RGB
Display IC No
Angolo Visione TN
Frame Yes
Touch Panel Resistive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 33
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
