NT070-C002ML

Immagine di NT070-C002ML Immagine di NT070-C002ML
TFT 7" 1024x600, HDMI Interface, Wide view angle (IPS), 600cd/m², Capacitive touch panel, Standard Temp., W/ Frame (HDMI and micro-usb cables included)



DESCRIPTION



The NT070­-C002ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 7.0 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.The NT070-­C002ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

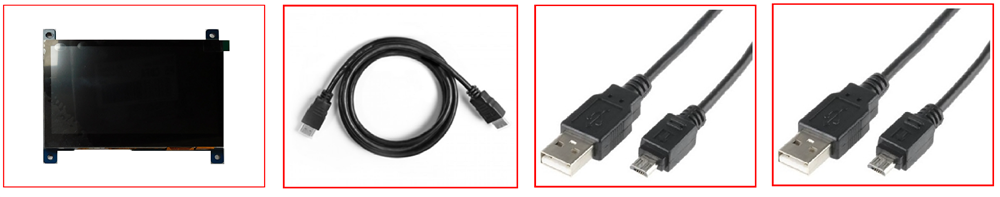

The display kit includes:

  • 1 TFT Display HDMI 7" 1024x600
  • 1 HDMI cable
  • 2 usb-microusb cables

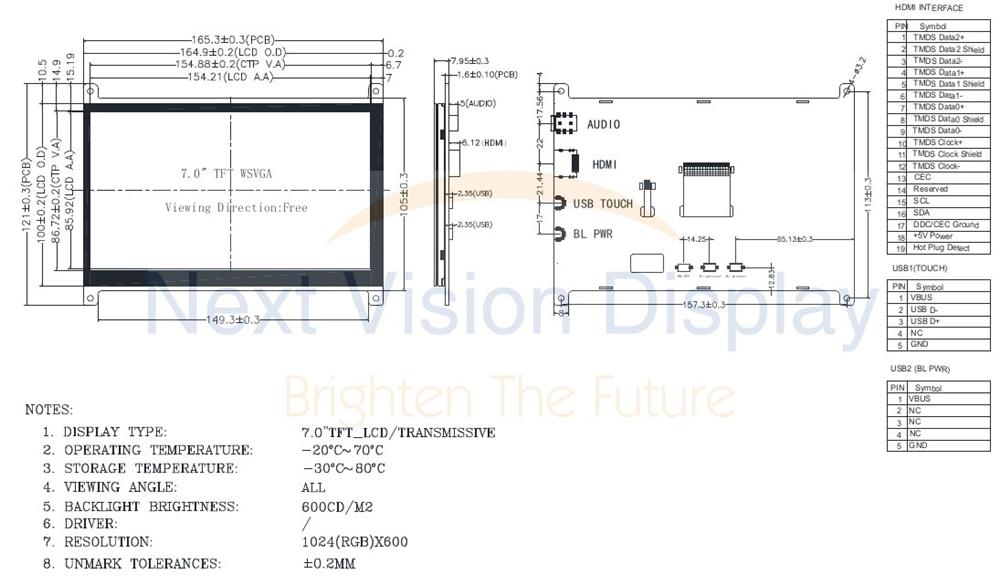

DRAWING





SPECIFICATIONS



General Specifications

Item

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD



Module Dimension

165.3(W)*121.0(H)*7.95(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

154.21(W)×85.92(H)

mm

Viewing Direction

ALL

--

LED Backlight Color

White

--

Interface

LCD:HDMI,  CTP:USB

--

Power supply

USB(5.0V)



Support system

Win/7/Win8/Win10(plug and play)



Android,Linux (configured in requests)

Power Supply

USB(5.0 V)





Absolute Max Ratings

Item

  Min

Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition

  Min Max

Unit

Note

Brightness

Bp

e=0°

F=0°

-

600

-

cd/m2



Uniformity

△Bp

-

80

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

80

85

-

Deg

Cr≥10

6 o’clock

80

85

-

e2

(0=0° or

180°)

9 o’clock

80

85

-

3 o’clock

80

85

-

CIE

Wx

e=0°

F=0°

0.26

0.30

0.36





Wy

0.28

0.33

0.38





Contrast Ratio

Cr

300

400



-



Response Time

ton

-

25

40

ms


SKU: NT070-C002ML
Brand: Next Vision Display
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€104,20
€92,20
€86,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€104,20 IVA esclusa



DESCRIPTION



The NT070­-C002ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 7.0 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.The NT070-­C002ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

The display kit includes:

  • 1 TFT Display HDMI 7" 1024x600
  • 1 HDMI cable
  • 2 usb-microusb cables

DRAWING





SPECIFICATIONS



General Specifications

Item

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD



Module Dimension

165.3(W)*121.0(H)*7.95(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

154.21(W)×85.92(H)

mm

Viewing Direction

ALL

--

LED Backlight Color

White

--

Interface

LCD:HDMI,  CTP:USB

--

Power supply

USB(5.0V)



Support system

Win/7/Win8/Win10(plug and play)



Android,Linux (configured in requests)

Power Supply

USB(5.0 V)





Absolute Max Ratings

Item

  Min

Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition

  Min Max

Unit

Note

Brightness

Bp

e=0°

F=0°

-

600

-

cd/m2



Uniformity

△Bp

-

80

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

80

85

-

Deg

Cr≥10

6 o’clock

80

85

-

e2

(0=0° or

180°)

9 o’clock

80

85

-

3 o’clock

80

85

-

CIE

Wx

e=0°

F=0°

0.26

0.30

0.36





Wy

0.28

0.33

0.38





Contrast Ratio

Cr

300

400



-



Response Time

ton

-

25

40

ms


Specifiche di prodotto
Brand Next Vision Display
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x87.64
Colore Full Color
Interfaccia Display HDMI
Angolo Visione IPS
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x87.64
Colore Full Color
Interfaccia Display HDMI
Angolo Visione IPS
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Preferred
