NT101-C001ML

Immagine di NT101-C001ML Immagine di NT101-C001ML
TFT 10.1'' 1024x600, HDMI Interface, 300cd/m², Capacitive touch panel, Standard Temp.



DESCRIPTION

The model NT101­-C001ML is a Color TFT LCD supplied by Next Vision Display. This main Module has a 10.1 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. NT101­-C001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

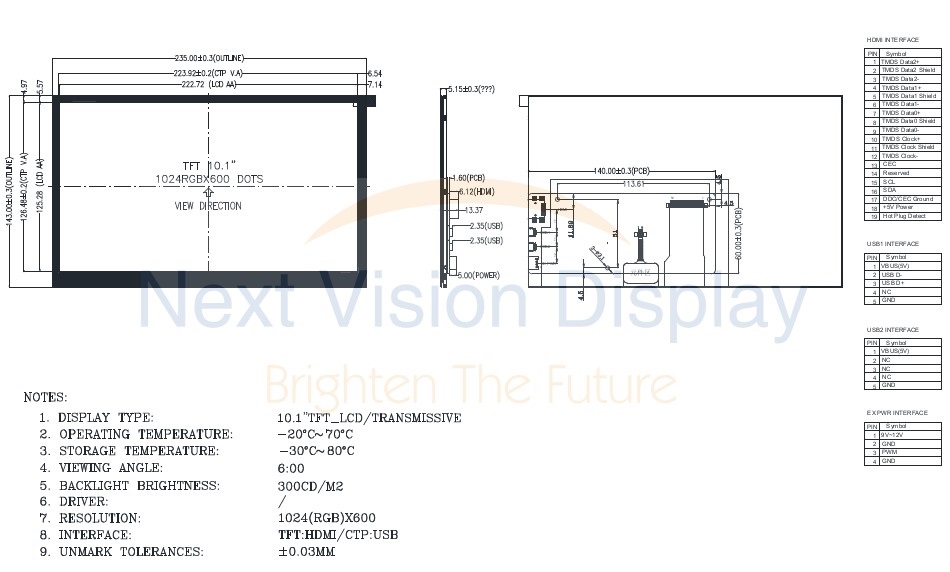

DRAWING



SPECIFICATIONS



Interface Pin Connections

HDMI interface



Symbol

DESCRIPTION

1

TMDS Data2+

Positive side of channel 2 TMDS low-voltage signal
differential input pair

2

TMDS Data2 Shield

Ground

3

TMDS Data2-

Negative side of channel 2 TMDS low-voltage signal
differential input pair

4

TMDS Datal+

Positive side of channel 1 TMDS low-voltage signal
differential input pair

5

TMDS Datal Shield

Ground

6

TMDS Datal-

Negative side of channel 1 TMDS low-voltage signal
differential input pair

7

TMDS Data0+

Positive side of channel O TMDS low-voltage signal
differential input pair

8

TMDS Data0 Shield

Ground

9

TMDS Data0-

Negative side of channel O TMDS low-voltage signal
differential input pair

10

TMDS Clock+

Positive side of reference clock. TMDS low-voltage signal
differential input pair

11

TMDS Clock Shield

Ground

12

TMDS Clock-

Negative side of reference clock. TMDS low-voltage signal differential input pair

13

CEC

No Connection

14

Reserved(N.C.)

No Connection

15

SCL

DDC SCL

16

SDA

DDC SDA

17

DDC/CEC Ground

Ground

18

+5V Power

+5V Power

19

Hot Plug Detect

Hot Plug Detect



General Specifications

ITEM

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD

--

Module Dimension

235.00(W)*143.00(H)*5.15(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

222.72(W)×125.28(H)

mm

Viewing Direction

6 O’clock

--

Gray inversion direction

12 O’clock



LED Backlight Color

White

--

Color Numbers

16.7M



Interface

LCD:HDMI,  CTP:USB

--

Support system

Win/7/Win8/Win10(plug and play)

--

Android,Linux (configured in requests)

Power Consumption

USB(300mA)+External 12V(450mA)

mA



Absolute Max Rating

Item



Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition



Unit

Note

Brightness

Bp

e=0°

F=0°

200

300

-

cd/m2



Uniformity

△Bp

70

75

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

50

60

-

Deg

Cr≥10

6 o’clock

50

60

-

e2

(0=0° or

180°)

9 o’clock

60

70

-

3 o’clock

60

70

-

CIE

Wx

e=0°

F=0°

0.27

0.31

0.35





Wy

0.28

0.32

0.36





Contrast Ratio

Cr

--

350



-



Response Time

ton

-

25

50

ms



toff

-

ms



SKU: NT101-C001ML
Brand: Next Vision Display
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€146,20
€127,60
€121,10

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€146,20 IVA esclusa



DESCRIPTION

The model NT101­-C001ML is a Color TFT LCD supplied by Next Vision Display. This main Module has a 10.1 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. NT101­-C001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.



DRAWING



SPECIFICATIONS



Interface Pin Connections

HDMI interface



Symbol

DESCRIPTION

1

TMDS Data2+

Positive side of channel 2 TMDS low-voltage signal
differential input pair

2

TMDS Data2 Shield

Ground

3

TMDS Data2-

Negative side of channel 2 TMDS low-voltage signal
differential input pair

4

TMDS Datal+

Positive side of channel 1 TMDS low-voltage signal
differential input pair

5

TMDS Datal Shield

Ground

6

TMDS Datal-

Negative side of channel 1 TMDS low-voltage signal
differential input pair

7

TMDS Data0+

Positive side of channel O TMDS low-voltage signal
differential input pair

8

TMDS Data0 Shield

Ground

9

TMDS Data0-

Negative side of channel O TMDS low-voltage signal
differential input pair

10

TMDS Clock+

Positive side of reference clock. TMDS low-voltage signal
differential input pair

11

TMDS Clock Shield

Ground

12

TMDS Clock-

Negative side of reference clock. TMDS low-voltage signal differential input pair

13

CEC

No Connection

14

Reserved(N.C.)

No Connection

15

SCL

DDC SCL

16

SDA

DDC SDA

17

DDC/CEC Ground

Ground

18

+5V Power

+5V Power

19

Hot Plug Detect

Hot Plug Detect



General Specifications

ITEM

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD

--

Module Dimension

235.00(W)*143.00(H)*5.15(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

222.72(W)×125.28(H)

mm

Viewing Direction

6 O’clock

--

Gray inversion direction

12 O’clock



LED Backlight Color

White

--

Color Numbers

16.7M



Interface

LCD:HDMI,  CTP:USB

--

Support system

Win/7/Win8/Win10(plug and play)

--

Android,Linux (configured in requests)

Power Consumption

USB(300mA)+External 12V(450mA)

mA



Absolute Max Rating

Item



Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition



Unit

Note

Brightness

Bp

e=0°

F=0°

200

300

-

cd/m2



Uniformity

△Bp

70

75

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

50

60

-

Deg

Cr≥10

6 o’clock

50

60

-

e2

(0=0° or

180°)

9 o’clock

60

70

-

3 o’clock

60

70

-

CIE

Wx

e=0°

F=0°

0.27

0.31

0.35





Wy

0.28

0.32

0.36





Contrast Ratio

Cr

--

350



-



Response Time

ton

-

25

50

ms



toff

-

ms



Specifiche di prodotto
Brand Next Vision Display
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Interfaccia Display HDMI
Angolo Visione TN
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 10.1"
Risoluzione 1024x600
Area Attiva (mm) 222.72x125.28
Colore Full Color
Interfaccia Display HDMI
Angolo Visione TN
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display HDMI Connector
Preferred - Not Preferred Preferred
