No

Symbol

Description

Remarks

1

VCOM

Common Voltage

2

VDD

Power Voltage for digital circuit

3

VDD

Power Voltage for digital circuit

4

NC

No connection

5

REST

Global reset pin

6

STBYB

Standby mode, Normally pulled high

STBYB="1",Normally operation STBYB="0",Timing controller, source driver will turn off, all output are High-Z

7

GND

Ground

8

RXIN0-

- LVDS differential data input

9

RXIN0+

+LVDS differential data input

10

GND

Ground

11

RXIN1-

-LVDS differential data input

12

RXIN1+

+LVDS differential data input

13

GND

Ground

14

RXIN2-

-LVDS differential data input

15

RXIN2+

+LVDS differential data input

16

GND

Ground

17

RXCLK-

-LVDS differential clock input

18

RXCLK+

+LVDS differential clock input

19

GND

Ground

20

RXIN3-

-LVDS differential data input

21

RXIN3+

+LVDS differential data input

22

GND

Ground

23

NC

No connection

24

NC

No connection

25

GND

Ground

26

NC

No connection

27

DIMO/NC

Backlight CABC controller signal output/No connection

28

SELB

6-bit / 8-bit mode select

Note 2

29

AVDD

Power for Analog Circuit

30

GND

Ground

31

LED-

LED Cathode

32

LED-

LED Cathode

33

L/R

Horizontal inversion

Note 4

34

U/D

Vertical inversion

Note 4

35

VGL

Gate off voltage

36

CABCEN1/NC

CABC H/W enable/No connection

Note 3

37

CABCEN0/NC

CABC H/W enable/No connection

Note 3

38

VGH

Gate ON Voltage

39

LED+

LED Anode

40

LED+

LED Anode

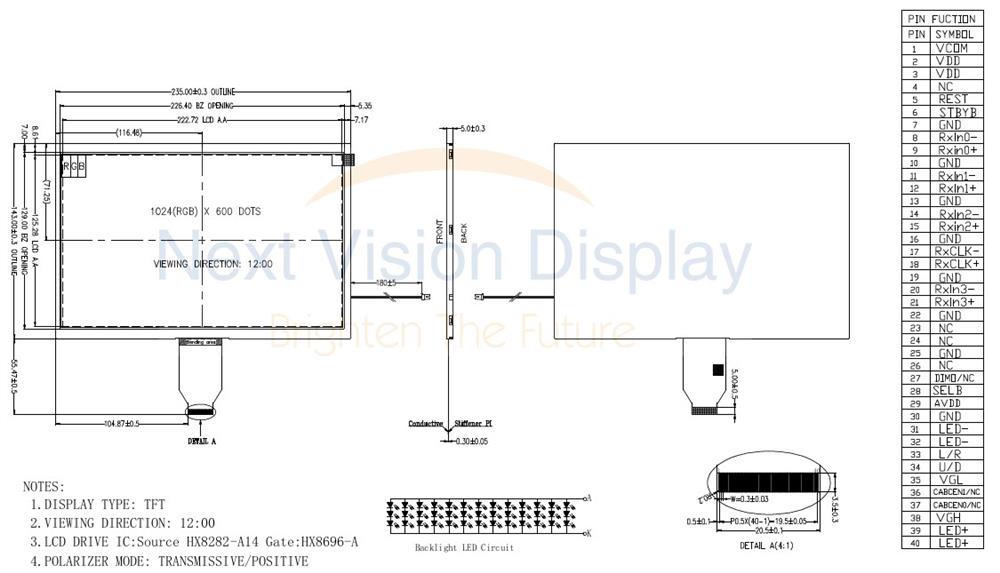

Item

Contents

Unit

Size

10.1

inch

Resolution

1024 (RGB) x 600

/

Interface

LVDS

/

Technology type

TFT

/

Pixel pitch

0.2175x0.2088

mm

Pixel Configuration

RGB stripes

Outline Dimension (W x H x D)

235.0x143.0x5.0

mm

Active Area

222.72 x 125.28

mm

Display Mode

Normally white, Transmissive

/

Backlight Type

LED

/
