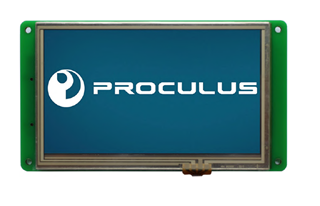

P80480J50C_T02

TFT 5'' 800x480 OS Unic View AD, Interface UART, Consuming, 300cd/m², Resistive touch panel

DESCRIPTION

  • Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;

  • Support RS232/TTL/CMOS, the max baud rate is 921600bps;

  • Support audio and video;

  • Support hardware JPG decoding which makes storage more efficient and display quicker;

  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

  • Support backlight brightness adjustment and automatic standby screen saver function;

  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

  • No-touch / capacitive-touch versions also available

 ____________________________



STARTER KIT, WHAT TO BUY:



Required components ('Accessory Kit' above menu):

01. 'FFC Cable' P/N: PCA_40

02. 'Added Board' P/N: PAB_02V01_R

03. ' P/N: CABLE_USB-MICROUSB

04. '  P/N: POWER_ADAPT5V_JACK1A





Optional components ('Related product' section below):

05. Arduino Shield P/N: PAB_03V01_R

06. Adapter Board P/N: PAB_01V01_RN

07. Adapter S10 USA/EU P/N: ADAPTOR_VIM_01352

SKU: P80480J50C_T02
Brand: Proculus
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€79,50
€72,90
€70,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€79,50 IVA esclusa

DESCRIPTION

  • Support wide range of power supply:Default is 6~35V, use jumper to choose 4.5~5.5V;

  • Support RS232/TTL/CMOS, the max baud rate is 921600bps;

  • Support audio and video;

  • Support hardware JPG decoding which makes storage more efficient and display quicker;

  • Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

  • Support backlight brightness adjustment and automatic standby screen saver function;

  • Support multi-language font library, picture, TWO-DIMENSIONAL code display;

  • Support number and English input, customizable keyboard interface;

  • Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

  • Easy-to-use UnicView GUIs Development, no coding skills required;

  • Instant operation when power on without system load time;

  • Excellent electromagnetic compatibility characteristics.

  • No-touch / capacitive-touch versions also available

 ____________________________



STARTER KIT, WHAT TO BUY:



Required components ('Accessory Kit' above menu):

01. 'FFC Cable' P/N: PCA_40

02. 'Added Board' P/N: PAB_02V01_R

03. ' P/N: CABLE_USB-MICROUSB

04. '  P/N: POWER_ADAPT5V_JACK1A





Optional components ('Related product' section below):

05. Arduino Shield P/N: PAB_03V01_R

06. Adapter Board P/N: PAB_01V01_RN

07. Adapter S10 USA/EU P/N: ADAPTOR_VIM_01352

Specifiche di prodotto
Brand Proculus
Size 5"
Risoluzione 800x480
Colore Full Color
Alimentazione 5V
Interfaccia Display UART
Display IC Unic View AD
Touch Panel Resistive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Proculus
Size 5"
Risoluzione 800x480
Colore Full Color
Alimentazione 5V
Interfaccia Display UART
Display IC Unic View AD
Touch Panel Resistive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
