WEA128128W#A05-FC

Immagine di WEA128128W#A05-FC Immagine di WEA128128W#A05-FC
PMOLED 1.5'' Graphic 128x128, White, COG + PCB, 3~5V, Interface I2C

DESCRIPTION

It is the extension item of WEO128128x#A05-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is built in with SSD1327 IC; it supports I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value). Operating temperature from -40℃ to +80℃; storage temperature range from -40℃ to +85℃.

This OLED module is suitable for smart home application, medical device, smart control, meter, etc.

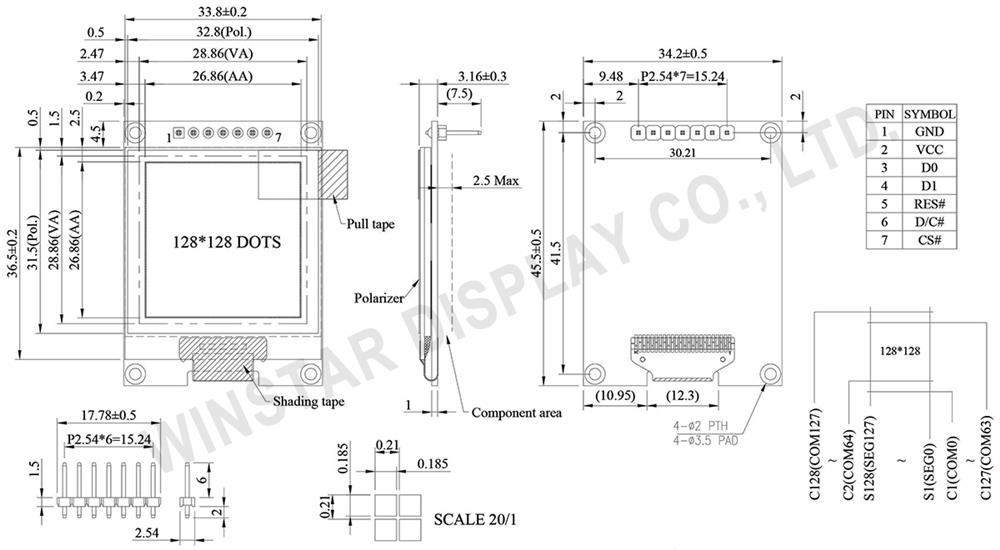

DRAWING

OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND This is a ground pin.
2 VCC Power supply input
3 SCL The serial clock
4 SDA The serial data
5 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
6 SA0 Slave address selection
7 CS# This pin is the chip select input.
The chip is enabled for MCU communication only when CS# is pulled LOW



General Specification

ItemDimensionUnit
Dot Matrix 128 x 128 Dots －
Module dimension 34.2 x 45.5 x 3.16 mm
Active Area 26.86 x 26.86 mm
Pixel Size 0.185 x 0.185 mm
Pixel Pitch 0.210 x 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface I2C
Size 1.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V/5V) VCC － 2.8 3.3 5.2 V
Input High Volt. VIH － 0.8×VCC － VCC V
Input Low Volt. VIL － 0 － 0.2×VCC V
Output High Volt. VOH － 0.9×VCC － VCC V
Output Low Volt. VOL － 0 － 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V － 160 320 mA


SKU: WEA128128W#A05-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€17,10
€12,60
€12,10
€11,70

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€17,10 IVA esclusa

DESCRIPTION

It is the extension item of WEO128128x#A05-FC which is having a PCB board on module; it’s diagonal size 1.5 inch, made of 128x128 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is built in with SSD1327 IC; it supports I2C interface, 16 (4bits) gray scale, driving duty 1/128, supply voltage for logic is from 3.3V ~5V, the display with 50% Check board current is 160 mA @3.3VDD (typical value). Operating temperature from -40℃ to +80℃; storage temperature range from -40℃ to +85℃.

This OLED module is suitable for smart home application, medical device, smart control, meter, etc.



DRAWING

OLED 1.5 inch,1.5 OLED Display, 1.5 inch OLED Display, 1.5 inch OLED Module - WEA128128A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND This is a ground pin.
2 VCC Power supply input
3 SCL The serial clock
4 SDA The serial data
5 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
6 SA0 Slave address selection
7 CS# This pin is the chip select input.
The chip is enabled for MCU communication only when CS# is pulled LOW



General Specification

ItemDimensionUnit
Dot Matrix 128 x 128 Dots －
Module dimension 34.2 x 45.5 x 3.16 mm
Active Area 26.86 x 26.86 mm
Pixel Size 0.185 x 0.185 mm
Pixel Pitch 0.210 x 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface I2C
Size 1.5 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic(3V/5V) VCC － 2.8 3.3 5.2 V
Input High Volt. VIH － 0.8×VCC － VCC V
Input Low Volt. VIL － 0 － 0.2×VCC V
Output High Volt. VOH － 0.9×VCC － VCC V
Output Low Volt. VOL － 0 － 0.1×VCC V
50% Check Board operating Current ICC VCC=3.3V － 160 320 mA


Specifiche di prodotto
Brand Winstar
Size 1.5"
Risoluzione 128x128
Area Attiva (mm) 26.86x26.86
Dot Size 0.18x0.18
Polarizzatore Anti-glare
Colore White
Alimentazione 3~5V
Interfaccia Display I2C
IC Controller Display SSD1327
Struttura Costruttiva COG + PCB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Strip Connector
Nr. Pin 7
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 1.5"
Risoluzione 128x128
Area Attiva (mm) 26.86x26.86
Dot Size 0.18x0.18
Polarizzatore Anti-glare
Colore White
Alimentazione 3~5V
Interfaccia Display I2C
IC Controller Display SSD1327
Struttura Costruttiva COG + PCB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Strip Connector
Nr. Pin 7
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
