WEA12864L#L00-FC

PMOLED 1.28'' Graphic 128x64, Yellow, COG + Small PCB, 3V, Interface I2C (Pin)

DESCRIPTION



Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106 IC; it supports I2C interface, 1/64 driving duty. This model has PCB outline size 35.50 × 32.0 mm with mounting holes on board and 4x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.

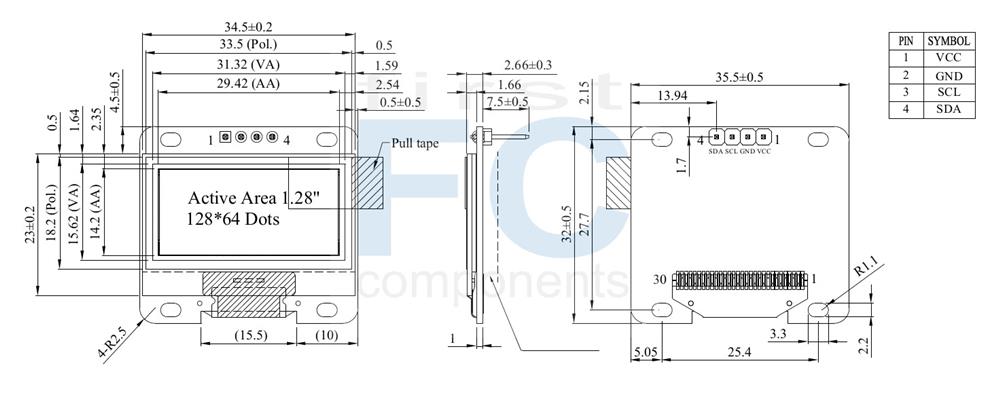

DRAWING

1.28" COG+PCB Passive Matrix OLED 128x64 - WEA012864L - Winstar



SPECIFICATIONSInterface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.9 – 5.2V
2 GND Ground
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1
serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 35.50 × 32.00 × 2.66 mm
Active Area 29.42 × 14.20 mm
Pixel Size 0.205 × 0.197 mm
Pixel Pitch 0.230 × 0.222 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Controller IC SH1106
Interface I2C
Size 1.28 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.9 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current   ICC VCC =3.3V - 25 37.5 mA


SKU: WEA12864L#L00-FC
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
50+
100+
Prezzo
€8,50
€6,20
€6,10
€5,60
€5,30

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€8,50 IVA esclusa

DESCRIPTION



Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106 IC; it supports I2C interface, 1/64 driving duty. This model has PCB outline size 35.50 × 32.0 mm with mounting holes on board and 4x1 metal pins on module.

The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.



DRAWING

1.28" COG+PCB Passive Matrix OLED 128x64 - WEA012864L - Winstar



SPECIFICATIONSInterface Pin Function

No.SymbolFunction
1 VCC Power supply input: 2.9 – 5.2V
2 GND Ground
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1
serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 Dots
Module dimension 35.50 × 32.00 × 2.66 mm
Active Area 29.42 × 14.20 mm
Pixel Size 0.205 × 0.197 mm
Pixel Pitch 0.230 × 0.222 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Controller IC SH1106
Interface I2C
Size 1.28 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VCC 1.65 5.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 2.9 3.3 5.2 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.9×VCC VCC V
Output Low Volt. VOL 0 0.1×VCC V
50% Check Board operating Current   ICC VCC =3.3V - 25 37.5 mA


Specifiche di prodotto
Brand Winstar
Size 1.28"
Risoluzione 128x64
Area Attiva (mm) 29.42x14.2
Dot Size 0.20x0.19
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia I2C
Controllore a Bordo SH1106
Struttura COG + PCB
Frame Yes
Touch Panel No touch
Connessione Display Pin
Nr. Pin 4
Passo Pin 2.54mm
