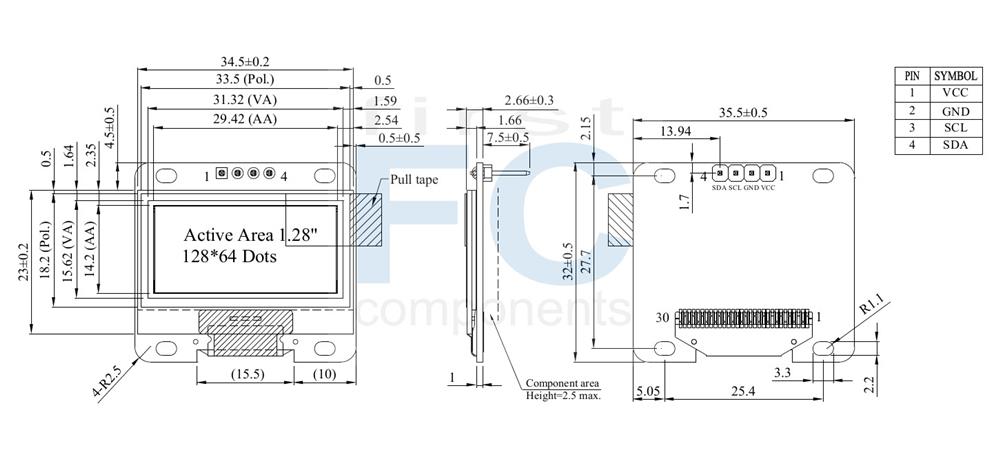

Graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.28 inch. It is built in with SH1106 IC; it supports I2C interface, 1/64 driving duty. This model has PCB outline size 35.50 × 32.0 mm with mounting holes on board and 4x1 metal pins on module.
The supply voltage for logic is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures from -40℃ to +85℃.
