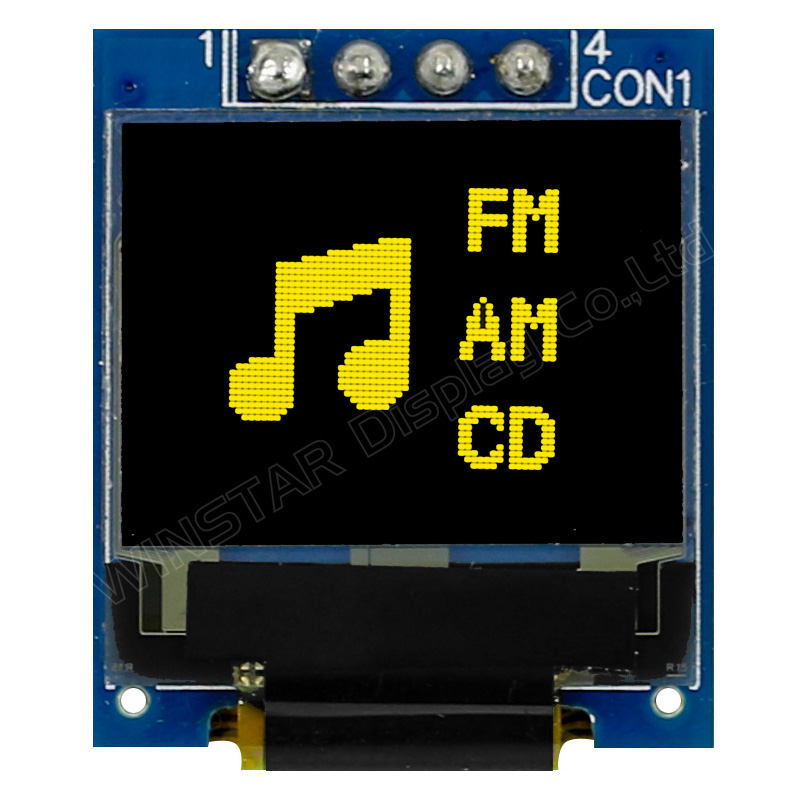

WEA6448L#A00-FC

PMOLED 0.66'' Graphic 64x48, Yellow color, COG + PCB, 3V, Interface I2C (Pin)

DESCRIPTION

0.66 inch miniature OLED display which is having COG structure with PCB board, made of 64x48 pixels; with 4 metal pins on module. This module is built in with SSD1306 IC, it communicates via I2C interface only, supply voltage for Logic 3V, 1/48 duty cycle.

It is a miniature OLED display makes its self emitting, no backlight is required. The dimension size of PCB board is very close to this 0.66" OLED panel size which makes it easily to design on customers' applications. This module is suitable for industrial device, smart home application, portable device, health device, meter device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

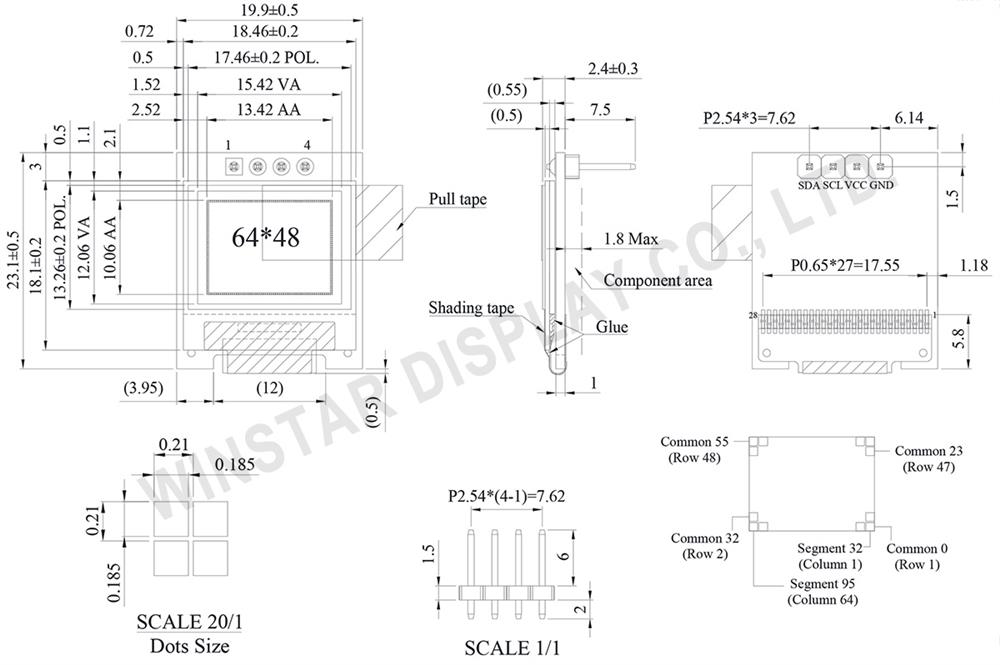

DRAWING

Miniature OLED Display, 64x48 OLED, 0.66 OLED - WEA006448A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 × 48 Dots
Module dimension 19.9 × 23.1 × 2.4 mm
Active Area 13.42 × 10.06 mm
Pixel Size 0.185 × 0.185 mm
Pixel Pitch 0.210 × 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/48 Duty
IC SSD1306
Interface I2C
Size 0.66 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 12.0 20.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C


SKU: WEA6448L#A00-FC
Brand: Winstar
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€4,30
€3,20
€3,10
€3,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€4,30 IVA esclusa

DESCRIPTION

0.66 inch miniature OLED display which is having COG structure with PCB board, made of 64x48 pixels; with 4 metal pins on module. This module is built in with SSD1306 IC, it communicates via I2C interface only, supply voltage for Logic 3V, 1/48 duty cycle.

It is a miniature OLED display makes its self emitting, no backlight is required. The dimension size of PCB board is very close to this 0.66" OLED panel size which makes it easily to design on customers' applications. This module is suitable for industrial device, smart home application, portable device, health device, meter device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.



DRAWING

Miniature OLED Display, 64x48 OLED, 0.66 OLED - WEA006448A



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 × 48 Dots
Module dimension 19.9 × 23.1 × 2.4 mm
Active Area 13.42 × 10.06 mm
Pixel Size 0.185 × 0.185 mm
Pixel Pitch 0.210 × 0.210 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/48 Duty
IC SSD1306
Interface I2C
Size 0.66 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% check Board operating Current ICC VCC=7.5V 12.0 20.0 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 0 4.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C


Specifiche di prodotto
Brand Winstar
Size 0.66"
Risoluzione 64x48
Area Attiva (mm) 13.42x10.06
Dot Size 0.18x0.18
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia I2C
Controllore a Bordo SSD1306BZ
Struttura COG + PCB
Frame No
Touch Panel No touch
Connessione Display Pin
Nr. Pin 4
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 0.66"
Risoluzione 64x48
Area Attiva (mm) 13.42x10.06
Dot Size 0.18x0.18
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia I2C
Controllore a Bordo SSD1306BZ
Struttura COG + PCB
Frame No
Touch Panel No touch
Connessione Display Pin
Nr. Pin 4
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
