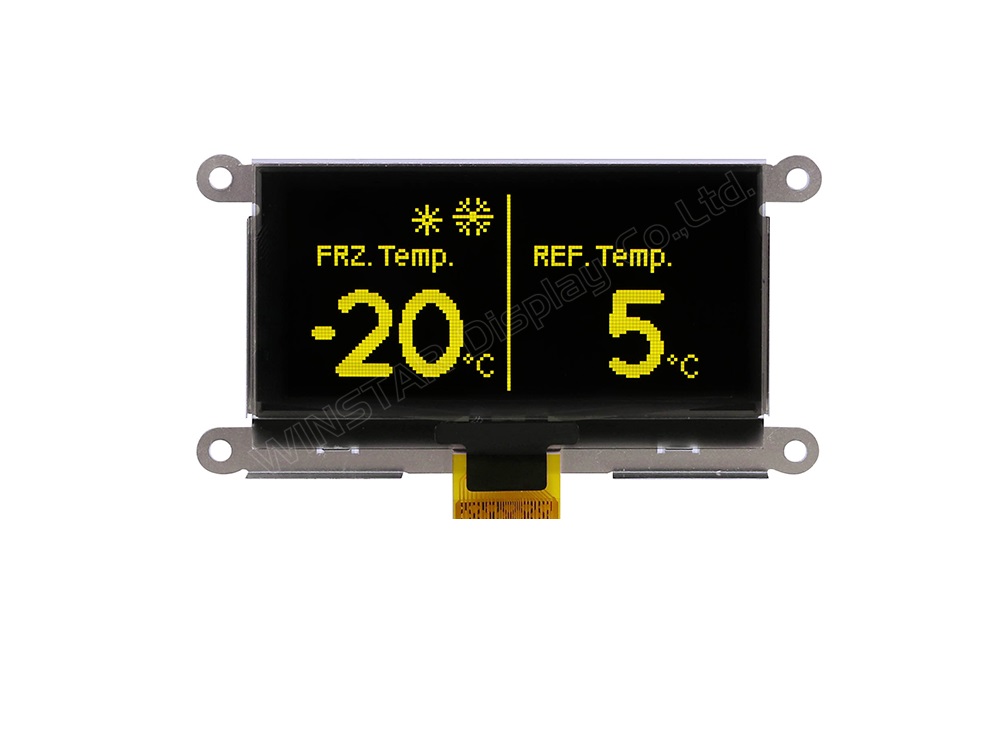

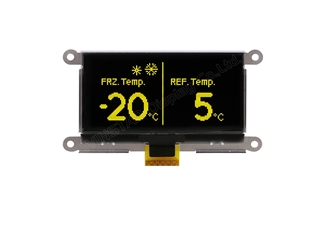

WEF12864L#K08-FC

PMOLED 2.7'' 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, Frame (22 pins)

DESCRIPTION



Winstar OLED Monochrome Display made of 128x64 pixels, diagonal size is 2.7 inch. Frame version. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.

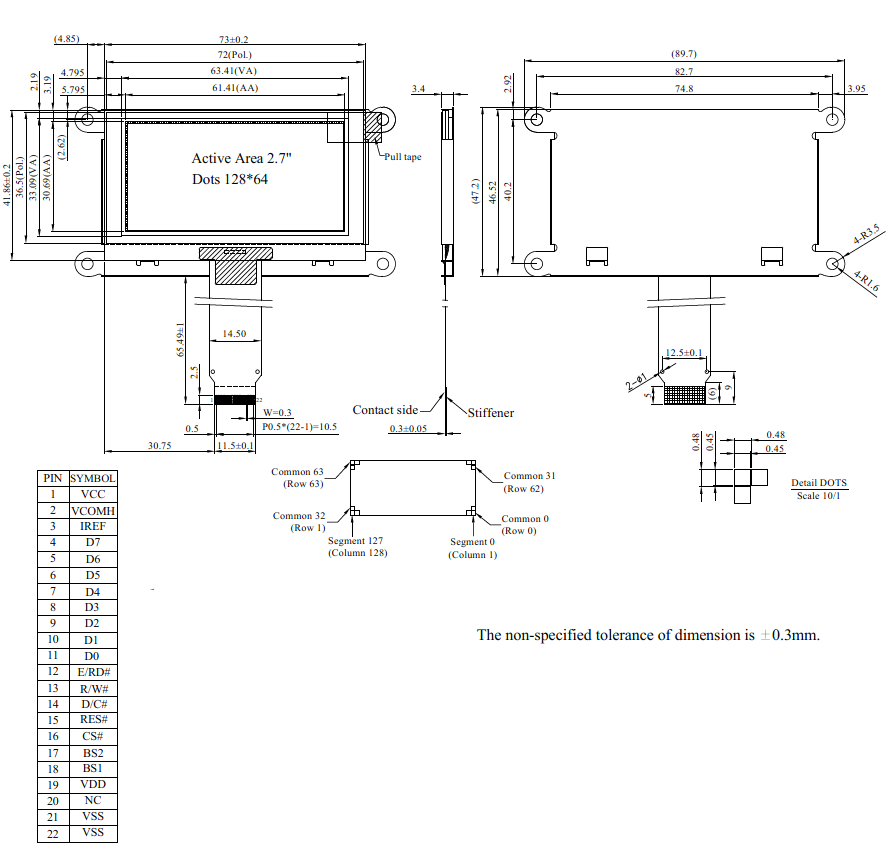

DRAWING

SKU: WEF12864L#K08-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€21,10
€16,90
€16,70
€16,20

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€21,10 IVA esclusa

DESCRIPTION



Winstar OLED Monochrome Display made of 128x64 pixels, diagonal size is 2.7 inch. Frame version. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.



DRAWING

Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia 6800/8080/SPI/I2C
Controllore a Bordo SSD1309
Struttura COG
Frame Yes
Touch Panel No touch
Connessione Display FPC per ZIF Connector
Nr. Pin 22
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizzatore Glare
Colore Yellow
Alimentazione 3V
Interfaccia 6800/8080/SPI/I2C
Controllore a Bordo SSD1309
Struttura COG
Frame Yes
Touch Panel No touch
Connessione Display FPC per ZIF Connector
Nr. Pin 22
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
