WEH1202W#AP3N00100-FC

PMOLED 1.6'' 12x2, White color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame, Glare

DESCRIPTION

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

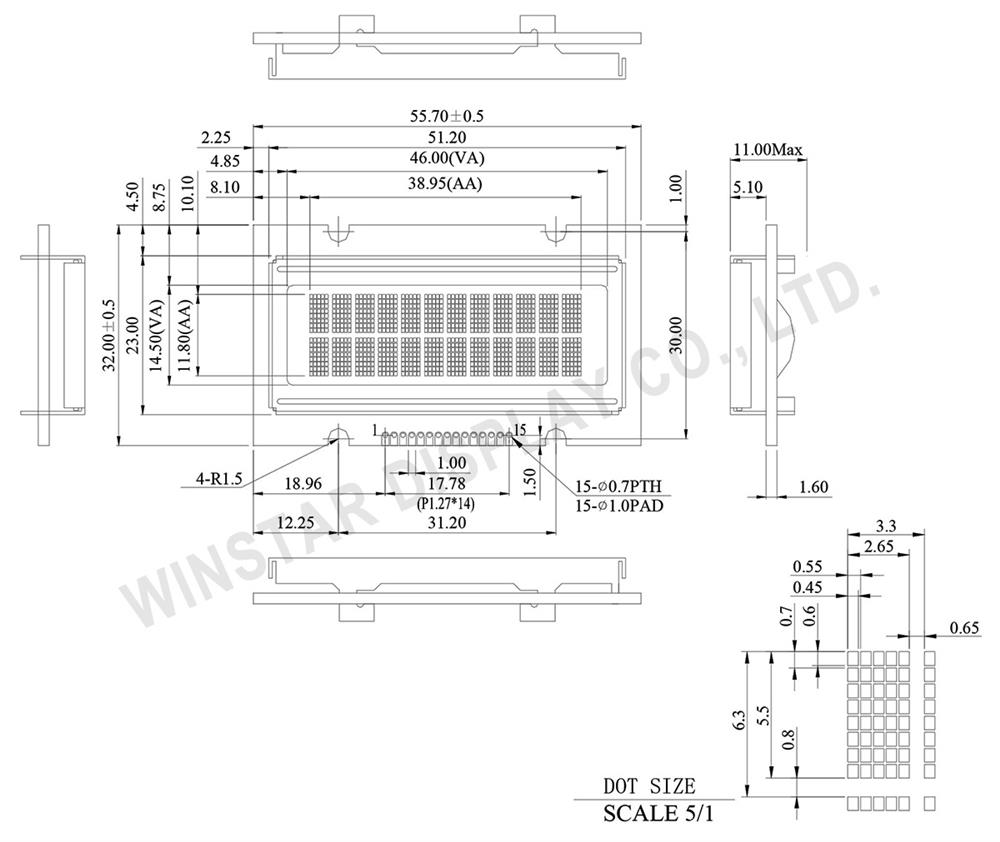

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－

Mechanical Data

Item	Dimension	Unit
Number of Characters	12 characters x 2 Lines	－
Module dimension	55.7 x 32.0 x 11.0(MAX)	mm
View area	46.0 x 14.5	mm
Active area	38.95 x 11.80	mm
Dot size	0.45 x 0.60	mm
Dot pitch	0.55 x 0.70	mm
Character size	2.65 x 5.5	mm
Character pitch	3.3 x 6.3	mm
Panel type	OLED, Monochrome
Duty	1/16
IC	WS0010-TX
Interface	6800, option 8080, SPI
Size	1.60 inch

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8xVDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2xVDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8xVDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2xVDD	V
50% Check Board Operating Current	IDD	VDD=5V	－	30	38	mA

SKU: WEH1202W#AP3N00100-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

Prezzo

€16,10

€11,80

€11,30

€11,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€16,10 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－

Mechanical Data

Item	Dimension	Unit
Number of Characters	12 characters x 2 Lines	－
Module dimension	55.7 x 32.0 x 11.0(MAX)	mm
View area	46.0 x 14.5	mm
Active area	38.95 x 11.80	mm
Dot size	0.45 x 0.60	mm
Dot pitch	0.55 x 0.70	mm
Character size	2.65 x 5.5	mm
Character pitch	3.3 x 6.3	mm
Panel type	OLED, Monochrome
Duty	1/16
IC	WS0010-TX
Interface	6800, option 8080, SPI
Size	1.60 inch

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8xVDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2xVDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8xVDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2xVDD	V
50% Check Board Operating Current	IDD	VDD=5V	－	30	38	mA

Specifiche di prodotto

Brand	Winstar
Size	1.6"
Risoluzione	12x2
Area Attiva (mm)	38.95x11.80
Dot Size	0.45x0.60
Polarizzatore	Glare
Colore	White
Alimentazione	3.3V
Interfaccia Display	6800 (option 8080/SPI)
Display IC	WS0010-TX
Struttura Costruttiva	COB
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-40~80
Connessione Display	Soldering PAD
Nr. Pin	15
Passo Pin	1.27mm
Preferred - Not Preferred	Preferred
