WEO12864W#G00-FC

PMOLED 2.42'' Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.

DESCRIPTION

Winstar 2.42" OLED made of 12864 pixels COG OLED structure. It is built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, IoT, etc.

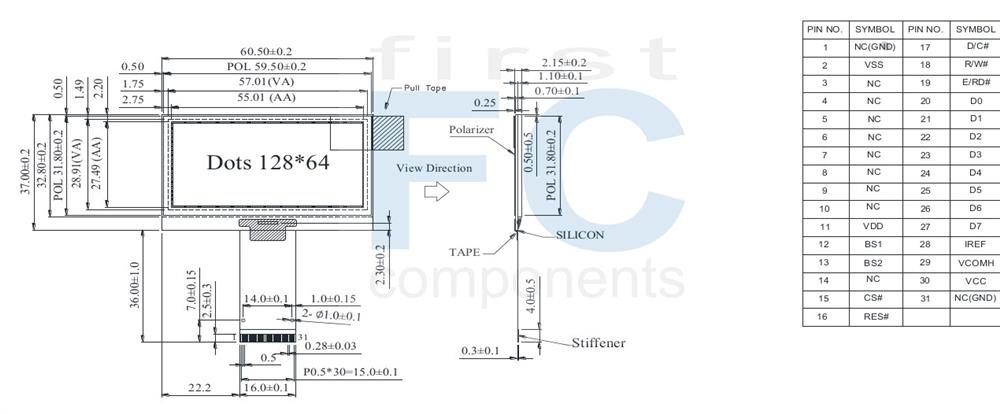

DRAWING

2.42 OLED Graphic Display 128x64 - WEO012864G

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No Connection
2	VSS	Ground Oin
3~10	NC	No Connection
11	VDD	Voltage for logic
12~13	BS1~BS2	Interface selection
14	NC	No Connection
15	CS#	Chip Select Pin
16	RES#	Reset Signal Pin
17	D/C#	Data/Command Control Pin
18	R/W#	Read/Write Control
19	E/RD#	Chip Enable Signal
20~27	D0~D7	Data Bus
28	IREF	SEG output current refer pin
29	VCOMH	COM deselected level
30	VCC	Panel driving voltage
31	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	60.5 × 37.0	mm
Viewing area	57.01 × 28.91	mm
Active area	55.01 × 27.49	mm
Dot pitch	0.43 × 0.43	mm
Dot size	0.40 × 0.40	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	2.8	3.0	3.3	V

FPC options

FPC Length	PIN	pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
37	31	0.5	ZIF	6800,8080,SPI,I2C	FPC2050003111XXXXX01	20130625
19.75	31	1	HOTBAR	6800,8080,SPI,I2C	FPC2100003101XXXXX02	20140220
37.15	24	0.5	ZIF	6800,8080,SPI,I2C	FPC2000502411XXXXX01	20160803
70.85	22	0.5	ZIF	6800,8080,SPI,I2C	FPC2050002211XXXXX03	20161228
106.57	30	0.5	ZIF	6800,8080,SPI,I2C	FPC2050003011XXXXX11	20180620

SKU: WEO12864W#G00-FC

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

50+

Prezzo

€22,10

€17,60

€17,00

€16,50

€15,90

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€22,10 IVA esclusa
