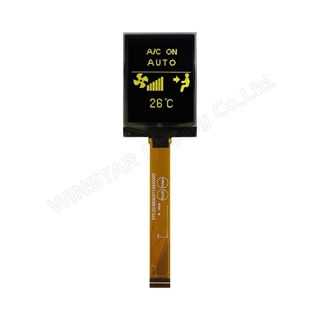

    WEO160128L#BP3N00000-FC

    PMOLED 1.92" Graphic 160x128, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, Glare
    Brand: Winstar
    Cod.: WEO160128L#BP3N00000-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €19,20
    €17,30
    €16,30
    €15,90

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €19,20 IVA esclusa
    i h



    DESCRIPTION

    160x128 resolution COG graphic OLED display module, diagonal size 1.92 inch. This model is built-in with CH1120 IC; it supports 6800/8080 parallel, I2C, and 4-wire SPI serial interface. The supply voltage for logic is 3V, supply voltage for display is 12V, display with 50% check board current is 23mA @ 12Vcc (typical value), driving duty 1/128.

    This 1.92 inch COG Graphic OLED module is suitable for medical applications, smart home applications, smart buildings’ devices (both homes and offices) and as well as control panels used to manage the lighting or heating, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

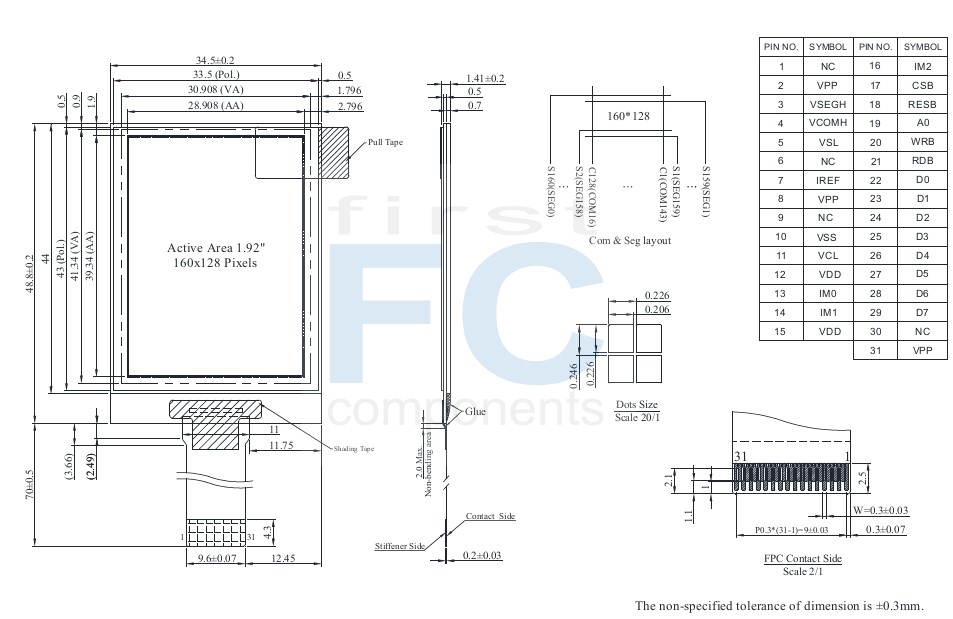

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 NC No connection
    2 VPP This is the most positive voltage supply pad of the chip.
    It should be supplied externally.
    3 VSEGM This is a pad for the voltage output level for segment pre-charge.
    A capacitor should be connected between this pad and VSS.
    4 VCOMH This is a pad for the voltage output high level for common signals.
    A capacitor should be connected between this pad and VSS.
    5 VSL This is a segment voltage reference pad.
    A capacitor should be connected between this pad and VSS.
    6 NC No connection
    7 IREF This is a segment current reference pad.
    A resistor should be connected between this pad and VSS. Set the current at 15.625uA.
    8 VPP This is the most positive voltage supply pad of the chip.
    It should be supplied externally.
    9 NC No connection
    10 VSS Ground for analog, logic & buffer respectively.
    11 VCL This is a common voltage reference pad.
    This pad should be connected to VSS externally.
    12 VDD 1.65 - 3.5V power supply input pad for logic.
    13 IM0 These are the MPU interface mode select pads.
     8080I2C68004-Wire SPI3-Wire SPI
    IM0 0 0 0 0 1
    IM1 1 1 0 0 0
    IM2 1 0 1 0 0
    14 IM1
    16 IM2
    15 VDD 1.65 - 3.5Vpower supply input pad
    17 CS This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data command I/O is enabled.
    18 RES This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
    19 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
    A0 = “H”: the inputs at D0 to D7 are treated as display data.
    A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
    In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
    20 WR This is a MPU interface input pad.
    When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal. When connected to a 6800 Series MPU: This is the read/write control signal input terminal. When WR = “H”: Read. When WR = “L”: Write.
    21 RD This is a MPU interface input pad.
    When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”. When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
    22 D0 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
    When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
    When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA). At this time, D2 to D7 are set to high impedance.
    23 D1
    24 D2
    25 D3
    26 D4
    27 D5
    28 D6
    29 D7
    30 NC No connection
    31 VPP This is the most positive voltage supply pad of the chip.
    It should be supplied externally.



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 × 160 Dots
    Module dimension 34.5 × 48.8 × 1.41 mm
    Active Area 28.908 × 39.34 mm
    Pixel Size 0.206 × 0.226 mm
    Pixel Pitch 0.226 × 0.246 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/128 Duty
    IC CH1120
    Interface 6800, 8080, SPI, I2C
    Size 1.92 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD -0.3 3.6 V
    Supply Voltage for Display VPP -0.3 17.0 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 1.65 3.0 3.5 V
    Supply Voltage for Display VPP - 11.5 12.0 12.5 V
    Input High Volt. VIH - 0.8xVDD - VDD V
    Input Low Volt. VIL - VSS - 0.2xVDD V
    Output High Volt. VOH IOH=-0.5mA 0.8xVDD - VDD V
    Output Low Volt. VOL IOL=0.5mA VSS - 0.2xVDD V
    50% Check Board Operating Current for VPP IPP VPP=12V - 23.0 35.0 mA
    Specifiche di prodotto
    Size 1.92"
    Resolution 160x128
    Active Area (mm) 28.91x39.34
    Dot Size 0.21x0.23
    Polarizer Glare
    Color Yellow
    Power supply 3V
    Display Interface 6800/8080/SPI/I2C
    Display IC CH1120
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 31
    Pin Pitch 0.3mm
    Preferred - Not Preferred Preferred
