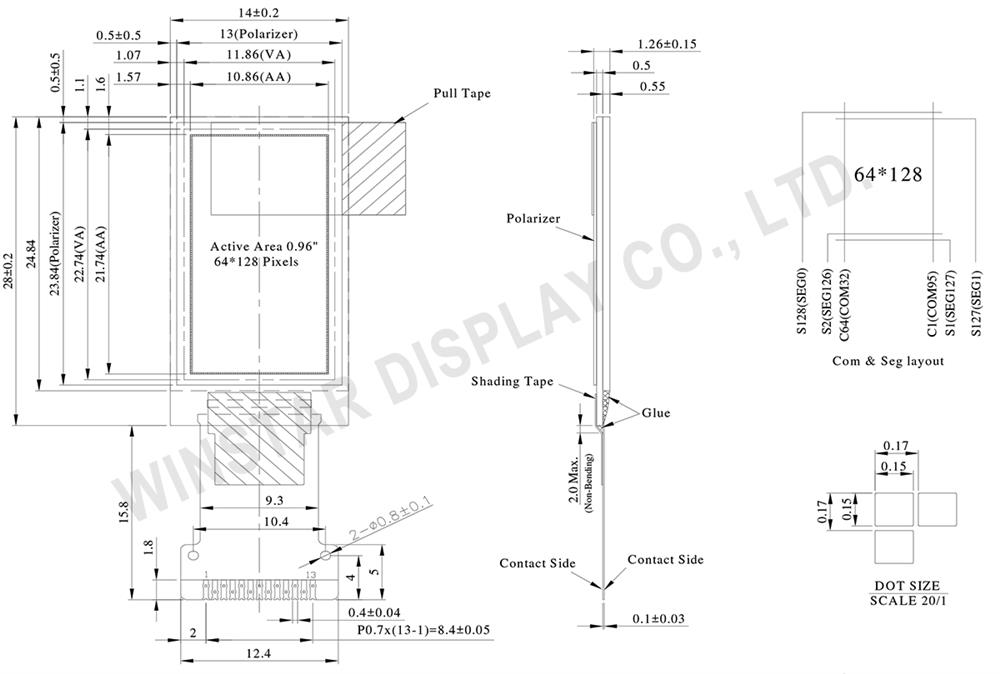

Consumer-grade COG OLED display, diagonal size 0.96 inch, made of resolution 64x128 dots. This OLED module is built-in with SH1107 IC; it supports 4-wire SPI and I2C interface, the supply voltage for logic 3V, the supply voltage for display 9V, the display with 50% Checkboard current is 8mA @9V VCC (typical value), driving duty 1/64. This model is suitable for wearable devices, portable devices, etc. Operating temperature from –30℃ to +70℃; storage temperature from -30℃ to +70℃.
