WEX25664W#B08-FC

PMOLED 3.12'' Graphic 256x64, White color, COF, 3V, Interface 6800,8080,SPI, Frame

DESCRIPTION

Winstar COF 3.12 inch of standard OLED graphic display with Frame. This 256x64 OLED display is built-in SSD1322 driver IC with AA size 76.778 x 19.178 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.

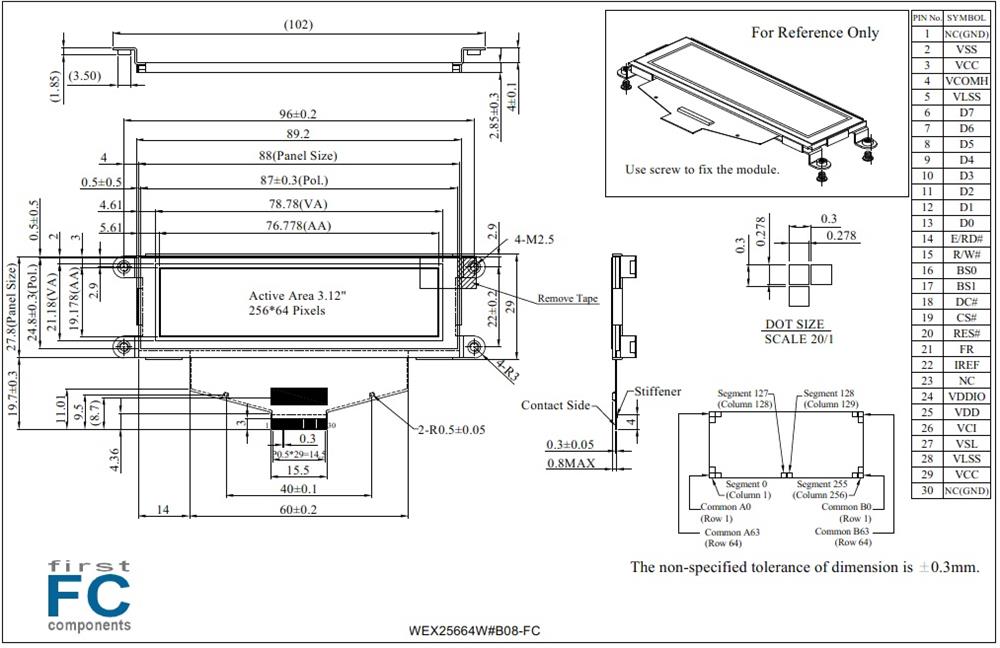

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
View area 78.78 × 21.18 mm
Active area 76.778 × 19.178  mm
Dot pitch 0.278 × 0.278 mm
Dot size 0.30 × 0.30  mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V

SKU: WEX25664W#B08-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€31,70
€25,30
€24,40

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€31,70 IVA esclusa

DESCRIPTION

Winstar COF 3.12 inch of standard OLED graphic display with Frame. This 256x64 OLED display is built-in SSD1322 driver IC with AA size 76.778 x 19.178 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16~17 BS0~BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
View area 78.78 × 21.18 mm
Active area 76.778 × 19.178  mm
Dot pitch 0.278 × 0.278 mm
Dot size 0.30 × 0.30  mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V

Specifiche di prodotto
Brand Winstar
Size 3.12"
Risoluzione 256x64
Area Attiva (mm) 76.77x19.17
Dot Size 0.27x0.27
Polarizzatore Glare
Colore White
Alimentazione 3V
Interfaccia Display 6800/8080/SPI
IC Controller Display SSD1322UR1
Struttura Costruttiva COF
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display FPC per ZIF Connector
Nr. Pin 30
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
