WF101-1280800LM#0SP3-FC

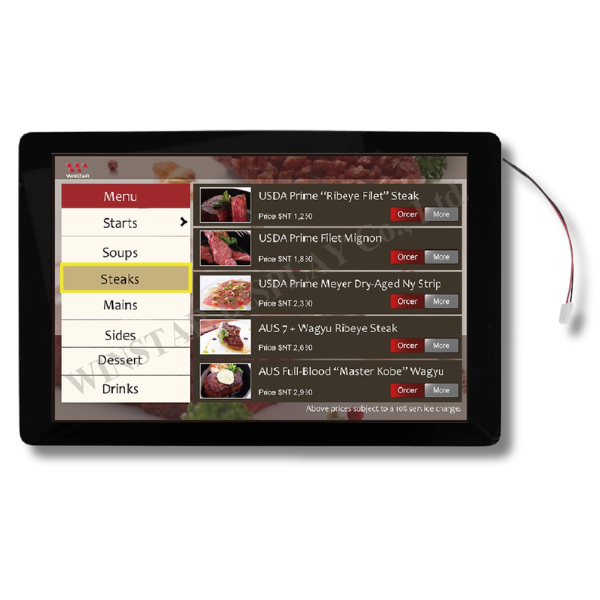

TFT 10.1" 1280x800 LCD Panel, Interface MIPI, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT928 IC)

DESCRIPTION

WF101-1280800LM#0SP3-FC TFT 10.1” is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 inch diagonally measured active display area with HD (1280 horizontal by 800 vertical pixel) resolution.

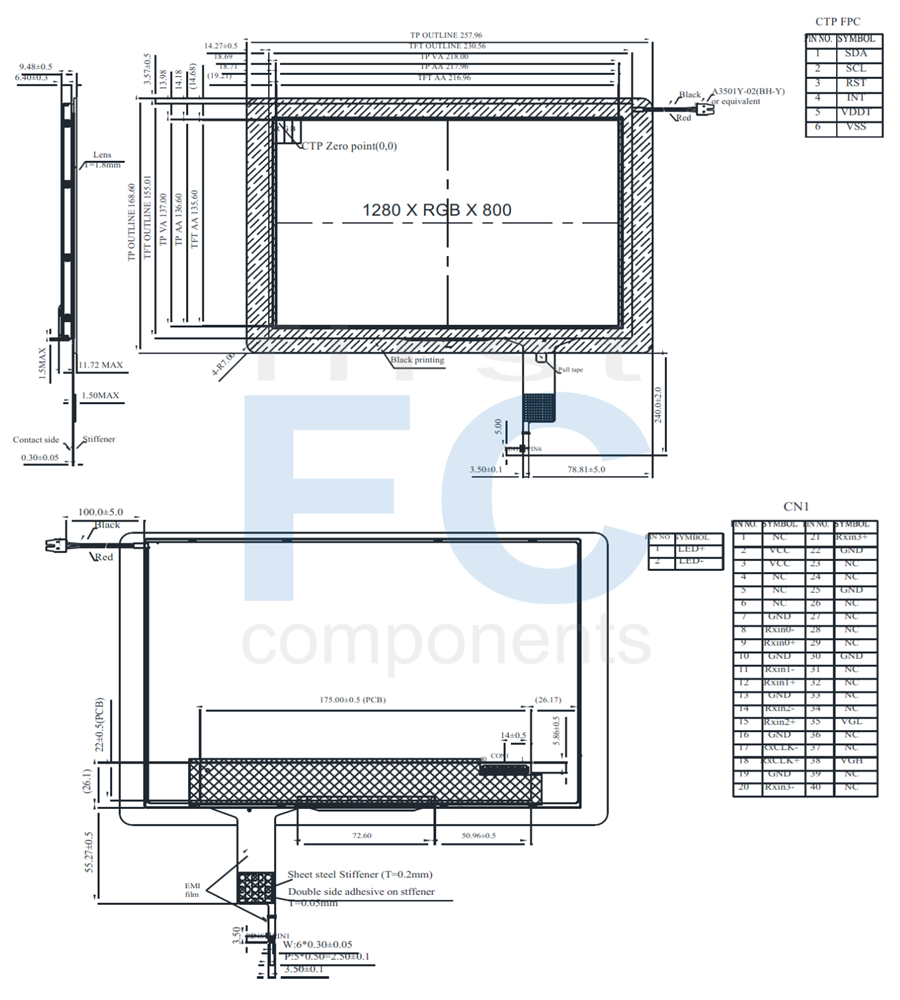

DRAWING





SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolI/OFunction
1 NC - No connection
2 VCC P Power Supply
3 VCC P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 D0N I MIPI data Input
9 D0P I
10 GND P Ground
11 D1N I MIPI data Input
12 D1P I
13 GND P Ground
14 D2N I MIPI data Input
15 D2P I
16 GND P Ground
17 CLKN I MIPI clock Input
18 CLKP I
19 GND P Ground
20 D3N I MIPI data Input
21 D3P I
22 GND P Ground
23 NC -  No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 NC - No connection
30 GND P Ground
31 NC - No connection
32 NC - No connection
33 NC - No connection
34 NC - No connection
35 VGL P Connect to stabilizing capacitor between VSSA and VGL.
36 NC - No connection
37 NC - No connection
38 VGH P Connect to stabilizing capacitor between VSSA and VGH.
39 NC - No connection
40 NC - No connection


Backlight Driving Part

Pin No.SymbolFunction
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode

CTP PIN Definition

Pin No.SymbolFunction
1 SDA I2C data input and output
2 SCL I2C clock input
3 RST External Reset, Low is active
4 INT Esternal interrupt to the host
5 VDDT Power Supply: + 3.3V
6 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 x 3(RGB) x 800 dots
Module dimension 257.96 × 168.6 × 11.72 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black , Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
TFT Drive IC EK79202D or Equivalent
Backlight Type LED,Normally White
Aspect Ratio 16:10
TFT Interface 4-Lanes MIPI
CTP Driver IC GT928 or equivalent
CCTP Interface I2C
CTP FW Version 80
CTP Resolution 1280*800
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
MinTypMax
Power Voltage VCC 3.0 3.3 3.5 V
VGH 17.5 18.0 18.5 V
VGL -11.5 -10.5 -10.0 V
VSP - 5.5 - V
VSN - -5.5 - V
Supply Voltage For Touch Logic VDDT 2.8 - 3.3 V


Current Consumption

ParameterSymbolValuesUnitRemark
MinTypMax
Current for Driver IGH - 7.7 - mA VGH= 18V
IGL - 7.7 - mA VGL = -10.5V
IVCC - 79 120 mA -
Current for TP IDDT - 14.0 21.0 mA
SKU: WF101-1280800LM#0SP3-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€118,70
€106,90
€100,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€118,70 IVA esclusa

DESCRIPTION

WF101-1280800LM#0SP3-FC TFT 10.1” is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10.1 inch diagonally measured active display area with HD (1280 horizontal by 800 vertical pixel) resolution.



DRAWING





SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolI/OFunction
1 NC - No connection
2 VCC P Power Supply
3 VCC P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 D0N I MIPI data Input
9 D0P I
10 GND P Ground
11 D1N I MIPI data Input
12 D1P I
13 GND P Ground
14 D2N I MIPI data Input
15 D2P I
16 GND P Ground
17 CLKN I MIPI clock Input
18 CLKP I
19 GND P Ground
20 D3N I MIPI data Input
21 D3P I
22 GND P Ground
23 NC -  No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 NC - No connection
30 GND P Ground
31 NC - No connection
32 NC - No connection
33 NC - No connection
34 NC - No connection
35 VGL P Connect to stabilizing capacitor between VSSA and VGL.
36 NC - No connection
37 NC - No connection
38 VGH P Connect to stabilizing capacitor between VSSA and VGH.
39 NC - No connection
40 NC - No connection


Backlight Driving Part

Pin No.SymbolFunction
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode

CTP PIN Definition

Pin No.SymbolFunction
1 SDA I2C data input and output
2 SCL I2C clock input
3 RST External Reset, Low is active
4 INT Esternal interrupt to the host
5 VDDT Power Supply: + 3.3V
6 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 x 3(RGB) x 800 dots
Module dimension 257.96 × 168.6 × 11.72 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black , Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
TFT Drive IC EK79202D or Equivalent
Backlight Type LED,Normally White
Aspect Ratio 16:10
TFT Interface 4-Lanes MIPI
CTP Driver IC GT928 or equivalent
CCTP Interface I2C
CTP FW Version 80
CTP Resolution 1280*800
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
MinTypMax
Power Voltage VCC 3.0 3.3 3.5 V
VGH 17.5 18.0 18.5 V
VGL -11.5 -10.5 -10.0 V
VSP - 5.5 - V
VSN - -5.5 - V
Supply Voltage For Touch Logic VDDT 2.8 - 3.3 V


Current Consumption

ParameterSymbolValuesUnitRemark
MinTypMax
Current for Driver IGH - 7.7 - mA VGH= 18V
IGL - 7.7 - mA VGL = -10.5V
IVCC - 79 120 mA -
Current for TP IDDT - 14.0 21.0 mA
Specifiche di prodotto
Brand Winstar
Size 10.1"
Risoluzione 1280x800
Area Attiva (mm) 216.96x135.60
Colore Full Color
Interfaccia Display MIPI
Display IC EK79202D
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT928
Preferred - Not Preferred Preferred
