WF121-1280800BL#A00-FC

TFT 12.1" 1280x800, LCD Module, Interface LVDS, 400cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

It is a 12.1 inch IPS TFT display. This IPS TFT display has a resolution of 1280x800 pixels and a brightness of 400 nits (typical value. It supports LVDS interfaces. The power supply voltage (VCC) for this TFT-LCD is from 3.0V to 3.6V, and the typical value is 3.3V.

The module can operate at temperatures from -20°C to +70°C; its storage temperatures range from -20°C to +70°C.

DRAWING

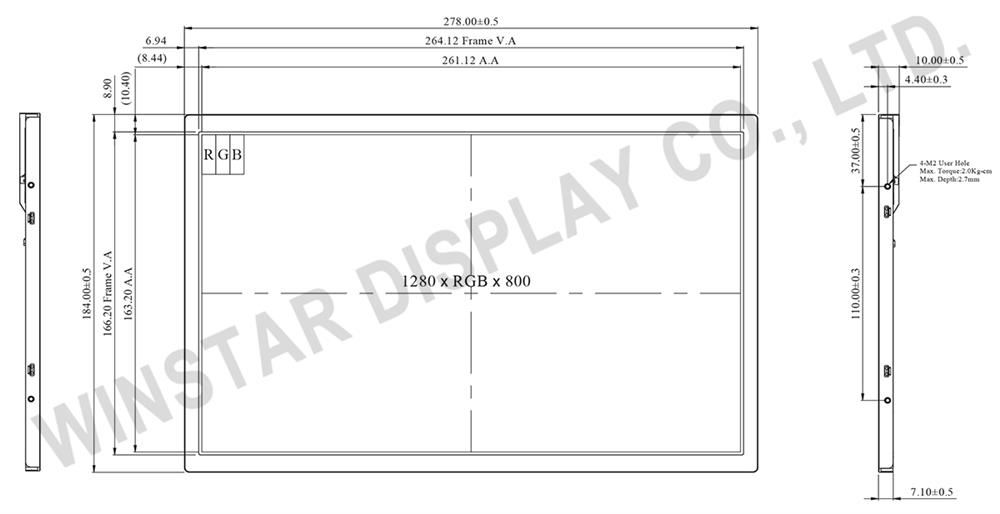

1280x800, 12.1 inch LVDS IPS TFT LCD Display - WF121BTXAPLNNA01

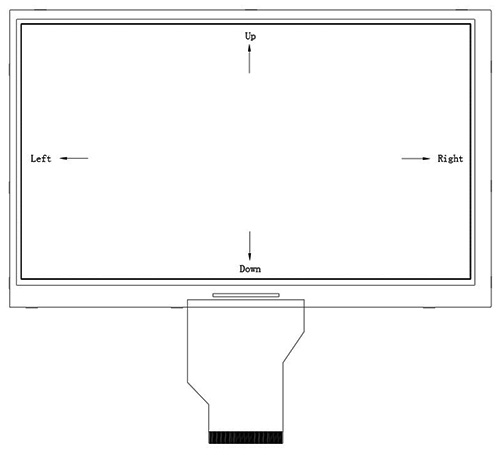

1280x800, 12.1 inch LVDS IPS TFT LCD Display - WF121BTXAPLNNA02

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	12V	LED power
2	12V	LED power
3	12V	LED power
4	12V	LED power
5	ENLED	Enable pin
6	Dimming	Backlight Adjust
7	GND	Ground
8	GND	Ground
9	VCC	Power supply：+3.3V
10	VCC	Power supply：+3.3V
11	GND	Ground
12	GND	Ground
13	RX0-	Negative transmission data of pixel 0
14	RX0+	Positive transmission data of pixel 0
15	GND	Ground
16	RX1-	Negative transmission data of pixel 1
17	RX1+	Positive transmission data of pixel 1
18	GND	Ground
19	RX2-	Negative transmission data of pixel 2
20	RX2+	Positive transmission data of pixel 2
21	GND	Ground
22	RXCLK-	Negative of clock
23	RXCLK+	Positive of clock
24	GND	Ground
25	RX3-	Negative transmission data of pixel 3
26	RX3+	Positive transmission data of pixel 3
27	GND	Ground
28	SEL6/8	LVDS 6/8 bit select function control
		Low or NC → 6 bit Input Mode
		High → 8bit Input Mode
29	GND	Ground
30	GND	Ground

General Specifications

Item	Dimension	Unit
Dot Matrix	1280 x R.G.B. x 800	dots
Module dimension	278.0184.010.0	mm
Active Area (AA)	261.12*163.2	mm
Pixel pitch	0.204 x 0.204	mm
LCD type	TFT, Normally Black, Transmissive
Surface Treatment	AG type, 3H hard coating
Backlight Type	LED ,Normally White
TFT Interface	LVDS
Aspect Ratio	16：9
Touch Panel	Without Touch Panel

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-20	－	+70	℃

Electrical Characteristics

LCD ELETRONICS SPECIFICATION

Parameter		Symbol	Value			Unit
Parameter		Symbol	Min	Typ	Max	Unit
Power Supply Voltage		VCC	3.0	3.3	3.6	V
Permissive Ripple Voltage		VRP	-	50	-	mV
Rush Current		IRUSH	1.5			A
Initial Stage Current		IIS	-	-	1.0	A
Power Supply Current	White	- -	-	530	630	mA
Power Supply Current	Black	- -	-	350	420	mA
LVDS Differential Input High Threshold		VTH(LVDS)	+100	-	-	mV
LVDS Differential Input Low Threshold		VTL(LVDS)	-	-	-100	mV
LVDS Common Mode Voltage		VCM	1.125	-	1.375	V
LVDS Differential Input Voltage		\|VID\|	100	-	600	mV
Terminating Resistor		RT	-	100	-	Ohm
