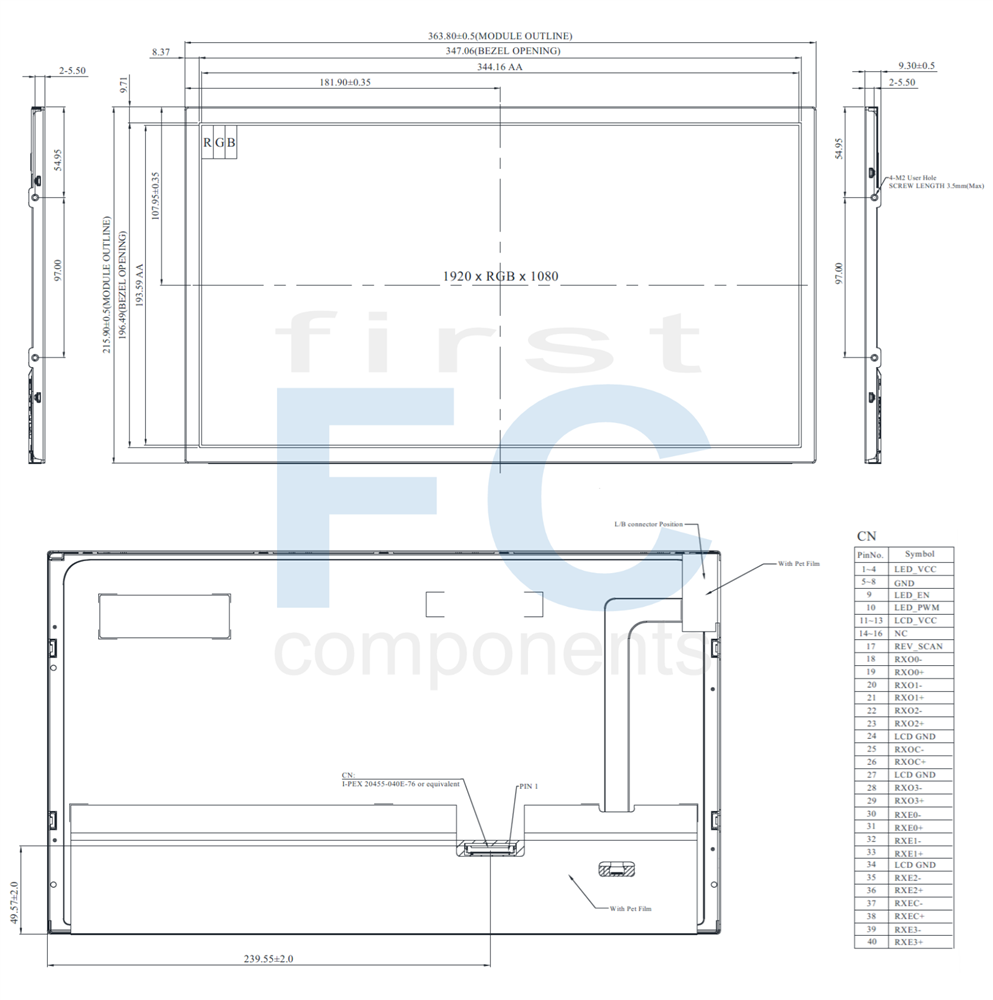

| Pin | Name | Description |
| 1~4 |
LED _Vcc |
+12V Vi power supply |
| 5~8 |
GND |
Ground |
| 9 |
LED_EN |
Enable pin |
| 10 |
LED_PWM |
Backlight Adjust |
| 11~13 |
LCD_VCC |
LCD logic and driver power 3.3V |
| 14~16 |
NC |
Not connection, this pin should be open |
| 17 |
REV_SCAN |
Low → Normal Mode. High → Horizontal & Vertical Reverse Scan |
| 18 |
RXO0- |
Negative LVDS differential data input. Channel O0 (odd) |
| 19 |
RXO0+ |
Positive LVDS differential data input. Channel O0 (odd) |
| 20 |
RXO1- |
Negative LVDS differential data input. Channel O1 (odd) |
| 21 |
RXO1+ |
Positive LVDS differential data input. Channel O1 (odd) |
| 22 |
RXO2- |
Negative LVDS differential data input. Channel O2 (odd) |
| 23 |
RXO2+ |
Positive LVDS differential data input. Channel O2 (odd) |
| 24 |
LCD GND |
LCD logic and driver ground |
| 25 |
RXOC- |
Negative LVDS differential clock input. (odd) |
| 26 |
RXOC+ |
Positive LVDS differential clock input. (odd) |
| 27 |
LCD GND |
LCD logic and driver ground |
| 28 |
RXO3- |
Negative LVDS differential data input. Channel O3(odd) |
| 29 |
RXO3+ |
Positive LVDS differential data input. Channel O3 (odd) |
| 30 |
RXE0- |
Negative LVDS differential data input. Channel E0 (even) |
| 31 |
RXE0+ |
Positive LVDS differential data input. Channel E0 (even) |
| 32 |
RXE1- |
Negative LVDS differential data input. Channel E1 (even) |
| 33 |
RXE1+ |
Positive LVDS differential data input. Channel E1 (even) |
| 34 |
LCD GND |
LCD logic and driver ground |
| 35 |
RXE2- |
Negative LVDS differential data input. Channel E2 (even) |
| 36 |
RXE2+ |
Positive LVDS differential data input. Channel E2 (even) |
| 37 |
RXEC- |
Negative LVDS differential clock input. (even) |
| 38 |
RXEC+ |
Positive LVDS differential clock input. (even) |
| 39 |
RXE3- |
Negative LVDS differential data input. Channel E3 (even) |
| 40 |
RXE3+ |
Positive LVDS differential data input. Channel E3 (even) |
