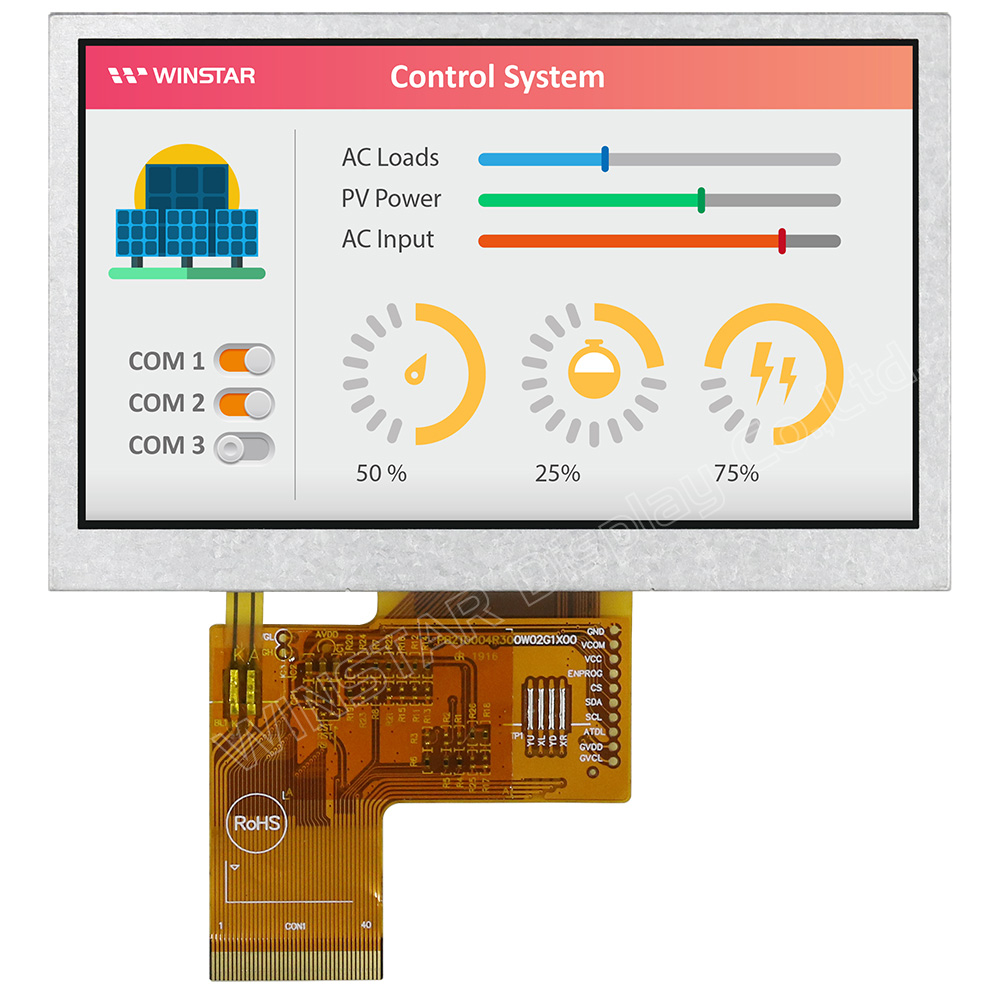

High Brightness 4.3 inch wide view angle IPS TFT LCD module 480x272 pixels. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 1000 nits (typical value). Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional.
This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.
Per quantita’ maggiori di 25pz prego invii la richiesta a firstname.lastname@example.org o chiami il +39 0332 1888005
