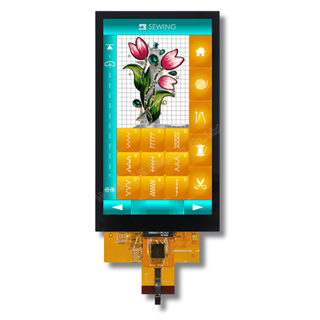

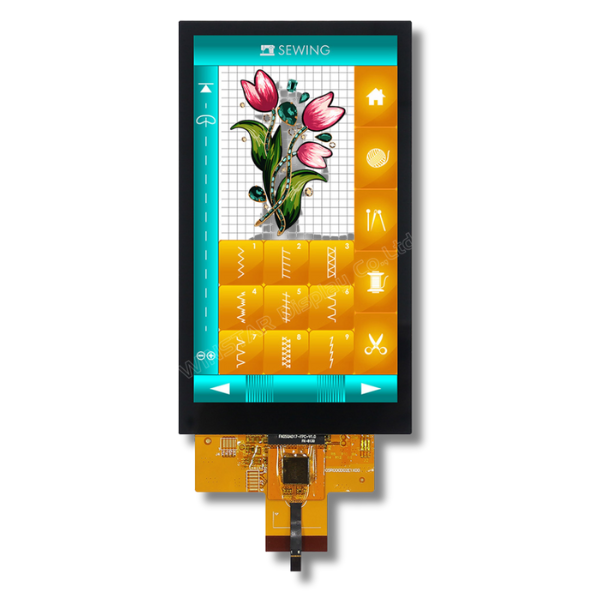

WF50-7201280DM#0SPA3-FC

TFT 5" 720x1280 Portrait LCD Panel, Interface MIPI DSI IC ILI9881C, High brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT928 IC), Optical Bonding (OCA)

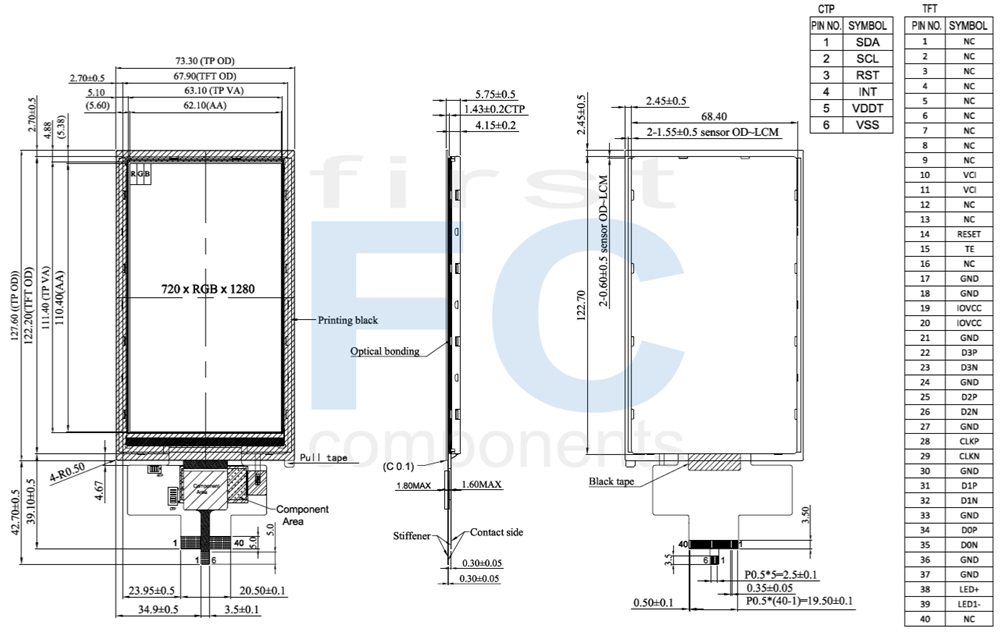

DRAWING

SPECIFICATIONS

General Specifications

1	LCD Type	TFT
2	Viewing Angle	80/80/80/80
3	Surface	Glare
4	Screen size	5.0" (diagonal)
5	Display format	720xRGBx1280
6	Operating temperature	-20°C~70°C
7	Storage temperature	-30°C~80°C
8	Active area	62.1(H)x110.4(V) mm
9	Pixel pitch	0.08625(H)x0.08625(V) mm
10	Color arrangement	RGB-STRIPE
11	Brightness	800min, 900 typ cd/m²
12	CTP IC	GT928 or equivalent

SKU: WF50-7201280DM#0SPA3-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€47,70

€39,80

€33,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€47,70 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

General Specifications

1	LCD Type	TFT
2	Viewing Angle	80/80/80/80
3	Surface	Glare
4	Screen size	5.0" (diagonal)
5	Display format	720xRGBx1280
6	Operating temperature	-20°C~70°C
7	Storage temperature	-30°C~80°C
8	Active area	62.1(H)x110.4(V) mm
9	Pixel pitch	0.08625(H)x0.08625(V) mm
10	Color arrangement	RGB-STRIPE
11	Brightness	800min, 900 typ cd/m²
12	CTP IC	GT928 or equivalent

Specifiche di prodotto

Brand	Winstar
Size	5"
Risoluzione	720x1280
Area Attiva (mm)	62.10x110.40
Colore	Full Color
Interfaccia Display	MIPI
Display IC	ILI9881C
Angolo Visione	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT928
Preferred - Not Preferred	Preferred

Download

Esegui il Login o Registrati per poter visualizzare PDF.

Nome completo

La tua email

Richiesta

Specifiche di prodotto

Brand	Winstar
Size	5"
Risoluzione	720x1280
Area Attiva (mm)	62.10x110.40
Colore	Full Color
Interfaccia Display	MIPI
Display IC	ILI9881C
Angolo Visione	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	40
Passo Pin	0.5mm
IC Controller Touch Panel	GT928
Preferred - Not Preferred	Preferred
