WF57-320240WPD#A05-FC

Name: WF57-320240WPD#A05-FC
SKU: WF57-320240WPD#A05-FC
Price: 81.70 EUR
Availability: InStock

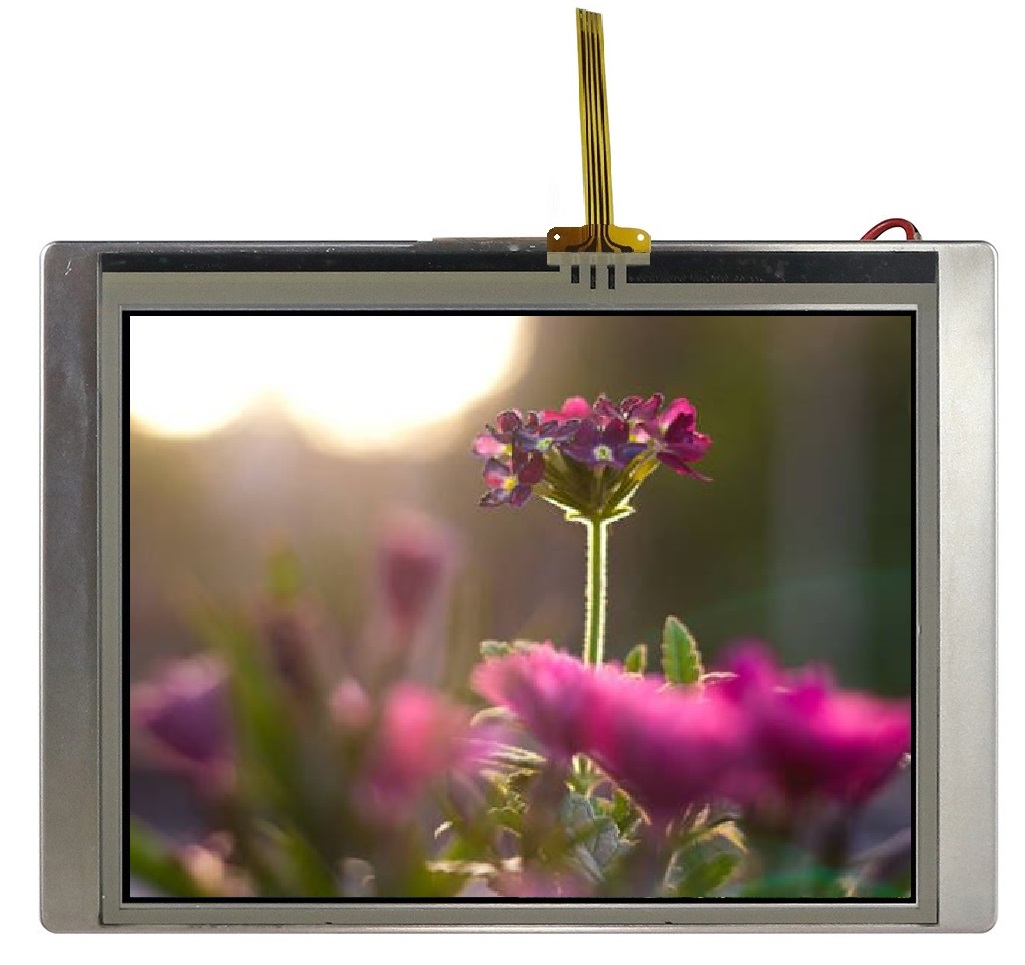

TFT 5.7" 320x240 LCD Panel, Interface RGB, 350cd/m², Power board (33pin), Frame, Resistive touch panel (with stiffener TST0005R7D1241XXXX10), Anti-Glare Polarizer

Brand: Winstar

Cod.: WF57-320240WPD#A05-FC

Kit accessori

FFC Cable
Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€81,70

€73,50

€69,10

Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€81,70 IVA esclusa

Quantità:

i h

Overview
Specifiche
Download
Contattaci

DESCRIPTION

TFT 5.7” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

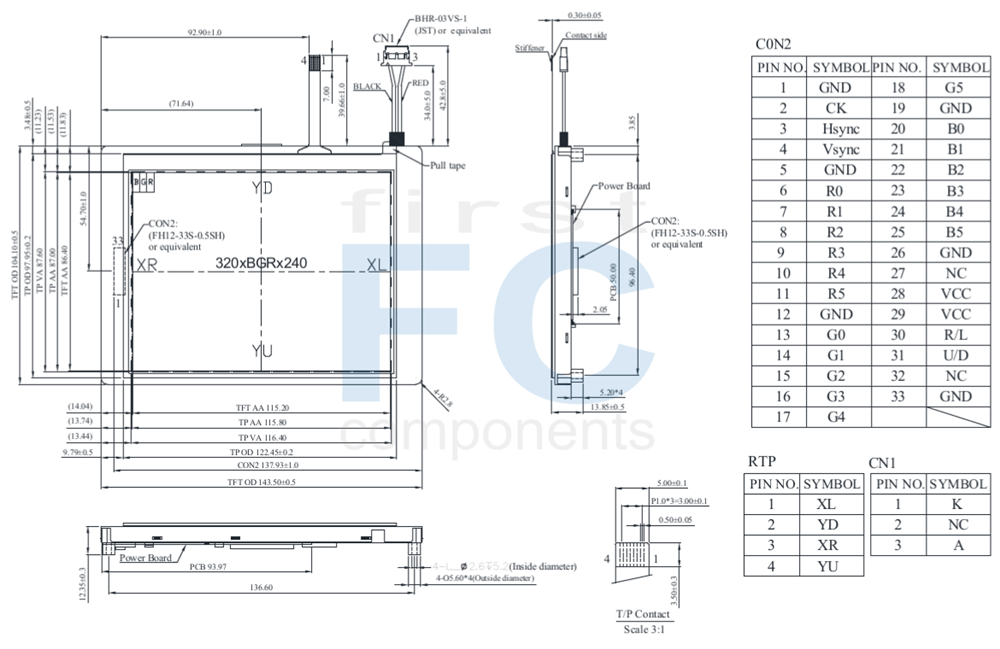

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.7	inch
Dot Matrix	320 × RGB × 240(TFT)	dots
Module dimension	143.5(W) × 104.1(H) × 13.85(D)	mm
Active area	115.2 × 86.4	mm
Pixel Pitch	0.12 × 0.36	mm
LCD type	TFT, Normally White, Transmissive
Drive IC	HX8218+HX8615 or equivalent
Interface	18-bit RGB
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Aspect Ratio	4:3
Backlight Type	LED, Normally White
With/Without TP	With RTP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	-	3.0	3.3	3.6	V
Supply Current For LCM	ICC	-	-	110	170	mA
Power Consumption	-	-	-	363	612	mW

LED driving conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED current	-	-	140	-	mA
Power Consumption	-	1260	-	1470	mW
LED voltage	VBL+	9.0	-	10.5	V
LED Life Time	-	50,000	-	-	Hr

Interface Pin Function

LCM PIN Definition

NO	Symbol	Function
1	GND	Ground
2	CK	Clock signal for sampling each data signal (DCLK)
3	Hsync	Horizontal synchronous signal
4	Vsync	Vertical synchronous signal
4	GND	Ground
6	R0	Red Data bit (LSB)
7	R1	Red Data bit
8	R2	Red Data bit
9	R3	Red Data bit
10	R4	Red Data bit
11	R5	Red Data bit (MSB)
12	GND	Ground
13	G0	Green Data bit (LSB)
14	G1	Green Data bit
15	G2	Green Data bit
16	G3	Green Data bit
17	G4	Green Data bit
18	G5	Green Data bit (MSB)
19	GND	Ground
20	B0	Blue Data bit (LSB)
21	B1	Blue Data bit
22	B2	Blue Data bit
23	B3	Blue Data bit
24	B4	Blue Data bit
25	B5	Blue Data bit (MSB)
26	GND	Ground
27	NC	No connect
28	VCC	+3.3V power supply
29	VCC	+3.3V power supply
30	R/L	Selection signal for horizontal scanning direction (L: Normally H: Right-and-Left reversal)
31	U/D	Selection signal for vertical scanning direction (H: Normally L: Up-and-Down reversal)
32	NC	No connect
33	GND	Ground

Specifiche di prodotto

Size	5.7"
Resolution	320x240
Active Area (mm)	115.20x86.40
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	TN
Frame	Yes
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Data Connection	ZIF Connector
Pin Nr.	33
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
