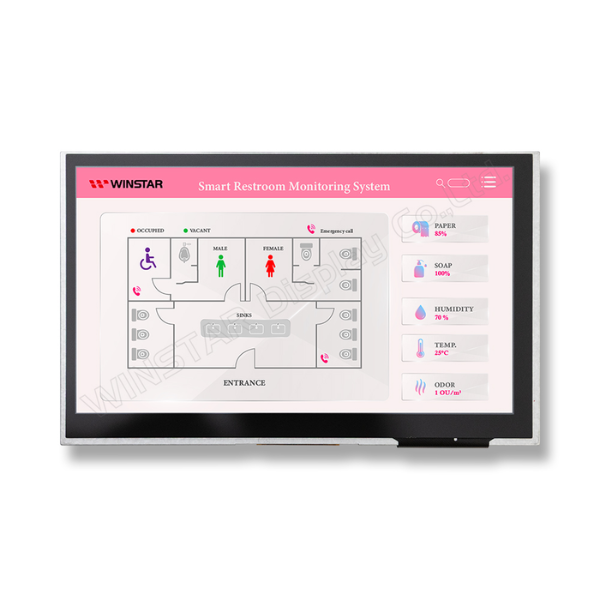

WF70-1024600A8H#EP3-FC is a 7-inch HDMI TFT LCD display module featuring a 1024 x 600 resolution, IPS technology, and a projected capacitive touch panel (PCAP). The module integrates a control board with the LT6911C controller IC and features an HDMI connector supporting DVI signal input, providing a convenient display solution for embedded system integration.

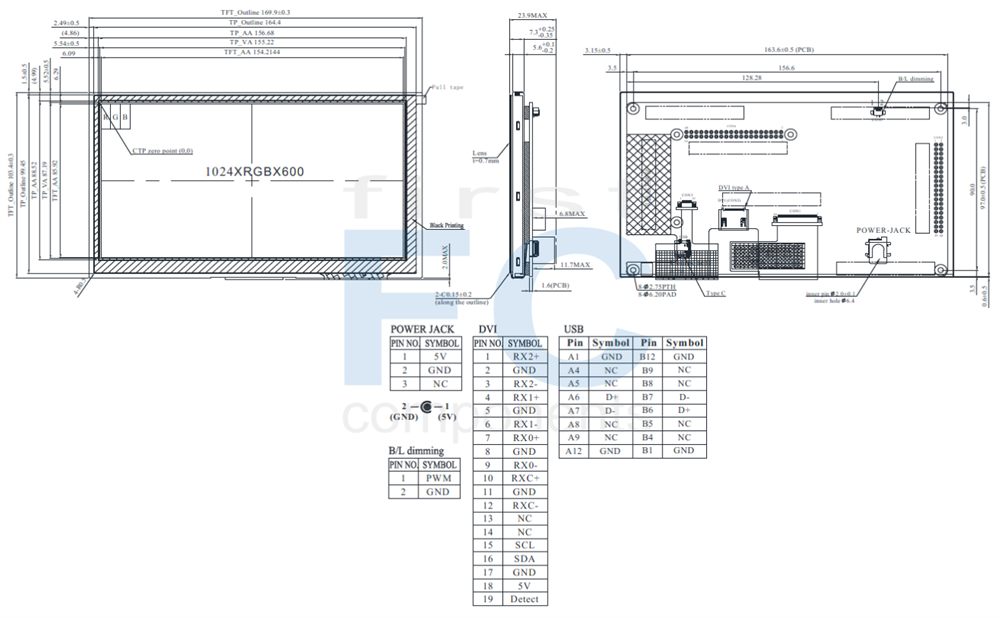

The 7-inch TFT display provides a typical brightness of 450 cd/m² and an 85/85/85/85-degree viewing angle. The integrated PCAP touch panel uses the ILI2130 controller IC with a USB interface and supports 1-point touch as standard, with 2-point or other touch options available upon request. The module measures 169.9 x 103.4 x 23.9 mm, with an active area of 154.2144 x 85.92 mm. It operates within a temperature range of -20°C to +70°C and can be stored from -30°C to +80°C.
PCBA Tested for Class B EMI Performance
Electromagnetic interference (EMI) is an important consideration when integrating display modules into electronic systems. To address EMI performance at the board level, the integrated PCBA of WF70-1024600A8H#EP3-FC has undergone third-party EMI testing and passed Class B level requirements. This provides system developers with a display platform whose PCBA EMI performance has been evaluated during product development, helping support integration into applications where electromagnetic compatibility is an important design consideration.
Applications
With its integrated control board, HDMI connector, USB PCAP touch interface, and tested PCBA EMI performance, WF70-1024600A8H#EP3-FC is suitable for smart home systems, security monitoring equipment, bathroom control and display panels, home entertainment systems, storage management systems, and other embedded HMI applications.
