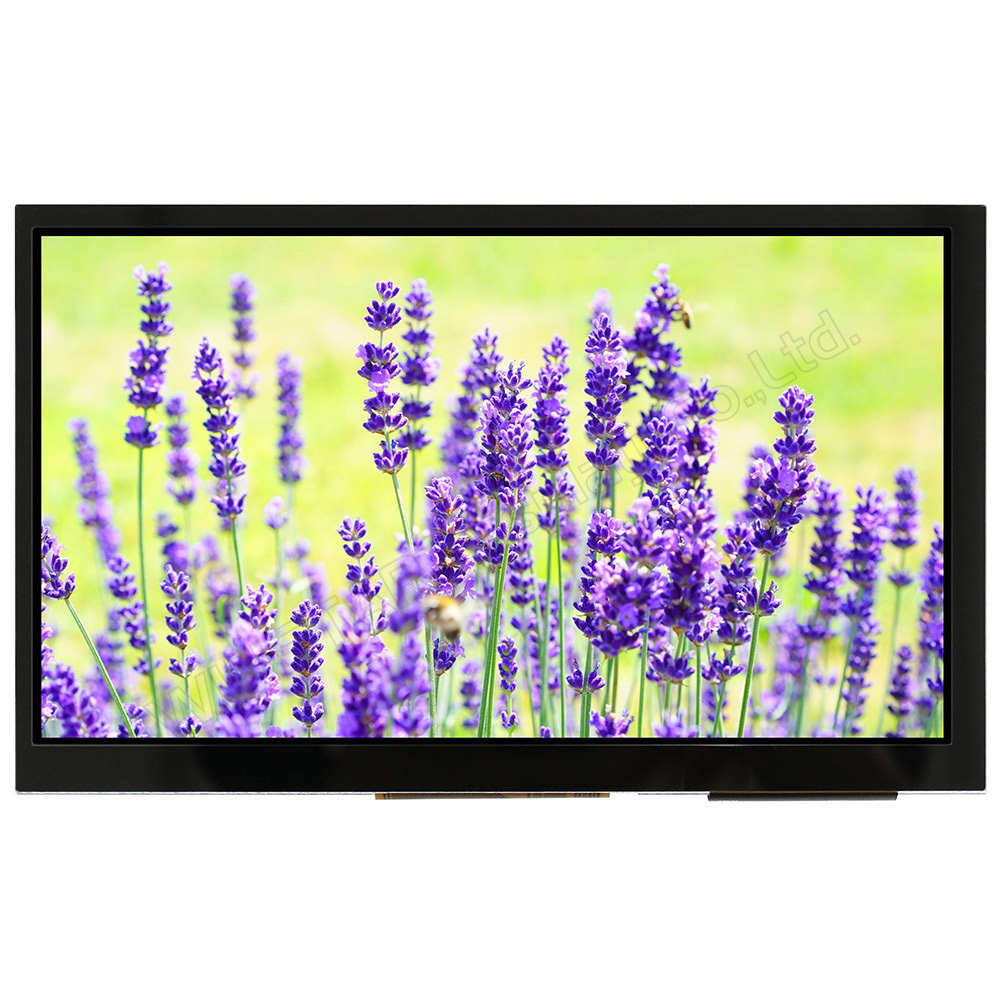

WF70-800480A2816D#A03-FC

TFT 7'' 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 350cd/m², Capacitive touch panel I2C interface (GG, ILI2130 IC) (LC)

DESCRIPTION

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF70-800480A2816D#003-FC in 'Related Product' section on the bottom page.

The 7 inch TFT Screen Display is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165x100 mm and including a Projected capacitive touch screen on module.

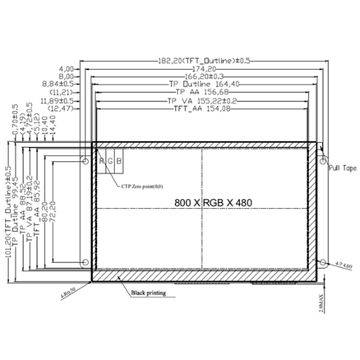

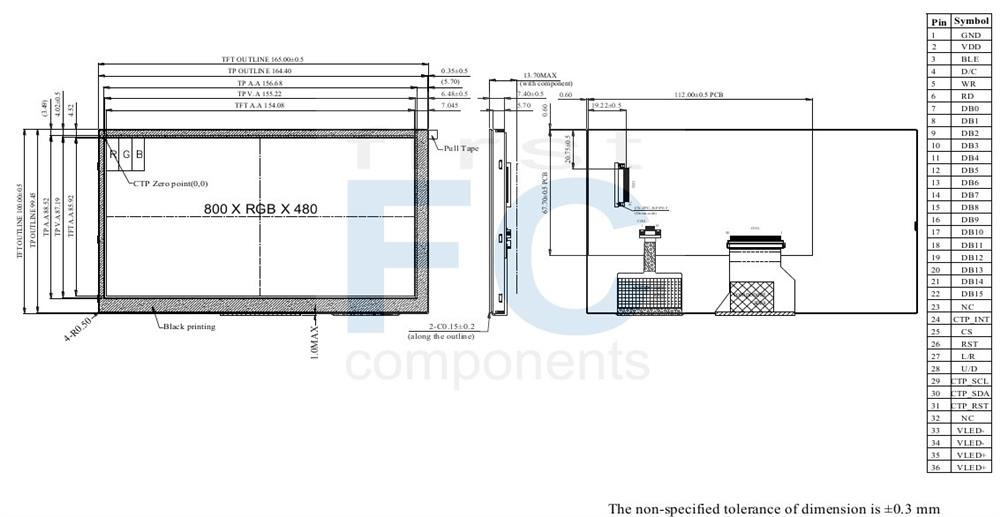

DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT CTP_ External interrupt to the host
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 CTP_SCL CTP_SPI Slave mode, chip select, active low / I2C clock input
30 CTP_SDA CTP_ SPI Slave mode, data input / I2C data input and output
31 CTP_RST CTP_ External Reset, Low is active
32 NC No connect
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WF70-800480A2816D#A03-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€82,20
€72,60
€65,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€82,20 IVA esclusa

DESCRIPTION

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF70-800480A2816D#003-FC in 'Related Product' section on the bottom page.

The 7 inch TFT Screen Display is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165x100 mm and including a Projected capacitive touch screen on module.



DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23 NC No connect
24 CTP_INT CTP_ External interrupt to the host
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 CTP_SCL CTP_SPI Slave mode, chip select, active low / I2C clock input
30 CTP_SDA CTP_ SPI Slave mode, data input / I2C data input and output
31 CTP_RST CTP_ External Reset, Low is active
32 NC No connect
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 154.08x85.92
Colore Full Color
Interfaccia Display MCU (Parallel)
IC Controller Display SSD1963
Angolo Visione TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 154.08x85.92
Colore Full Color
Interfaccia Display MCU (Parallel)
IC Controller Display SSD1963
Angolo Visione TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 36
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
