RECOMMENDED ONLY AS SPARE PARTS
For new projects please contact us at [email protected].
DESCRIPTION
7 inch supporting HDMI (Only DVI) signal TFT-LCD module with Projected Capacitive Touch Panel (PCAP); it’s made of WVGA 800x480 resolution. It has a control board which supports HDMI signal interface and a 40-pin GPIO connector on board; it is designed to make Raspberry Pi 1~3 & Pi3B+ versions usage become easily. This display has a USB interface Capacitive Touch Screen overlay on TFT panel. We designed a connector (P/N WWHDMI-00#) and USB cable for option, the customers can use it to connect the module with your Raspberry Pi directly. Please note, this part no. does not include any HDMI connector or USB cable.
The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface, as to the PCAP (CTP) IC is ILI2130 from April 2021 (FT5426 until April 2021), it supports USB interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock.

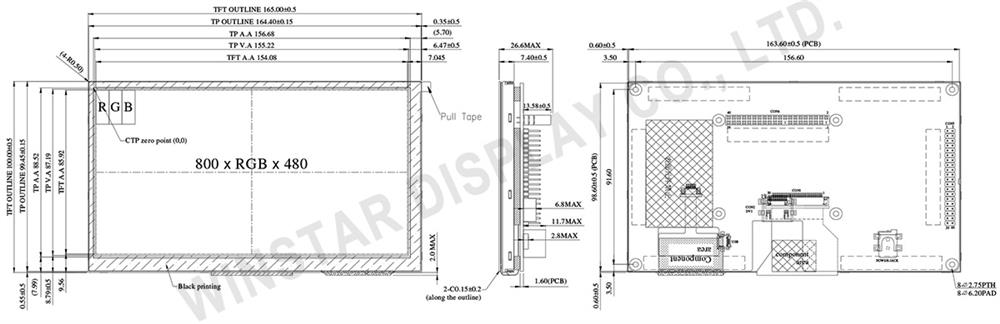

DRAWING

SPECIFICATIONS
Interface
LCM PIN Definition(CON6)
| Pin | Symbol | Function |
| 1 |
NC |
No connection |
| 2 |
5V |
Raspberry Pi:Power 5V |
| 3 |
GPIO02 |
Raspberry Pi:GPIO02 |
| 4 |
5V |
Raspberry Pi:Power 5V |
| 5 |
GPIO03 |
Raspberry Pi:GPIO03 |
| 6 |
GND |
Raspberry Pi:GND |
| 7 |
GPIO04 |
Raspberry Pi:GPIO04 |
| 8 |
GPIO14 |
Raspberry Pi:GPIO14 |
| 9 |
GND |
Raspberry Pi:GND |
| 10 |
GPIO15 |
Raspberry Pi:GPIO15 |
| 11 |
GPIO17 |
Raspberry Pi:GPIO17 |
| 12 |
GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 |
GPIO27 |
Raspberry Pi:GPIO27 |
| 14 |
GND |
Raspberry Pi:GND |
| 15 |
GPIO22 |
Raspberry Pi:GPIO22 |
| 16 |
GPIO23 |
Raspberry Pi:GPIO23 |
| 17 |
NC |
No connection |
| 18 |
GPIO24 |
Raspberry Pi:GPIO24 |
| 19 |
GPIO10 |
Raspberry Pi:GPIO10 |
| 20 |
GND |
Raspberry Pi:GND |
| 21 |
GPIO09 |
Raspberry Pi:GPIO09 |
| 22 |
GPIO25 |
Raspberry Pi:GPIO25 |
| 23 |
GPIO11 |
Raspberry Pi:GPIO11 |
| 24 |
GPIO08 |
Raspberry Pi:GPIO08 |
| 25 |
GND |
Raspberry Pi:GND |
| 26 |
GPIO07 |
Raspberry Pi:GPIO07 |
| 27 |
ID_SD |
Raspberry Pi:ID_SD |
| 28 |
ID_SC |
Raspberry Pi:ID_SC |
| 29 |
GPIO05 |
Raspberry Pi:GPIO05 |
| 30 |
GND |
Raspberry Pi:GND |
| 31 |
GPIO06 |
Raspberry Pi:GPIO06 |
| 32 |
GPIO12 |
Raspberry Pi:GPIO12 |
| 33 |
GPIO13 |
Raspberry Pi:GPIO13 |
| 34 |
GND |
Raspberry Pi:GND |
| 35 |
GPIO19 |
Raspberry Pi:GPIO19 |
| 36 |
GPIO16 |
Raspberry Pi:GPIO16 |
| 37 |
GPIO26 |
Raspberry Pi:GPIO26 |
| 38 |
GPIO20 |
Raspberry Pi:GPIO20 |
| 39 |
GND |
Raspberry Pi:GND |
| 40 |
GPIO21 |
Raspberry Pi:GPIO21 |
LCM PIN Definition (CON5)
| Pin | Symbol | Function |
| 1 |
3.3V |
TFT Module Power limit can only output 3.3V,100mA |
| 2 |
5V |
Raspberry Pi:Power 5V |
| 3 |
GPIO02 |
Raspberry Pi:GPIO02 |
| 4 |
5V |
Raspberry Pi:Power 5V |
| 5 |
GPIO03 |
Raspberry Pi:GPIO03 |
| 6 |
GND |
Raspberry Pi:GND |
| 7 |
GPIO04 |
Raspberry Pi:GPIO04 |
| 8 |
GPIO14 |
Raspberry Pi:GPIO14 |
| 9 |
GND |
Raspberry Pi:GND |
| 10 |
GPIO15 |
Raspberry Pi:GPIO15 |
| 11 |
GPIO17 |
Raspberry Pi:GPIO17 |
| 12 |
GPIO18 |
Raspberry Pi:GPIO18 (Backlight Enable) |
| 13 |
GPIO27 |
Raspberry Pi:GPIO27 |
| 14 |
GND |
Raspberry Pi:GND |
| 15 |
GPIO22 |
Raspberry Pi:GPIO22 |
| 16 |
GPIO23 |
Raspberry Pi:GPIO23 |
| 17 |
3.3V |
TFT Module Power limit can only output 3.3V,100mA |
| 18 |
GPIO24 |
Raspberry Pi:GPIO24 |
| 19 |
GPIO10 |
Raspberry Pi:GPIO10 |
| 20 |
GND |
Raspberry Pi:GND |
| 21 |
GPIO09 |
Raspberry Pi:GPIO09 |
| 22 |
GPIO25 |
Raspberry Pi:GPIO25 |
| 23 |
GPIO11 |
Raspberry Pi:GPIO11 |
| 24 |
GPIO08 |
Raspberry Pi:GPIO08 |
| 25 |
GND |
Raspberry Pi:GND |
| 26 |
GPIO07 |
Raspberry Pi:GPIO07 |
| 27 |
ID_SD |
Raspberry Pi:ID_SD |
| 28 |
ID_SC |
Raspberry Pi:ID_SC |
| 29 |
GPIO05 |
Raspberry Pi:GPIO05 |
| 30 |
GND |
Raspberry Pi:GND |
| 31 |
GPIO06 |
Raspberry Pi:GPIO06 |
| 32 |
GPIO12 |
Raspberry Pi:GPIO12 |
| 33 |
GPIO13 |
Raspberry Pi:GPIO13 |
| 34 |
GND |
Raspberry Pi:GND |
| 35 |
GPIO19 |
Raspberry Pi:GPIO19 |
| 36 |
GPIO16 |
Raspberry Pi:GPIO16 |
| 37 |
GPIO26 |
Raspberry Pi:GPIO26 |
| 38 |
GPIO20 |
Raspberry Pi:GPIO20 |
| 39 |
GND |
Raspberry Pi:GND |
| 40 |
GPIO21 |
Raspberry Pi:GPIO21 |
POWER JACK
| Pin No. | Symbol | I/O | Function |
| 1 |
5V |
P |
Power Supply (5V) |
| 2 |
GND |
P |
Ground |
| 3 |
NC |
|
No connection |
HDMI
| Pin No. | Symbol | I/O | Function |
| 1 |
Rx2+ |
I |
+LVDS Differential Data Input |
| 2 |
GND |
P |
Ground |
| 3 |
Rx2- |
I |
-LVDS Differential Data Input |
| 4 |
Rx1+ |
I |
+LVDS Differential Data Input |
| 5 |
GND |
P |
Ground |
| 6 |
Rx1- |
I |
-LVDS Differential Data Input |
| 7 |
Rx0+ |
I |
+LVDS Differential Data Input |
| 8 |
GND |
P |
Ground |
| 9 |
Rx0- |
I |
-LVDS Differential Data Input |
| 10 |
RxC+ |
I |
+LVDS Differential Clock Input |
| 11 |
GND |
P |
Ground |
| 12 |
RxC- |
I |
-LVDS Differential Clock Input |
| 13-14 |
NC |
- |
No connection |
| 15 |
SCL |
I/O |
DDC(Data Display Channel) Clock |
| 16 |
SDA |
I/O |
DDC(Data Display Channel) Data |
| 17 |
GND |
P |
Ground |
| 18 |
5V |
P |
Power Supply |
| 19 |
Detect |
I/O |
Hot plug detect |
I: input, O: output, P: Power
USB
| Pin No. | Symbol | I/O | Function |
| 1 |
5V |
P |
Power Supply |
| 2 |
D- |
I/O |
USB Data - |
| 3 |
D+ |
I/O |
USB Data + |
| 4 |
NC |
- |
No connection |
| 5 |
GND |
P |
Ground |
General Specifications
| Item | Dimension | Unit |
| Size |
7.0 |
inch |
| Dot Matrix |
800 × RGB × 480(TFT) |
dots |
| Module dimension |
165.0(W) × 100(H) × 26.6(D) |
mm |
| Active area |
154.08 × 85.92 |
mm |
| Dot pitch |
0.0642 × 0.179 |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| View Direction |
12 o'clock |
| Gray Scale Inversion Direction |
6 o'clock |
| Aspect Ratio |
16:9 |
| Controller IC |
TFP401 or equivalent |
| Backlight Type |
LED, Normally White |
| Interface |
Support HDMI Connector (Only DVI Signal) |
| PCAP IC |
ILI2130 from April 2021 (FT5426 until April 2021) |
| PCAP Interface |
USB |
| PCAP FW Version |
03 |
| Touch Panel |
With PCAP |
| Surface |
Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Specifiche di prodotto
|
Size
|
7" |
|
Resolution
|
800x480 |
|
Active Area (mm)
|
154.08x85.92 |
|
Color
|
Full Color |
|
Display Interface
|
HDMI |
|
View Angle
|
TN |
|
Sunlight Readable
|
High 601~1200cd/m² |
|
Frame
|
No |
|
Touch Panel
|
Capacitive |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
HDMI Connector / Raspberry Connector |
|
Touch Panel IC Controller
|
ILI2130 |
|
Preferred - Not Preferred
|
Not Preferred |
