WFN0240DA2#0NX0-FC

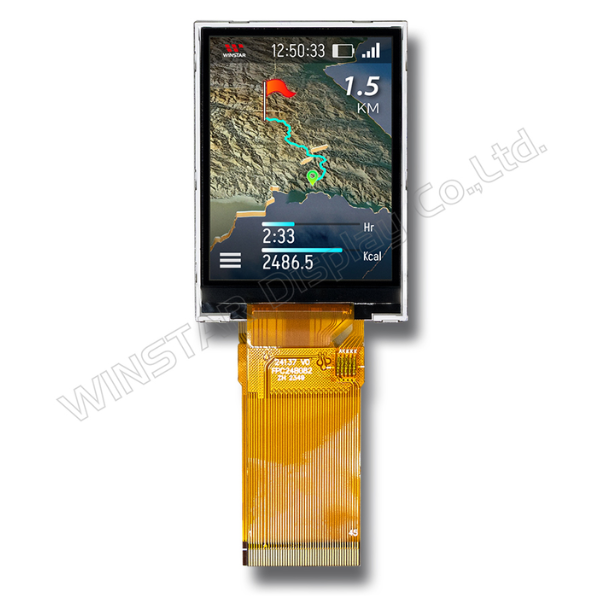

Immagine di WFN0240DA2#0NX0-FC Immagine di WFN0240DA2#0NX0-FC
TFT 2.4" 240x320 Portrait LCD Panel, Transflective, Interface MCU (RGB/Parallel/SPI) IC ST7789, 250cd/m², No touch

DESCRIPTION

The WINSTAR WFN0240DA2#0NX0-FC is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a transflective type TFT-LCD Panel, driver circuit, back-light unit. The resolution of a 2.4’TFT-LCD contains 240X320 pixels, and can display up to 65K/262K colors.



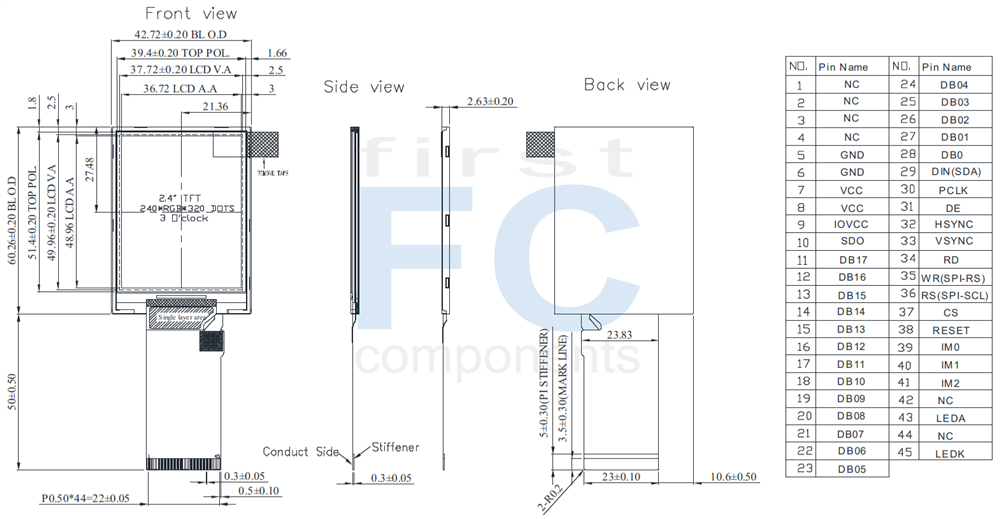

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72 × 60.26 × 2.63 mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transflective
Viewing Direction 3 O'clock
TFT Interface 8/9/16/18Bit MCU
3/4SPI+16/18Bit RGB
3-line/4-line Serial
Backlight Type LED, Normally White
TFT Driver IC ST7789 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +60 ℃
Storage Temperature TST -30 － +70 ℃



Electrical Characteristics

Operating conditions

CharacteristicsSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.4 3.3 3.6 V
Supply Voltage (Logic) IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 5 10 mA
Level input voltage VIH 0.7 IOVCC   IOVCC V
VIL GND   0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC   IOVCC V
VOL GND   0.2 IOVCC V


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 80 - mA
LED voltage VLEDA 2.7 3.1 3.3 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin NoSymbolDescriptionI/O
1 NC No connection --
2 NC No connection --
3 NC No connection --
4 NC No connection --
5 GND Ground. P
6 GND Ground. P
7 VCC Supply voltage(3.3V). I
8 VCC Supply voltage(3.3V). I
9 IOVCC Power Supply for I/O System. I
10 SDO SPI interface output pin.
-The data is output on the falling edge of the SCL signal.
-If not used, let this pin open.		 O
11-28 DB17-DB0 18-bit parallel bi-directional data bus for MCU system and RGB i
nterface mode. Fix to GND level when not in use		 I/O
29 DIN(SDA) Serial input signal.
The data is latched on the rising edge of the SCL signal. fix this pin at IOVCC or GND when not in use.		 I/O
30 PCLK Dot clock signal for RGB interface operation.
Fix this pin at IOVCC or GND when not in use.		 I
31 DE Data enable signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
32 HSYNC Line synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
33 VSYNC Frame synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
34 RD Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
35 WR(SPI-RS) -Write enable in MCU parallel interface.
Display data/command selection pin in 4-line serial interface.
Second Data lane in 2 data lane serial interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
36 RS(SPI-SCL) -Display data/command selection pin in parallel interface.
-This pin is used to be serial interface clock. RS=’1’: display data or parameter.
RS=’0’: command data.
-If not used, please fix this pin at IOVCC or DGND.		 I
37 CS Chip select input pin (“Low” enable).
fix this pin at IOVCC or GND when not in use.		 I
38 RESET This signal will reset the device and must be applied to properly
initialize the chip.		 I
39 IM0 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode. Fix to GND level when not in use		 I
40 IM1
41 IM2
42 NC No connection -
43 LEDA Anode pin of backlight P
44 NC No connection -
45 LEDK Cathode pin OF backlight

Note: MCU interface SET for IM PINS.



IM2IM1IM0Interface typeDB Pin in use
0 0 0 80-16bit interface DB7-DB0
0 0 1 80-8bit interface DB15-DB0
0 1 0 80-18bit interface DB8-DB0
0 1 1 80-9bit interface DB17-DB0
1 0 1 3-Wire 9bit data serial interface SDA SCL CS
1 1 0 4-Wire 8bit data serial interface SDA SCL CS RS

1. If not use PIN, fix to the GND, IOVCC or NC.
2. If use RGB mode must select serial interface.
