WFN0360MA2#0P0-FC

TFT 3.6" 280x712, Bar Type, Interface MIPI IC FL7703NI, 500cd/m², Wide view angle (IPS), No touch

DESCRIPTION

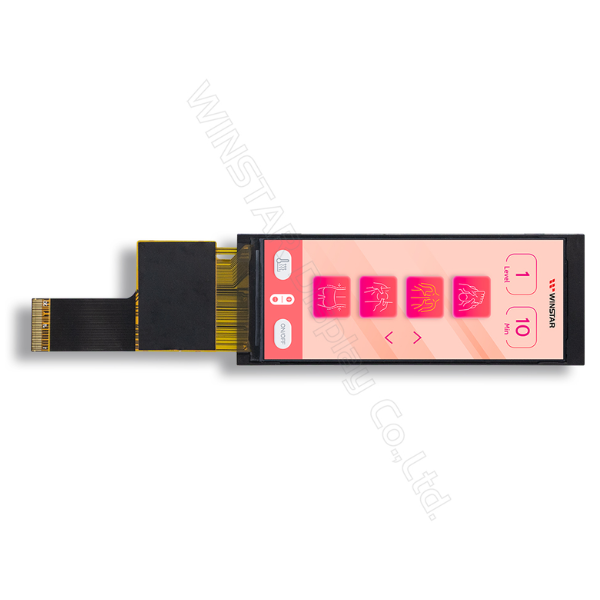

The WFN0360MA2#0P0-FC is a 3.6-inch bar type TFT-LCD display module in portrait orientation. This 3.6-inch TFT display features a 280×712 pixel resolution, IPS panel technology with 85/85/85/85 wide viewing angles, 500 cd/m² brightness, and a 1200:1 contrast ratio. It uses a 4-lane MIPI interface, anti-glare surface, and the FL7703NI driver IC (or equivalent).

With its long-format bar type design, this 3.6-inch TFT module is ideal for Pro Audio systems, 1U rackmount audio equipment, power management systems, and indoor medical devices.

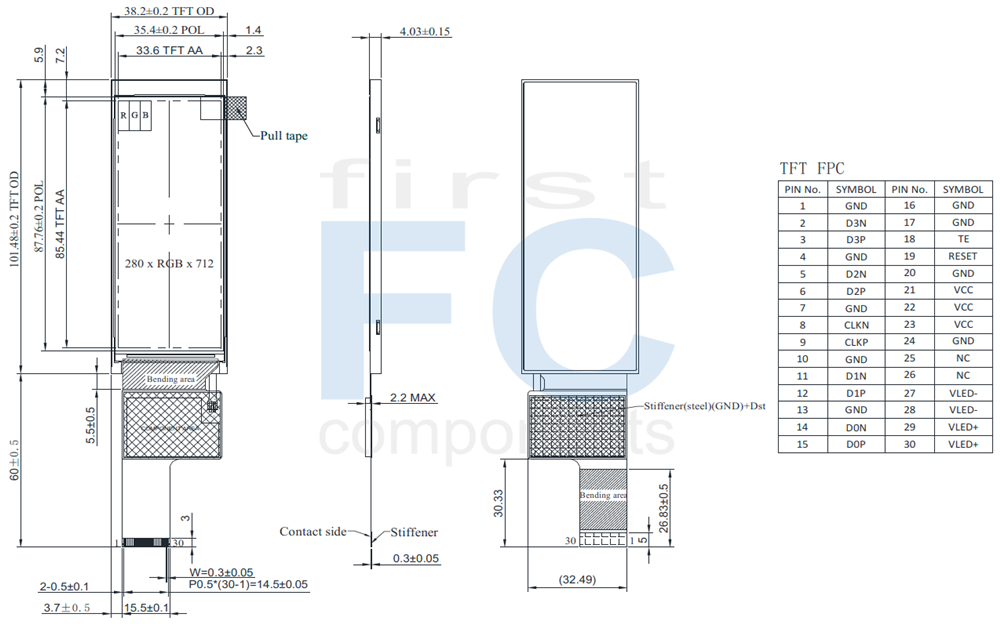

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	3.6	inch
Dot Matrix	280 x RGB x 712 (TFT)	dots
Module dimension	38.2 x 101.48 x 4.03	mm
Active area	33.6 x 85.44	mm
Pixel pitch	0.12 X 0.12	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	85/85/85/85
TFT Interface	4-Lanes MIPI
Backlight Type	LED ,Normally White
TFT Driver IC	FL7703NI or Equivalent
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

TFT LCD Module

Item	Symbol	Min	Typ	Max	Unit
Analog Supply voltage	VCC	2.5	2.8	3.3	V
Analog supply current	ICC	-	65	98.0	mA
Logic input voltage	VIH	0.7*VCC	-	VCC	V
Logic input voltage	VIL	GND	-	0.3*VCC	V

Backlight Driving Conditions

Parameter	Symbol	Min	Typ	Max	Unit
LED current	-	-	90	-	mA
LED voltage	VLED+	5.5	6.0	6.8	V
LED Life Time	-	50,000	-	-	Hr

Interface Pin Function

LCM PIN Definition

Pin No.	Symbol	Description
1	GND	Ground.
2	D3N	MIPI data input pins
3	D3P	MIPI data input pins
4	GND	Ground.
5	D2N	MIPI data input pins
6	D2P	MIPI data input pins
7	GND	Ground.
8	CLKN	MIPI clock input pins.
9	CLKP	MIPI clock input pins.
10	GND	Ground.
11	D1N	MIPI data input pins
12	D1P	MIPI data input pins
13	GND	Ground.
14	D0N	MIPI data input pins
15	D0P	MIPI data input pins
16	GND	Ground.
17	GND	Ground.
18	TE	Tearing effect output pin to synchronize to frame writing. If not used, open this pin
19	RESET	Reset signal pin
20	GND	Ground.
21-23	VCC	Power supply
24	GND	Ground.
25-26	NC	Not connect
27-28	VLED-	LED cathode
29-30	VLED+	LED anode

SKU: WFN0360MA2#0P0-FC

Brand: Winstar
