WFN0700HD6#0S0-FC

TFT 7" 800x480, HDMI Interface, High Brightness 4000cd/m², No touch (Local Dimming Backlight)

DESCRIPTION

WFN0700HD6#0S0-FC is a 7” aSi TFT Liquid Crystal Display Module with MiniLED Backlightunit and 50 pins TTL RGB interface. This MiniLED LCM is a set of displays with standardmechanical dimensions and select electrical interface requirements for an industry standard7” WVGA LCD panel and the mini LED 384 Zones local dimming driving device for Backlight.

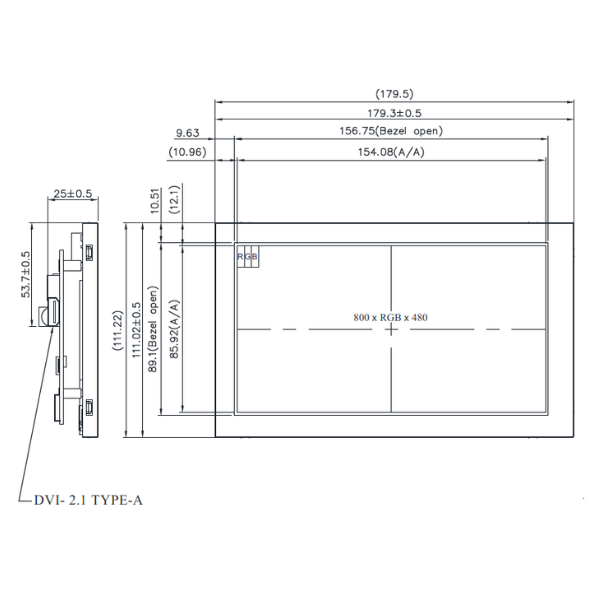

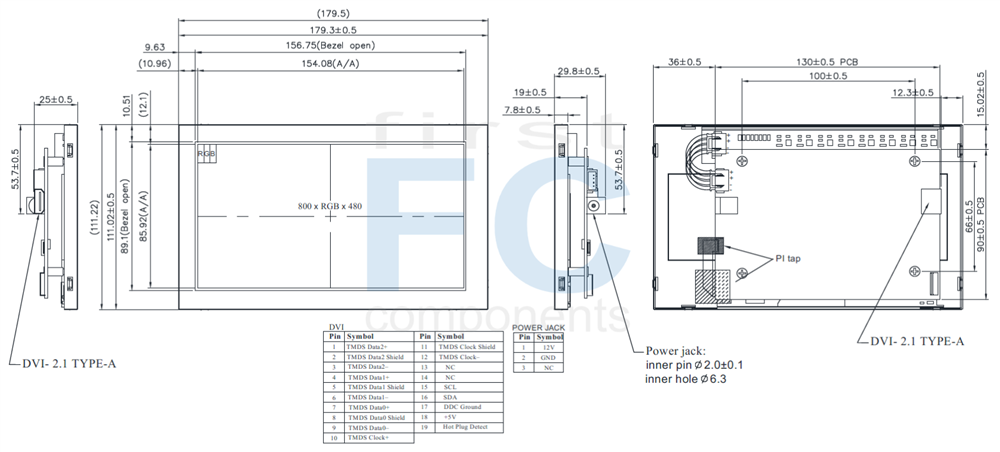

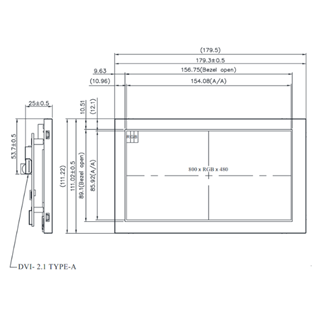

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Sieze	7.0	inch
Dot Matrix	800 x RGB x 480 (TFT)	dots
Module dimension	179.5 x 111.22 x 29.8	mm
Active Area	154.08 x 85.92	mm
Pixel pitch	0.1926 x 0.1790	mm
LCD type	TFT, Normally white, Transmissive
Viewing Angle	45/45/15/35
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
TFT Interface	HDMI (only for DVI)
Backlight Type	LED, Normally white
With/Without TP	Without TP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+75	℃

Electrical Characteristics

Item	Symbol	Value			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	Vcc	11.0	12.0	13.5	V
Power Supply Current	ILCM	1.5	1.7	2.0	A
Power Consumption	PL	16.5	20.4	27	W
LCM Lift Time	Hr	-	30,000	-	hrs

Interface

LCM PIN Definition

Pin No.	Symbol	I/O	Descrition
1	TMDS Data2+	I	TMDS differential signal 2+
2	TMDS Data2 Shield	P	Data2 shielding ground
3	TMDS Data2-	I	TMDS differential signal 2-
4	TMDS Data1+	I	TMDS differential signal 1+
5	TMDS Data1 Shiled	P	Data1 shielding ground
6	TMDS Data1-	I	TMDS differential signal 1-
7	TMDS Data0+	I	TMDS differential signal 0+
8	TMDS Data0 Shield	P	Data0 shielding ground
9	TMDS Data0-	I	TMDS differential signal 0-
10	TMDS Clock+	I	TMDS differential signal Clock+
11	TMDS Clock Shield	P	Clock shielding ground
12	TMDS Clock-	I	TMDS differential signal Clock-
13	NC	-	No connection
14	NC	-	No connection
15	SCL	I/O	I2C Clock line
16	SDA	I/O	I2C data line
17	DDC Ground	P	Data display channel Ground
18	+5V	P	HDMI +5 V
19	Hot Plug Detect	I/O	Hot plug detect

I: input, O: output, P: Power

POWER-JACK

Pin No.	Symbol	I/O	Function	Remark
1	12V	P	Power Supply (12V)	Output
2	GND	P	Ground	Input
3	NC	-	No connection	Output

SKU: WFN0700HD6#0S0-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Added Board
Added Accessory 1
Added Accessory 2

Prezzi per quantità

Quantità

10+

Prezzo

€291,50

€262,30

€246,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005
