WFN1560EA5#0SP0-FC

TFT 15.6" 1920x1080, LCD Panel, Interface eDP, High Brightness 1200cd/m², Wide View Angle (IPS), Anti-Glare, No touch

DESCRIPTION

WFN1560EA5#0SP0-FC is a 15.6”(15.6”diagonal) TFT Liquid Crystal Display module withDriver ICs and 30 pins eDP interface. This product supports 1920x 1080 FHD mode and candisplay 16.7 M colors.

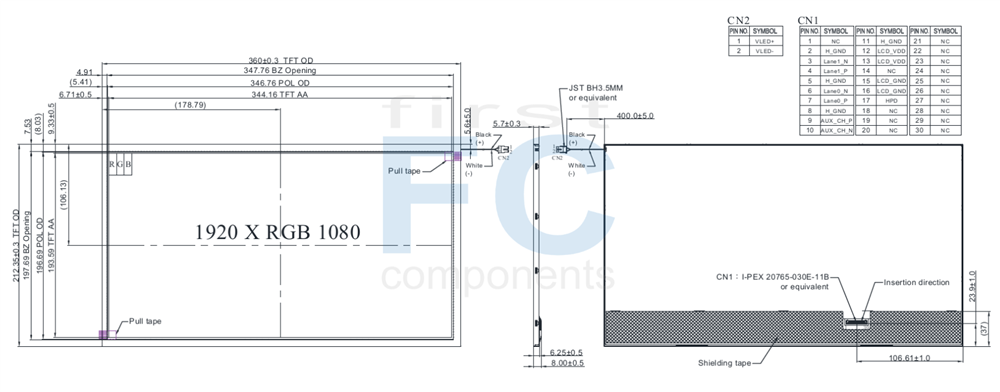

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition (CN1)

Pin No.	Signal Name	Description
1	NC	No Connection (Reserved for LCD test)
2	H_GND	High Speed Ground
3	Lane1_N	Complement Signal-Lane 1
4	Lane1_P	True Signal-Main Lane 1
5	H_GND	High Speed Ground
6	Lane0_N	Complement Signal-Lane 0
7	Lane0_P	True Signal-Main Lane 0
8	H_GND	High Speed Ground
9	AUX_CH_P	True Signal Auxiliary Channel
10	AUX_CH_N	Complement Signal-Auxiliary Channel
11	H_GND	High Speed Ground
12	LCD_VDD	Power Supply +3.3V(typical)
13	LCD_VDD	Power Supply +3.3V(typical)
14	NC	No Connection (Reserved for LCD test)
15	LCD_GND	Ground
16	LCD_GND	Ground
17	HPD	Hot Plug Detect
18-30	NC	Not Connection

Backlight PIN Definition (CN2)

Pin No.	Symbol	Description
1	VLED+	Black, LED_Anode
2	VLED-	White, LED_Cathode

General Specifications

Item	Dimension	Unit
Size	15.6	inch
Dot Matrix	1920 x RGB x 1080	dots
Module dimension	360.0(W) x 212.35(H) x 8.0(D)	mm
Active area	344.16 x 193.59	mm
Pixel pitch	0.17925 (H) x 0.17925 (V)	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Backlight Type	LED, Normally White
TFT Driver IC	TC2065G3PUR09UT-A2-I or Equivalent
TFT Interface	eDP 1.2
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Parameter		Symbol	Min.	Typ.	Max.	Units
Supply Voltage For LCM		LCD_VDD	3.0	3.3	3.6	V
Ripple Voltage		V_RP	-	50	150	mV
Inrush Current		I_RUSH	0	-	1.5	A
LCD_VDD Current		IDD	-	250	350	mA
LCD_VDD Current		IDDMAX	-	-	400	mA
HDP Pull-Low Resistance		R_HDP	30K	-	100K	ohm
HPD	High Level	VH_HDP	2.25	-	2.75	V
HPD	Low Level	VL_HDP	0	-	0.4	V
