DESCRIPTION
Winstar WG12864A is a monochrome graphic LCD 128x64 module. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. This WG12864A graphic Display LCD 128x64 module is 5V power supply. There are two derivative versions of WG12864A; they are WG12864AB for negative voltage 3.3V power supply and WG12864A1 for double-row pinout interface.

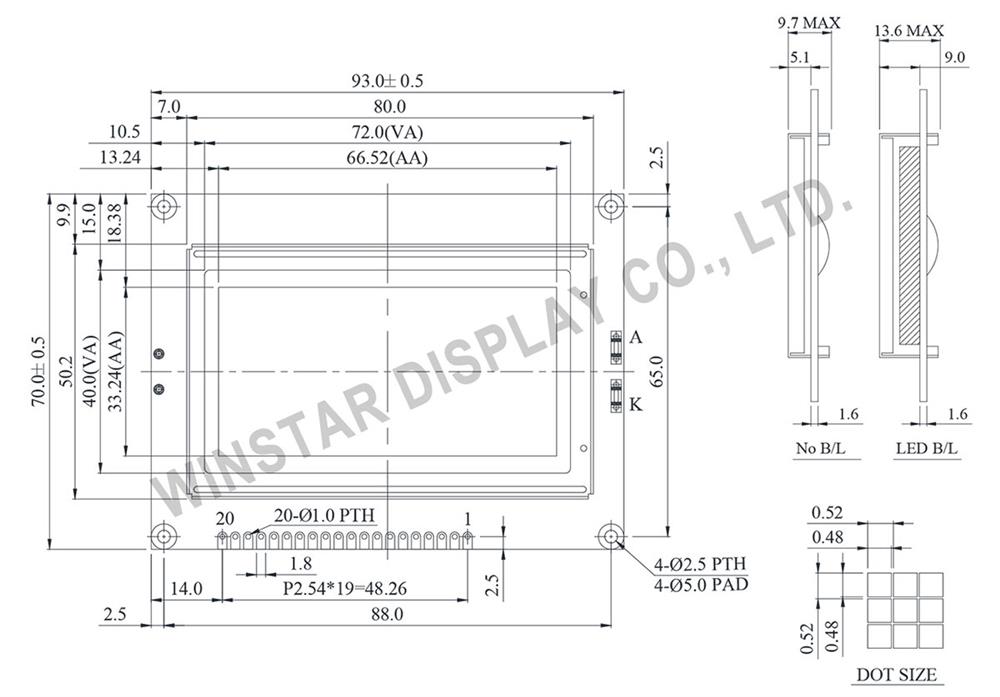

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
| 1 |
VSS |
Ground |
| 2 |
VDD |
Power supply for logic |
| 3 |
VO |
Contrast Adjustment |
| 4 |
D/I |
Data/ Instruction select signal |
| 5 |
R/W |
Read/Write select signal |
| 6 |
E |
Enable signal |
| 7~14 |
DB0~DB7 |
Data bus line |
| 15 |
CS1 |
Select Column 1~ Column 64 |
| 16 |
CS2 |
Select Column 65~ Column 128 |
| 17 |
/RES |
Controller reset signal, Active Low |
| 18 |
VEE |
Negative Voltage Output |
| 19 |
A |
Power supply for B/L + |
| 20 |
K |
Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
| Module Dimension |
93.0 × 70.0 |
mm |
| Viewing Area |
72.0 × 40.0 |
mm |
| Mounting Hole |
88.0 × 65.0 |
mm |
| Dot Pitch |
0.52 × 0.52 |
mm |
| Dot Size |
0.48 × 0.48 |
mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. | Unit |
| Input Voltage |
VDD |
5.0 |
V |
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO |
8.90 |
V |
Specifiche di prodotto
|
Size
|
2.9" |
|
Resolution
|
128x64 |
|
Active Area (mm)
|
66.52x33.24 |
|
Dot Size
|
0.48x0.48 |
|
B/L color, LCD type
|
B/L white, STN blue neg |
|
Power supply
|
5V |
|
Display Interface
|
6800 |
|
Display IC
|
NT7107T+NT7108T |
|
Constructive Structure
|
COB |
|
View Angle
|
6H |
|
Frame
|
Yes |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
Soldering PAD |
|
Pin Nr.
|
20 |
|
Pin Pitch
|
2.54mm |
|
Preferred - Not Preferred
|
Preferred |
