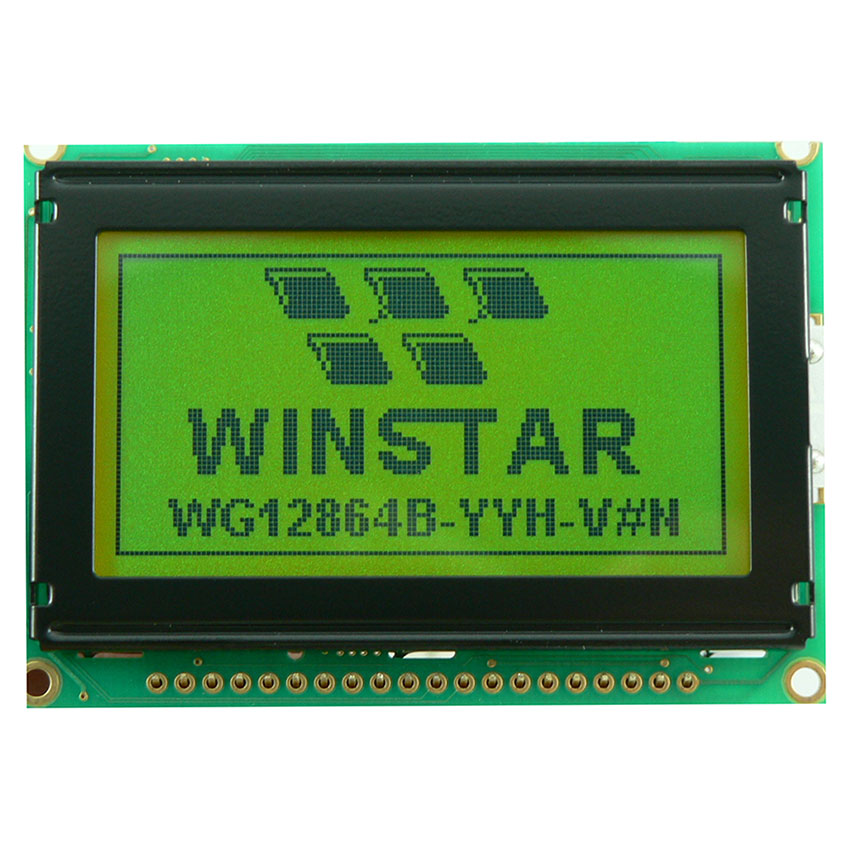

WG12864B-YYH-N#N

Graphic LCD 2.4'' 128x64, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, 6 O'clock, No VNEG

DESCRIPTION



WG12864B is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864B 128x64 LCD module is 5V power supply.  If you need negative voltage 3.3V power supply, please choose WG12864BP1.  This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

128x64 Graphic LCD Display, 128x64 LCD Module - WG12864B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4~11 DB0~DB7 Data bus line
12 CS1 Select Column 1~ Column 64
13 CS2 Select Column 65~ Column 128
14 /RST Controller reset signal, Active Low
15 R/W Read/Write select signal
16 D/I Data/ Instruction select signal
17 E Enable signal
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 75.0 × 52.7 mm
Viewing Area 58.8 × 31.4 mm
Mounting Hole 70.0 × 49.7 mm
Dot Pitch 0.43 × 0.43 mm
Dot Size 0.40 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.0 V


SKU: WG12864B-YYH-N#N
Brand: Winstar
Disponibile: No
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€13,70
€10,00
€8,10
€7,80

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€13,70 IVA esclusa

DESCRIPTION



WG12864B is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  This WG12864B 128x64 LCD module is 5V power supply.  If you need negative voltage 3.3V power supply, please choose WG12864BP1.  This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

128x64 Graphic LCD Display, 128x64 LCD Module - WG12864B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4~11 DB0~DB7 Data bus line
12 CS1 Select Column 1~ Column 64
13 CS2 Select Column 65~ Column 128
14 /RST Controller reset signal, Active Low
15 R/W Read/Write select signal
16 D/I Data/ Instruction select signal
17 E Enable signal
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 75.0 × 52.7 mm
Viewing Area 58.8 × 31.4 mm
Mounting Hole 70.0 × 49.7 mm
Dot Pitch 0.43 × 0.43 mm
Dot Size 0.40 × 0.40 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.0 V


Specifiche di prodotto
Brand Winstar
Size 2.4"
Risoluzione 128x64
Area Attiva (mm) 55.01x27.49
Dot Size 0.40x0.40
Colore B/L, Tipo LCD B/L yellow/green, STN yellow/green pos
Alimentazione 5V
Interfaccia Display 6800
IC Controller Display NT7107, NT7108
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
