WG12864C-TGH-V#N

Graphic LCD 2.7'' 128x64, B/L white, STN gay pos, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION

WG12864C is a mono LCD graphic display 128x64 dot matrix module, diagonal size 2.7 inch.  WG12864C model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864C LCD display is 5V power supply; it’s also negative voltage 3.3V power supply optional.  This graphic display 128x64 module is available for without backlight or with LED backlight options. WG12864C is available in various LED colors including yellow/green, blue, white, red, and RGB, etc.  This model graphic LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

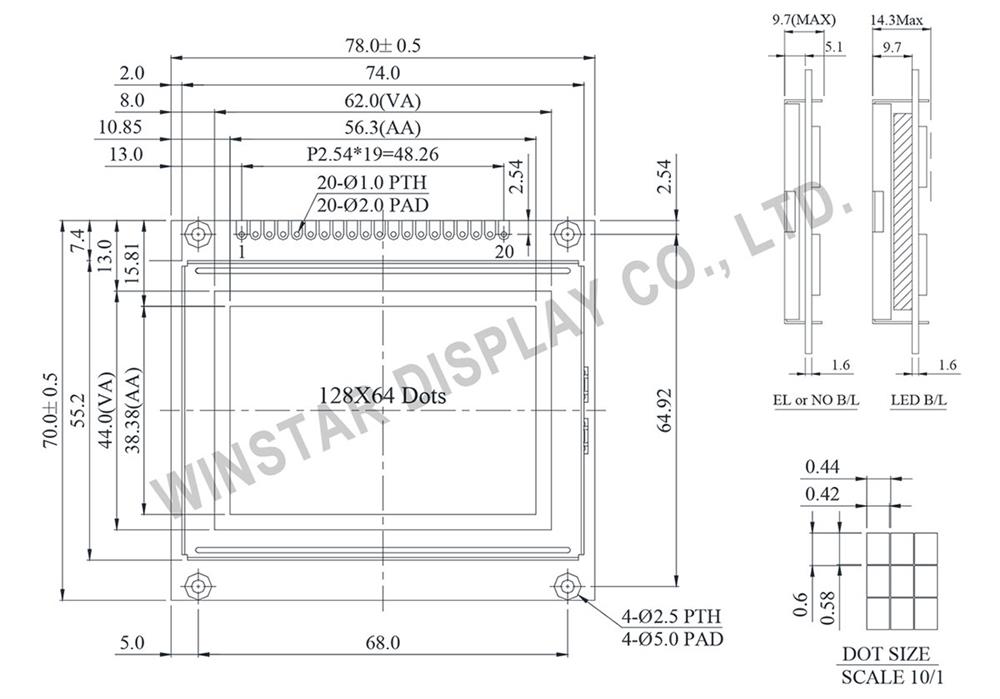

DRAWING

LCD Graphic Display 128x64, LCD Display 128x64 WG12864C



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 /CS1 Select Column 1~ Column 64
2 /CS2 Select Column 65~ Column 128
3 VSS Ground
4 VDD Power supply for logic
5 VO Contrast Adjustment
6 D/I Data/ Instruction select signal
7 R/W Read/Write select signal
8 E Enable signal
9~16 DB0~DB7 Data bus line
17 RST Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 78.0 ×70.0 mm
Viewing Area 62.0 × 44.0 mm
Mounting Hole 68.0 ×64.92 mm
Dot Pitch 0.44 ×0.60 mm
Dot Size 0.42 × 0.58 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.50 V


SKU: WG12864C-TGH-V#N
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€16,80
€12,30
€11,90
€11,50

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€16,80 IVA esclusa

DESCRIPTION

WG12864C is a mono LCD graphic display 128x64 dot matrix module, diagonal size 2.7 inch.  WG12864C model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864C LCD display is 5V power supply; it’s also negative voltage 3.3V power supply optional.  This graphic display 128x64 module is available for without backlight or with LED backlight options. WG12864C is available in various LED colors including yellow/green, blue, white, red, and RGB, etc.  This model graphic LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

LCD Graphic Display 128x64, LCD Display 128x64 WG12864C



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 /CS1 Select Column 1~ Column 64
2 /CS2 Select Column 65~ Column 128
3 VSS Ground
4 VDD Power supply for logic
5 VO Contrast Adjustment
6 D/I Data/ Instruction select signal
7 R/W Read/Write select signal
8 E Enable signal
9~16 DB0~DB7 Data bus line
17 RST Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 78.0 ×70.0 mm
Viewing Area 62.0 × 44.0 mm
Mounting Hole 68.0 ×64.92 mm
Dot Pitch 0.44 ×0.60 mm
Dot Size 0.42 × 0.58 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.50 V


Specifiche di prodotto
Brand Winstar
Size 2.7"
Risoluzione 128x64
Area Attiva (mm) 56.30x38.38
Dot Size 0.42x0.58
Colore B/L, Tipo LCD B/L white, STN gray pos
Alimentazione 5V
Interfaccia Display 6800
IC Controller Display NT7107, NT7108
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
