WG14432B5-TFH-V#T

Graphic LCD 2.4'' 144x32, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800/SPI, 6 O'clock, VNEG

DESCRIPTION

WG14432B is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC. WG14432B is having the same mechanical size as Character WH1602B. This WG14432B module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional. This 144x32 graphic LCD display supports Traditional Chinese Font and Simplified Chinese Font. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

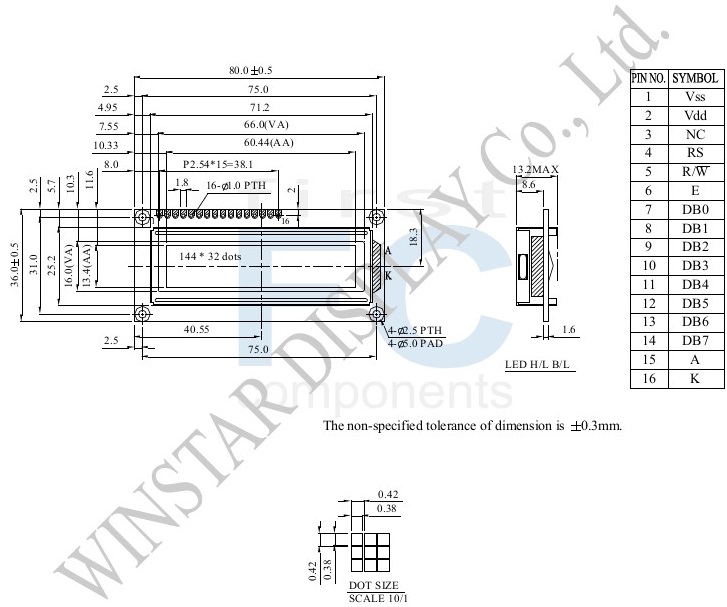

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	V_O	Contrast Adjustment
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 36.0	mm
Viewing Area	66.0 × 16.0	mm
Mounting Hole	75.0 × 31.0	mm
Dot Pitch	0.42 × 0.42	mm
Dot Size	0.38 × 0.38	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.30	V

SKU: WG14432B5-TFH-V#T

Brand: Winstar

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

Prezzo

€18,90

€13,80

€13,30

€12,90

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€18,90 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	V_O	Contrast Adjustment
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 36.0	mm
Viewing Area	66.0 × 16.0	mm
Mounting Hole	75.0 × 31.0	mm
Dot Pitch	0.42 × 0.42	mm
Dot Size	0.38 × 0.38	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.30	V

Specifiche di prodotto

Brand	Winstar
Size	2.4"
Risoluzione	144x32
Area Attiva (mm)	60.44x13.44
Dot Size	0.38x0.38
Colore B/L, Tipo LCD	B/L white, FSTN white pos
Alimentazione	5V
Interfaccia Display	6800/SPI
Display IC	ST7920
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	16
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred

Download

Esegui il Login o Registrati per poter visualizzare PDF.

Nome completo

La tua email

Richiesta

Specifiche di prodotto

Brand	Winstar
Size	2.4"
Risoluzione	144x32
Area Attiva (mm)	60.44x13.44
Dot Size	0.38x0.38
Colore B/L, Tipo LCD	B/L white, FSTN white pos
Alimentazione	5V
Interfaccia Display	6800/SPI
Display IC	ST7920
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	16
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred
