WG160128C-TFH-VZ#

Graphic LCD 4.8'' 160x128, B/L white, FSTN white pos, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

WG160128C is a monochrome graphic 160x128 LCD module which is having the module dimension of 150x111 mm and AA size of 95.96x75.76 mm. This WG160128C model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This 160x128 lcd display is available for graphic mode or Character Generator mode (Character font) optional.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


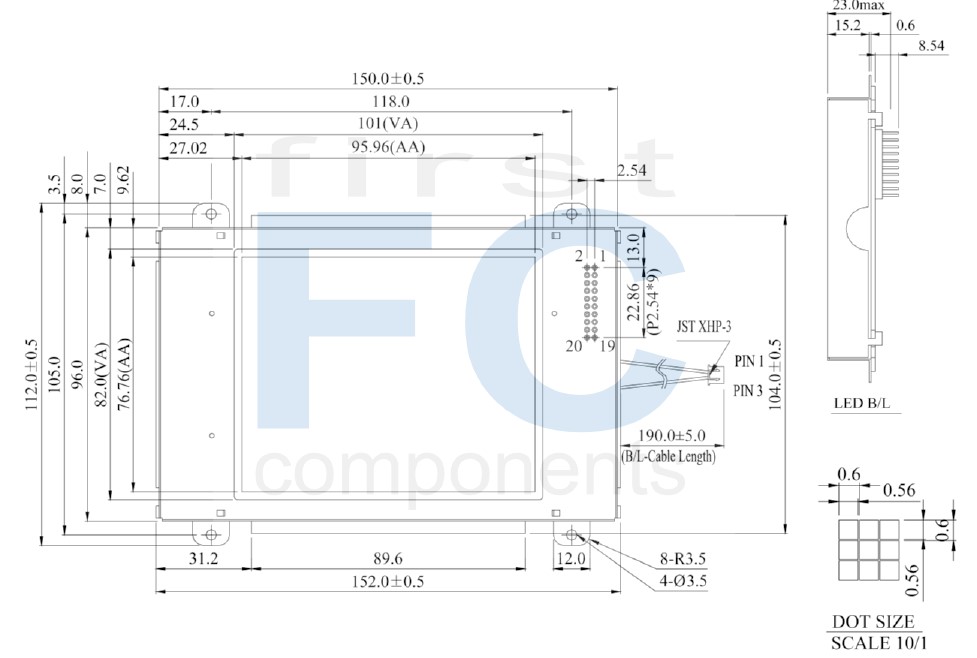

DRAWING

Winstar 160x128 LCD Display Graphic - WG160128C

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 Vss Ground
3 Vdd Power supply for logic
4 Vo Contrast Adjustment
5 Vee Negative Voltage Output
6 /WR Data write. Write data into LCD Controller
7 /RD Data read. Read data from LCD Controller
8 /CE Enable signal
9 C/D Data/ Instruction select signal
10 /HALT Clock operating stop signal
11 /RESET Controller reset signal, Active Low
12~19 DB0~DB7 Data bus line
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 150.0 x 112.0 mm
Viewing Area 101.0 x 82.0 mm
Mounting Hole 118.0 x 105.0 mm
Dot Pitch 0.60 x 0.60 mm
Dot Size 0.56 x 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.95 V


SKU: WG160128C-TFH-VZ#
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€52,80
€46,60
€45,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€52,80 IVA esclusa

DESCRIPTION

WG160128C is a monochrome graphic 160x128 LCD module which is having the module dimension of 150x111 mm and AA size of 95.96x75.76 mm. This WG160128C model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This 160x128 lcd display is available for graphic mode or Character Generator mode (Character font) optional.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar 160x128 LCD Display Graphic - WG160128C

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FG Frame ground
2 Vss Ground
3 Vdd Power supply for logic
4 Vo Contrast Adjustment
5 Vee Negative Voltage Output
6 /WR Data write. Write data into LCD Controller
7 /RD Data read. Read data from LCD Controller
8 /CE Enable signal
9 C/D Data/ Instruction select signal
10 /HALT Clock operating stop signal
11 /RESET Controller reset signal, Active Low
12~19 DB0~DB7 Data bus line
20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 150.0 x 112.0 mm
Viewing Area 101.0 x 82.0 mm
Mounting Hole 118.0 x 105.0 mm
Dot Pitch 0.60 x 0.60 mm
Dot Size 0.56 x 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.95 V


Specifiche di prodotto
Brand Winstar
Size 4.8"
Risoluzione 160x128
Area Attiva (mm) 95.96x76.76
Dot Size 0.56x0.56
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia 8080
Controllore a Bordo RA6963
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 4.8"
Risoluzione 160x128
Area Attiva (mm) 95.96x76.76
Dot Size 0.56x0.56
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia 8080
Controllore a Bordo RA6963
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
