WG160160A-TFH-VZ#

Graphic LCD 3.38'' 160x160, B/L white, FSTN white pos, COB, 5V, No controller, 6 O'clock, VNEG

DESCRIPTION

WG160160A is a monochrome graphic 160x160 LCD module which is having the module dimension of 89.28x85 mm and AA size of 60.76x60.76 mm. This WG160160A model is without controller on module. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

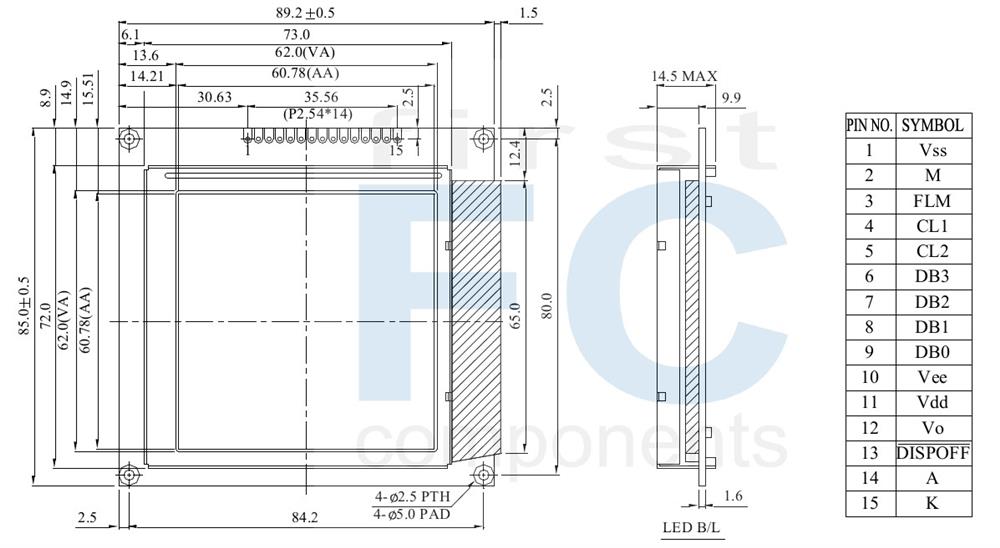

DRAWING

160x160 LCD, Graphic Module LCD 160x160 - WG160160A - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 M Frame reverse signal(alternate signal)
3 FLM Scan start-up signal
4 CL1 Data latch pulse
5 CL2 Data shift pulse
6~9 DB3~DB0 Data bus line
10 VEE Negative Voltage Output
11 VDD Power supply for logic
12 VO Contrast Adjustment
13 DISP OFF Display off H:ON L:OFF
14 A Power supply for B/L +
15 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.2 × 85.0 mm
Viewing Area 62.0 × 62.0 mm
Mounting Hole 84.2 × 80.0 mm
Dot Pitch 0.38 × 0.38 mm
Dot Size 0.36 × 0.36 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.75 V


SKU: WG160160A-TFH-VZ#
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€35,40
€28,30
€27,30

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€35,40 IVA esclusa

DESCRIPTION

WG160160A is a monochrome graphic 160x160 LCD module which is having the module dimension of 89.28x85 mm and AA size of 60.76x60.76 mm. This WG160160A model is without controller on module. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


DRAWING

160x160 LCD, Graphic Module LCD 160x160 - WG160160A - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 M Frame reverse signal(alternate signal)
3 FLM Scan start-up signal
4 CL1 Data latch pulse
5 CL2 Data shift pulse
6~9 DB3~DB0 Data bus line
10 VEE Negative Voltage Output
11 VDD Power supply for logic
12 VO Contrast Adjustment
13 DISP OFF Display off H:ON L:OFF
14 A Power supply for B/L +
15 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.2 × 85.0 mm
Viewing Area 62.0 × 62.0 mm
Mounting Hole 84.2 × 80.0 mm
Dot Pitch 0.38 × 0.38 mm
Dot Size 0.36 × 0.36 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.75 V


Specifiche di prodotto
Brand Winstar
Size 3.38"
Risoluzione 160x160
Area Attiva (mm) 60.78x60.78
Dot Size 0.36x0.36
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia Display No controller
IC Controller Display X
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 15
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 3.38"
Risoluzione 160x160
Area Attiva (mm) 60.78x60.78
Dot Size 0.36x0.36
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia Display No controller
IC Controller Display X
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 15
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
