WG16032A-TFH-V#A

Graphic LCD 2.87'' 160x32, B/L white, FSTN white pos, COB, 5V, Interface 6800, 6 O'clock, VNEG

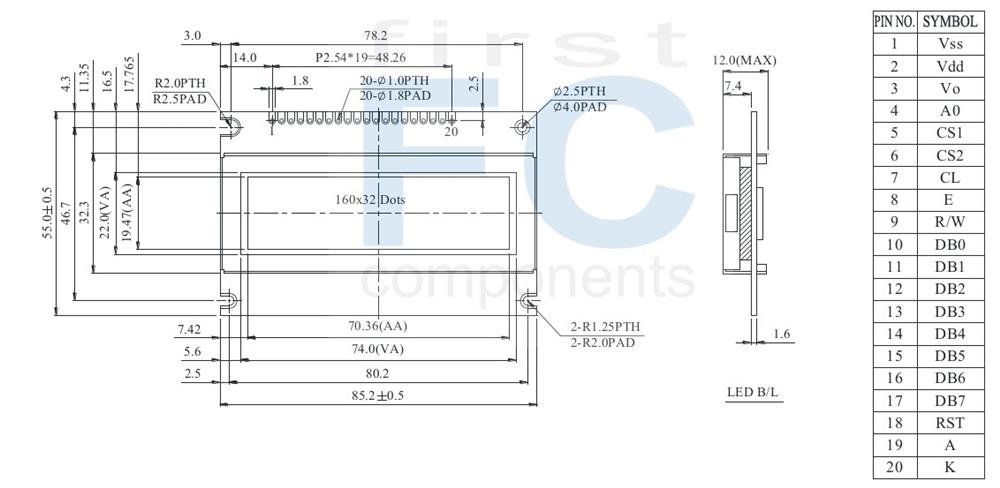

DRAWING

Winstar 160x32 Liquid Crystal Display - WG16032A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 CS1 Cs1=0 cs2=0 chip select signal for s1~s61
Cs1=0 cs2=1 chip select signal for s62~s141
6 CS2 Cs1=1 cs2=0 chip select signal for s142~s168
7 CL External clock 2KHZ
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 RST Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.2 × 55.0 mm
Viewing Area 74.0 × 22.0 mm
Mounting Hole 80.2 × 46.7 mm
Dot Pitch 0.44 × 0.61 mm
Dot Size 0.40 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO --- V


SKU: WG16032A-TFH-V#A
Brand: Winstar
Disponibile: Si
Prezzi per quantità
Quantità
1+
5+
10+
50+
100+
Prezzo
€21,50
€15,80
€12,80
€11,70
€11,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€21,50 IVA esclusa

DRAWING

Winstar 160x32 Liquid Crystal Display - WG16032A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction select signal
5 CS1 Cs1=0 cs2=0 chip select signal for s1~s61
Cs1=0 cs2=1 chip select signal for s62~s141
6 CS2 Cs1=1 cs2=0 chip select signal for s142~s168
7 CL External clock 2KHZ
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 RST Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.2 × 55.0 mm
Viewing Area 74.0 × 22.0 mm
Mounting Hole 80.2 × 46.7 mm
Dot Pitch 0.44 × 0.61 mm
Dot Size 0.40 × 0.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO --- V


Specifiche di prodotto
Brand Winstar
Size 2.87"
Risoluzione 160x32
Area Attiva (mm) 70.36x19.47
Dot Size 0.40x0.56
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia 6800
Controllore a Bordo SBN1661G
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.87"
Risoluzione 160x32
Area Attiva (mm) 70.36x19.47
Dot Size 0.40x0.56
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia 6800
Controllore a Bordo SBN1661G
Struttura COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
