WG240128A1-TFH-VZ#

Immagine di WG240128A1-TFH-VZ# Immagine di WG240128A1-TFH-VZ#
Graphic LCD 5.4" 240x128, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, VNEG (Optimized Frame)

DESCRIPTION

WG240128A1-TFH-VZ# is a 240x128 graphic LCD module with a module dimension of 170x103.5 mm, an active area of 119x63.97 mm, and a diagonal size of 5.35 inches. This module is built with the RA6963 controller and has a built-in negative voltage output. It supports an 8080 8-bit parallel interface, a 5V power supply, and an optional 3.3V version. A touch panel is also available as an option for the  WG240128A1-TFH-VZ#. Please note that the standard  WG240128A1-TFH-VZ# comes with a 20-pin connector, and a 24-pin option is also available. This graphic LCD is suitable for many applications, including white goods, POS systems, home appliances, industrial instruments, automation, audio display systems, and medical devices.

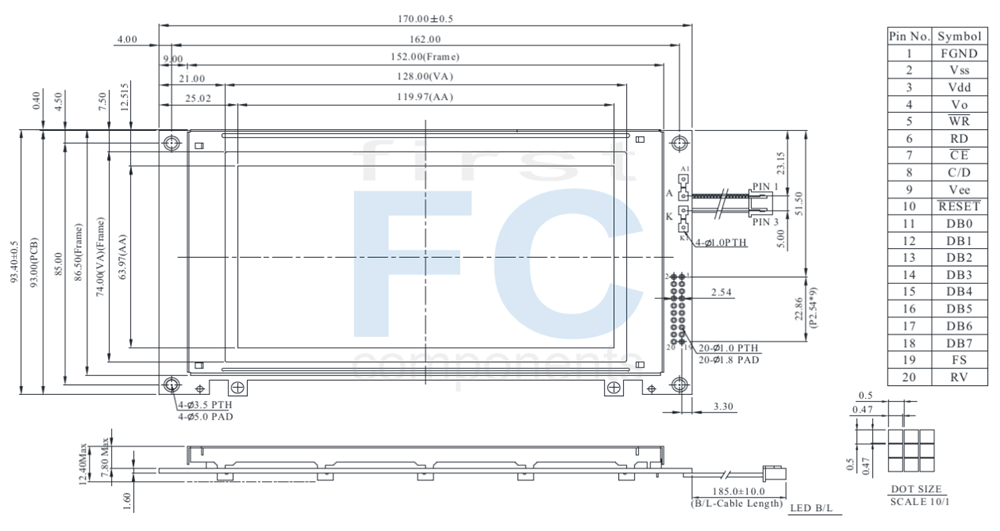

DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Number of dots 240 x 128 －
Module dimension 170.0 x 93.4 x 12.4(Max) mm
View area 128.0 x 74.0 mm
Active area 119.97 x 63.97 mm
Dot size 0.47 x 0.47 mm
Dot pitch 0.50 x 0.50 mm
Duty 1/128
Backlight Type LED
IC RA6963
Interface 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VIN -0.3 － VDD+0.3 V
Supply Voltage For Logic VDD-VSS -0.3 － +7.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.5 5.0 5.5 V
Supply Voltage For LCD VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃		 －
17.5
16.3		 －
18.0
－		 20.1
18.5
－		 V
V
V
Input High Volt. VIH － 0.8VDD － VDD V
Input Low Volt. VIL － 0 － 0.15VDD V
Output High Volt. VOH － VDD-0.3 － VDD V
Output Low Volt. VOL － 0 － 0.3 V
Supply Current IDD － － 33 60 mA



Interface Pin Function

Pin No.SymbolDescription
1 FGND Frame ground ( Connected to bezel )
2 Vss GND
3 Vdd Power supply
4 Vo Power supply for LCD driver
5 /WR Data write. Write data into RA6963when WR = L
6 RD Data read. Read data from RA6963when RD = L
7 /CE L : Chip enable
8 C/D WR=L , C/D=H : Command Write  C/D=L: Data write
RD=L , C/D=H : Status Read  C/D=L: Data read
9 Vee Negative Voltage Output
10 /RESET H : Normal ; L : Initialize RA6963
11 DB0 Data bus line
12 DB1 Data bus line
13 DB2 Data bus line
14 DB3 Data bus line
15 DB4 Data bus line
16 DB5 Data bus line
17 DB6 Data bus line
18 DB7 Data bus line
19 FS Pins for selection of font; H : 6 * 8 , L : 8 * 8
20 RV H: Reverse   L: Normal

SKU: WG240128A1-TFH-VZ#
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€68,80
€61,90
€58,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€68,80 IVA esclusa

DESCRIPTION

WG240128A1-TFH-VZ# is a 240x128 graphic LCD module with a module dimension of 170x103.5 mm, an active area of 119x63.97 mm, and a diagonal size of 5.35 inches. This module is built with the RA6963 controller and has a built-in negative voltage output. It supports an 8080 8-bit parallel interface, a 5V power supply, and an optional 3.3V version. A touch panel is also available as an option for the  WG240128A1-TFH-VZ#. Please note that the standard  WG240128A1-TFH-VZ# comes with a 20-pin connector, and a 24-pin option is also available. This graphic LCD is suitable for many applications, including white goods, POS systems, home appliances, industrial instruments, automation, audio display systems, and medical devices.


DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Number of dots 240 x 128 －
Module dimension 170.0 x 93.4 x 12.4(Max) mm
View area 128.0 x 74.0 mm
Active area 119.97 x 63.97 mm
Dot size 0.47 x 0.47 mm
Dot pitch 0.50 x 0.50 mm
Duty 1/128
Backlight Type LED
IC RA6963
Interface 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VIN -0.3 － VDD+0.3 V
Supply Voltage For Logic VDD-VSS -0.3 － +7.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.5 5.0 5.5 V
Supply Voltage For LCD VDD-V0 Ta=-20℃
Ta=25℃
Ta=70℃		 －
17.5
16.3		 －
18.0
－		 20.1
18.5
－		 V
V
V
Input High Volt. VIH － 0.8VDD － VDD V
Input Low Volt. VIL － 0 － 0.15VDD V
Output High Volt. VOH － VDD-0.3 － VDD V
Output Low Volt. VOL － 0 － 0.3 V
Supply Current IDD － － 33 60 mA



Interface Pin Function

Pin No.SymbolDescription
1 FGND Frame ground ( Connected to bezel )
2 Vss GND
3 Vdd Power supply
4 Vo Power supply for LCD driver
5 /WR Data write. Write data into RA6963when WR = L
6 RD Data read. Read data from RA6963when RD = L
7 /CE L : Chip enable
8 C/D WR=L , C/D=H : Command Write  C/D=L: Data write
RD=L , C/D=H : Status Read  C/D=L: Data read
9 Vee Negative Voltage Output
10 /RESET H : Normal ; L : Initialize RA6963
11 DB0 Data bus line
12 DB1 Data bus line
13 DB2 Data bus line
14 DB3 Data bus line
15 DB4 Data bus line
16 DB5 Data bus line
17 DB6 Data bus line
18 DB7 Data bus line
19 FS Pins for selection of font; H : 6 * 8 , L : 8 * 8
20 RV H: Reverse   L: Normal

Specifiche di prodotto
Brand Winstar
Size 5.4"
Risoluzione 240x128
Area Attiva (mm) 119.97x63.97
Dot Size 0.47x0.47
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia Display 8080
Display IC RA6963
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
