WG240128E-TFH-VZ#

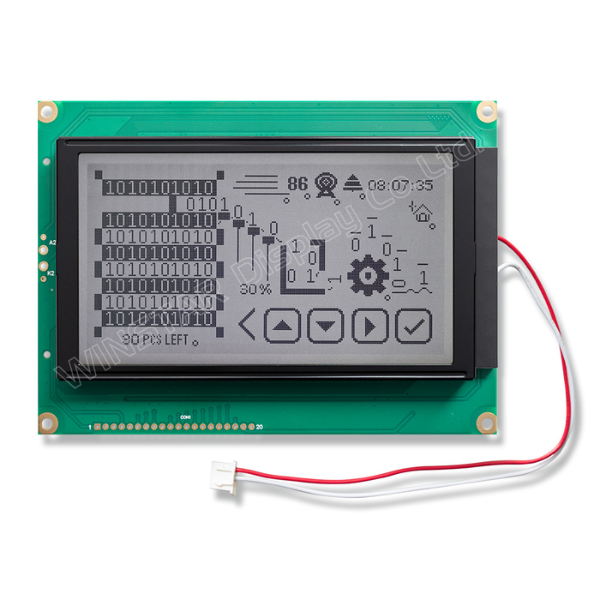

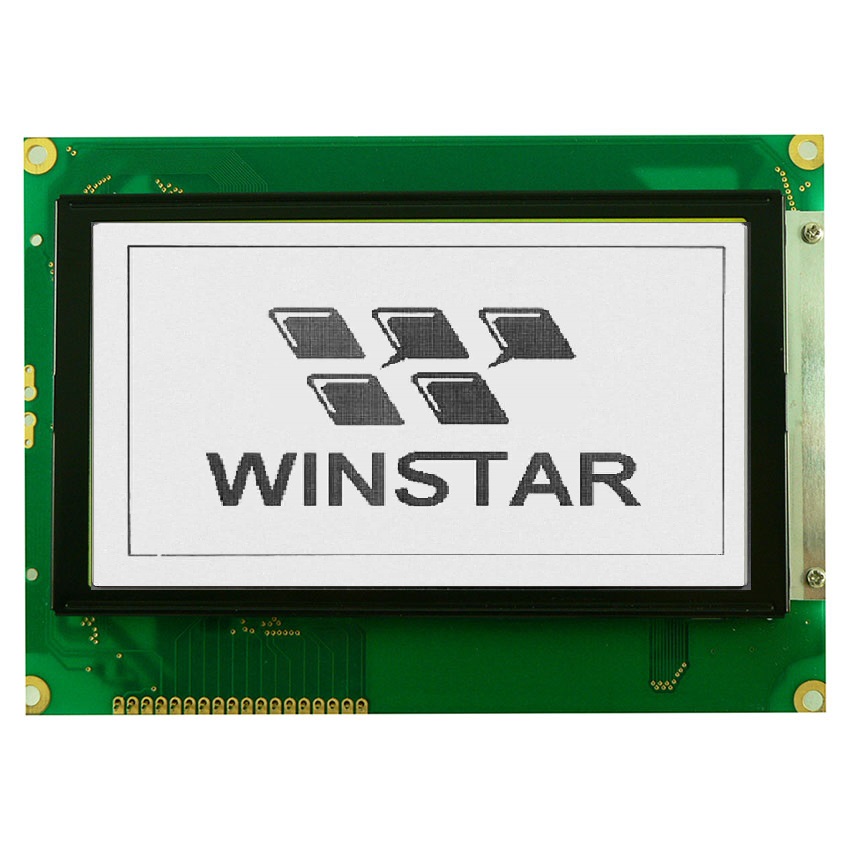

Graphic LCD 4.8" 240x128, B/L white (LED), FSTN white pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, VNEG (20pin version)

DESCRIPTION

WG240128E-TFH-VZ# is a graphic LCD 240x128 module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.82 inch. This 240128 display LCD modules is built in with RA6963 controller and negative voltage output built in on module. It supports 8080 8-bit parallel interface and 5V power supply, this module is temperature compensation optional, and touch panel optional as well.

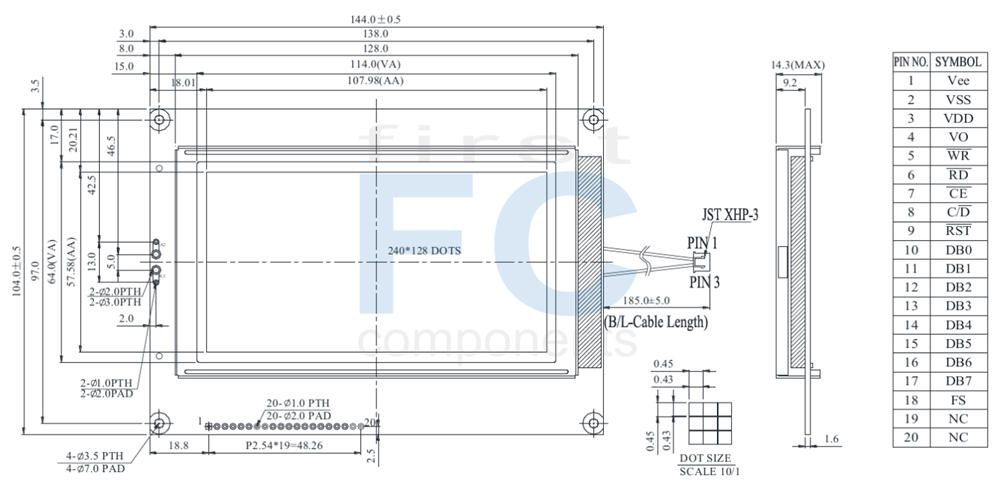

DRAWING

SPECIFICATIONS

General Specification

Item	Dimension	Unit
Number of dots	240 x 128	－
Module dimension	144.0 x 104.0 x 14.3(MAX)	mm
View area	114.0 x 64.0	mm
Active area	107.98 x 57.58	mm
Dot size	0.43 x 0.43	mm
Dot pitch	0.45 x 0.45	mm
LCD type	FSTN Positive Transflective (In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.)
Duty	1/128
View direction	6 o'clock
Backlight Type	LED, White
IC	RA6963
Interface	80 series

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	T_OP	-20	-	+70	℃
Storage Temperature	T_ST	-30	-	+80	℃
Input voltage	V_IN	-0.3	-	V_DD+0.3	V
Supply Voltage For Logic	V_DD-V_SS	-0.3	-	+7.0	V

Electrical Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage For Logic	V_DD-V_SS	-	4.5	5.0	5.5	V
Supply Voltage For LCD *Note	V_DD-V₀	Ta=-20℃ Ta=25℃ Ta=70℃	－ 18.9 17.6	－ 19.5 －	21.7 20.1 －	V V V
Input High Volt.	V_IH	-	0.8VDD	-	V_DD	V
Input Low Volt.	V_IL	-	0	-	0.15 V_DD	V
Output High Volt.	V_OH	-	V_DD-0.3	-	V_DD	V
Output Low Volt.	V_OL	-	0	-	0.3	V
Supply Current	I_DD	-	45	55	60	mA

*Note: Please design the VOP adjustment circuit on customer's main board

Interface Pin Function

Pin No.	Symbol	Level	Function
1	Vee	-	Negative Voltage Output
2	Vss	-	GND
3	Vdd	-	Power supply
4	Vo	-	Power supply for LCD driver
5	/WR	L	Data write. Write data into RA6963when WR = L
6	/RD	L	Data read. Read data from RA6963when RD = L
7	/CE	L	L : Chip enable
8	C/D	H / L	WR=L , C/D=H : Command Write C/D=L: Data write RD=L , C/D=H : Status Read C/D=L: Data read
9	RST	-	Display Data signal
10	DB0	H / L	Data bus line
11	DB1	H / L	Data bus line
12	DB2	H / L	Data bus line
13	DB3	H / L	Data bus line
14	DB4	H / L	Data bus line
15	DB5	H / L	Data bus line
16	DB6	H / L	Data bus line
17	DB7	H / L	Data bus line
18	FS	-	Pins for selection of font; H : 6 * 8 , L : 8 * 8
19	NC	-	No connection
20	NC	-	No connection

SKU: WG240128E-TFH-VZ#

Brand: Winstar

Disponibile: Si
